10 Slots D Battery Holder

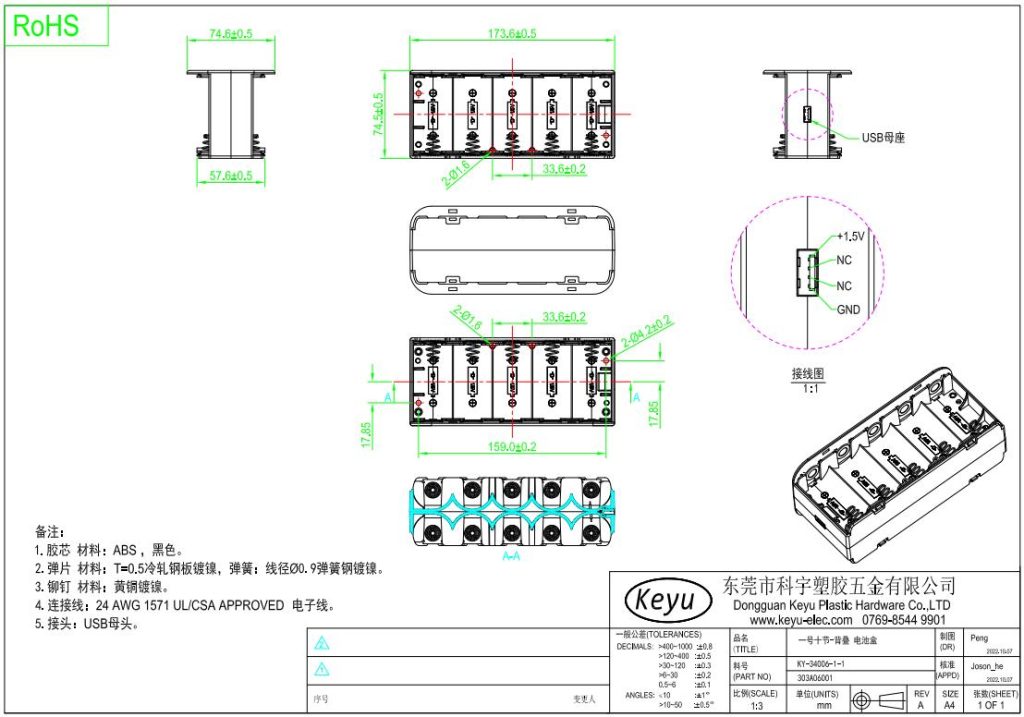

Specifications of 10 Slots D Battery Holder

Application Fields of 10 Slots D Battery Holder

1. Household Appliances: Due to their large capacity and durability, 10 slots D battery holders are often used in high-energy-consumption household appliances such as gas stoves and water heaters, which require stable and long-lasting power supply to ensure normal operation.
2. Commercial Equipment: In commercial settings such as supermarkets and restaurants, 10 slots D battery holders are also frequently used in various electronic devices such as electronic scales and cash registers to ensure their continuous and stable operation.
3. Outdoor Exploration and Emergency Equipment: Because of their high energy density and long lifespan, 10 slots D battery holders are ideal choices for outdoor exploration and emergency equipment such as flashlights and portable radios, providing reliable power support for outdoor activities and emergencies.
4. Industrial Equipment: In the industrial field, 10 slots D battery holders are widely used in various sensors, remote controls, and other industrial control equipment to ensure the continuity and stability of industrial production.
5.  Security equipment: such as smoke alarms and access control systems also require stable power supply, and 10 slots D battery holders can provide long-term power support to ensure the normal operation of the security system.
6. Toys and Remote-Controlled Cars: For large toys and remote-controlled cars that require continuous power, 10 slots D battery holders are also common energy choices, bringing endless fun to children.
7. Medical Devices: In medical equipment such as portable ECG machines and blood glucose meters, 10 slots D battery holders provide reliable power guarantees for medical personnel to ensure the accuracy and reliability of medical equipment.

Manufacturing Process of 10 Slots D Battery Holder

1. ‌Raw Material Preparation‌:

• ‌Plastic Case Material‌: Prepare ABS black plastic material for manufacturing the outer shell of the battery holder.
• ‌Spring Contact Material‌: Prepare T=0.5 cold-rolled steel plate with nickel plating, as well as 0.9mm diameter spring steel with nickel plating, for making the contact springs inside the battery holder.
• ‌Rivet Material‌: Prepare brass rivets with nickel plating for securing the internal components of the battery holder.
• ‌Wire‌: Prepare 24AWG1571UL/CSA APPROVED electronic wire for connecting the internal circuitry of the battery holder.

2. Component Processing‌:

• ‌Plastic Case Processing‌: Process the ABS plastic material into the shape of the battery holder shell through injection molding.
• ‌Spring Contact Processing‌: Cut, bend, and nickel-plate the cold-rolled steel plate and spring steel according to design requirements to form the contact springs inside the battery holder.
• ‌Rivet Processing‌: Process the brass material into appropriately shaped rivets as needed, and apply nickel plating.

‌3. Assembly‌

• ‌Shell Assembly‌: Assemble the processed plastic case components to form the basic structure of the battery holder.
• ‌Internal Component Installation‌: Install the internal components such as springs and rivets into the battery holder according to design requirements.
• ‌Circuit Connection‌: Connect the internal circuitry of the battery holder using the prepared electronic wire to ensure proper functionality.

‌4. Quality Inspection‌:

Conduct quality inspections on the assembled battery holders, including visual inspections and functional tests, to ensure they meet design requirements and quality standards.

‌5. Packaging and Shipping‌:

Package the qualified battery holders in standard or customized packaging and ship them according to the customer’s preferred shipping method.

Why Choose KENENG as Your Trusted Supplier of 10 Slots D Battery Holder

1. KENENG has specialized in the research and development of battery peripheral accessories for over 20 years, possessing rich experience and professional technology. Not only do we have professional mold R&D engineers and highly skilled talents, but we are also equipped with a variety of originally imported equipment to support various processing methods. We are capable of providing customers with high-quality connector products such as battery holders and battery clips.
2. We offer a comprehensive range of products and supports free customization and rapid delivery. Dongguan Keneng’s parent company, Dongguan Keyu Plastic Hardware Co., Ltd., provides one-stop injection molding manufacturing services. With a complete range of products, including button battery holder series, battery holder series, battery clip series, etc., we can meet the diverse needs of customers. Furthermore, we can optimize product structure design based on customer requirements. At the same time, our company has the capability for rapid delivery, ensuring that customers receive the products they need promptly.
3. KENENG emphasizes quality control and technological innovation, with multiple patents and registered trademarks. Adhering to the principle of quality first, Keyu Company is committed to science and technology, customer-centricity, and adopts advanced high-precision manufacturing processes to ensure stable and reliable product quality. We have also achieved significant results in technological innovation, with multiple patents and registered trademarks, providing customers with even higher-quality products and services.
4. Our company operates with integrity and enjoys a high reputation. Our parent company, Dongguan Keyu Company adheres to the principle of honest operation and has established long-term and stable cooperative relationships with multiple large companies, becoming their trusted supplier. Our products and services have been widely recognized and praised by customers, earning us a high reputation.
