3 Axis vs 5 Axis CNC
In modern manufacturing, CNC (Computer Numerical Control) machining is a key technology for improving production efficiency and product precision. CNC machining centers can be classified by the number of motion axes, with 3 axis, 4 axis, 5 axis, or even more complex configurations.
Among them, 3 axis and 5 axis CNC machines are the most commonly used options. What are the differences between 3 axis and 5 axis CNC machining? Which one is more suitable for your processing needs? In this post, we will provide an in-depth analysis of 3 axis vs 5 axis CNC to help you make an informed decision.
Table of Contents
Part 1. What is 3 Axis CNC?

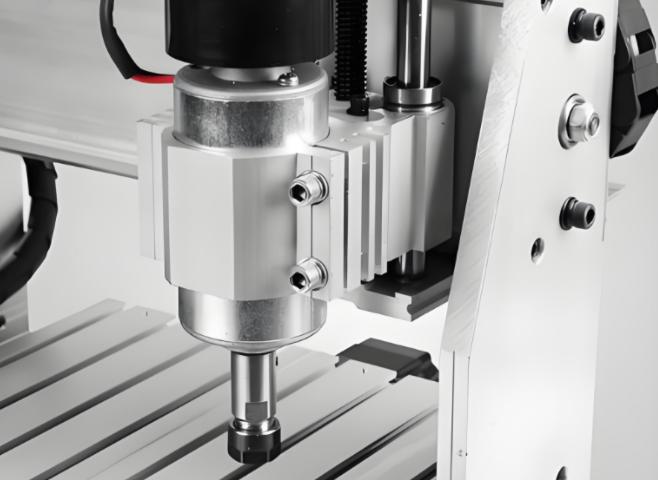

A 3-axis CNC machining center is the most fundamental type of CNC equipment, capable of moving and cutting along three linear axes:
- X-axis (left to right)
- Y-axis (front to back)
- Z-axis (up and down)
These machines operate by guiding a cutting tool along these three axes to shape a workpiece. Because of their simplicity and versatility, 3-axis CNC machines are widely used in various industries for machining tasks that involve 2D and simple 3D geometries.

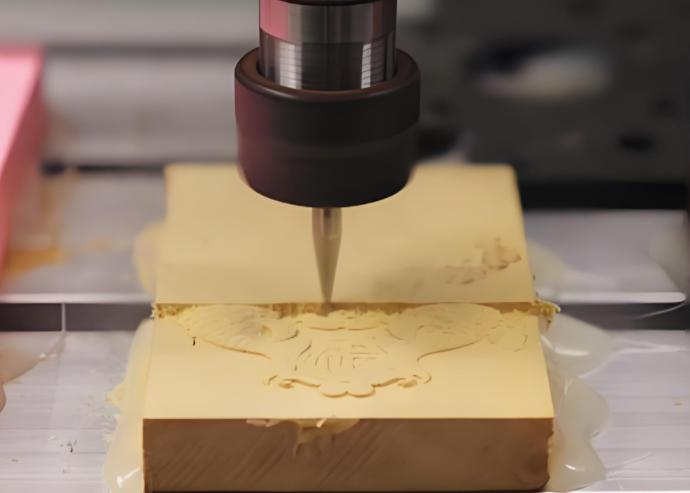

Advantages of 3-Axis CNC
1. Easy to Operate
Compared to more advanced CNC machines, 3-axis CNC systems are easier to program and control, making them ideal for beginners and small-scale manufacturers.
Operators do not require highly specialized training to set up and run these machines, which reduces the learning curve and increases accessibility for businesses new to CNC machining.
2. Lower Equipment Cost
3-axis CNC machines are generally more affordable than their 5-axis counterparts. Not only is the initial purchase price lower, but maintenance costs are also reduced due to the machine’s simpler mechanics and fewer moving parts.
This makes 3-axis CNC an economical choice for businesses that do not require highly complex machining.
3. Wide Application Range
Despite being a more basic CNC system, 3-axis machines can still handle a variety of machining operations, including:
- Face milling: Creating flat surfaces on a workpiece
- Drilling: Making precise holes in metal, plastic, or wood
- Slot cutting: Carving out slots or grooves in parts
- Contour milling: Producing basic 3D shapes
These capabilities make 3-axis CNC machines suitable for a broad range of manufacturing tasks.
Disadvantages of 3-Axis CNC
1. Limited Machining Capabilities
One major limitation of 3-axis CNC is that it cannot perform complex multi-angle machining in a single setup. If a part has intricate curves or undercuts, multiple setups and repositioning will be required. This increases the risk of misalignment and extends machining time.
2. Precision Constraints
Since the workpiece must be repositioned multiple times for multi-angle machining, each re-clamping introduces a small margin of error, potentially affecting the final product’s precision. This makes 3-axis CNC less suitable for highly detailed or intricate components.
3. Longer Machining Time
Additional workpiece re-positioning and fixture setups slow down the machining process. Unlike 5-axis CNC machines, which can process complex parts in a single setup, 3-axis machines require more manual intervention, reducing overall productivity.
Best Applications for 3-Axis CNC
Despite its limitations, 3-axis CNC is still widely used in industries that manufacture relatively simple or moderately complex components. Some typical applications include:
- Automotive Parts
- Engine brackets
- Transmission housings
- Brake components
- Electronic Device Enclosures
- Laptop and smartphone casings
- Control panels
- Heat sink components
- General Mold Manufacturing
- Basic injection molds
- Stamping dies
- Sheet metal forming tools
Part 2. What is 5 Axis CNC?

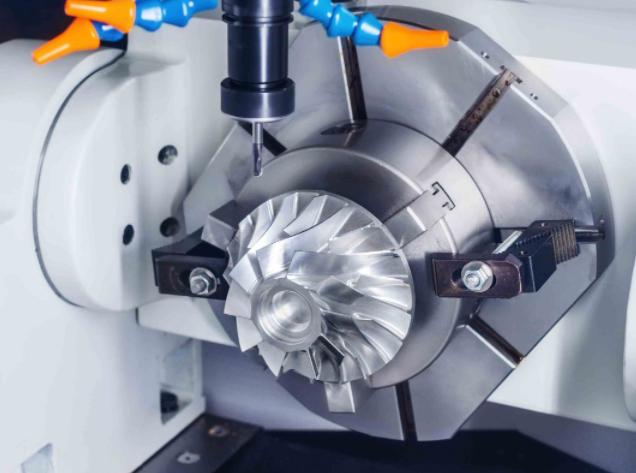

A 5-axis CNC machining center builds upon the capabilities of a traditional 3-axis CNC machine by incorporating two additional rotational axes. These extra axes—A-axis (rotation around X-axis) and B-axis (rotation around Y-axis)—allow the cutting tool to approach the workpiece from multiple angles without needing to reposition the part manually.
This advanced level of movement enables high-precision machining of complex geometries, making 5-axis CNC machines an essential tool in industries requiring intricate, multi-dimensional components.

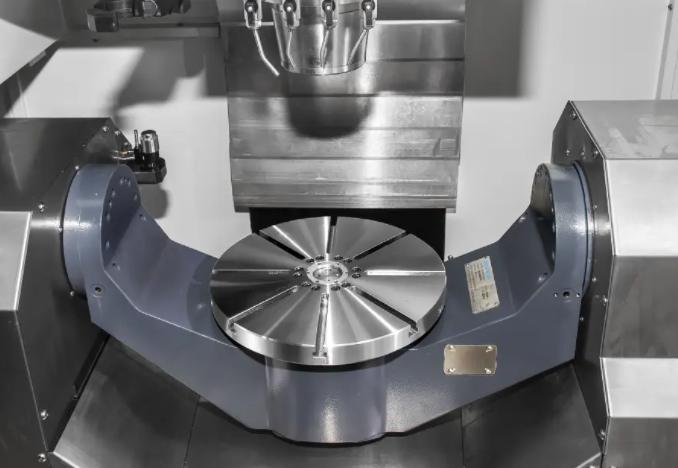

Advantages of 5-Axis CNC
1. Capable of Machining Complex Shapes
The biggest advantage of a 5-axis CNC machine is its ability to produce highly complex, curved, and contoured surfaces. Unlike 3-axis machines, which require multiple setups to achieve different angles, a 5-axis CNC can complete intricate designs in a single operation.
This makes it ideal for high-end manufacturing industries, such as:
- Aerospace: Turbine blades, impellers, and structural components
- Medical devices: Custom implants, prosthetics, and surgical tools
- Automotive and motorsports: Engine components, custom chassis parts
2. Reduced Clamping and Repositioning
Because 5-axis CNC machines can tilt and rotate the workpiece, there is often no need to manually reposition it multiple times. This reduces:
- Setup time – Operators spend less time adjusting fixtures
- Clamping errors – Fewer manual interventions reduce positioning mistakes
- Accumulated tolerances – Repeated re-clamping in 3-axis machining can introduce slight misalignments, which 5-axis machining eliminates
By minimizing human intervention, 5-axis CNC machining enhances overall precision and consistency.
3. Improved Machining Efficiency
Since 5-axis CNC machines can cut from multiple angles in a single setup, they significantly reduce the time spent on:
- Tool changes – The same tool can approach different sides of a part without repositioning
- Workpiece repositioning – No need to manually adjust the part for different machining operations
- Secondary processing – Complex shapes can be completed in one cycle instead of multiple stages
This increased efficiency makes 5-axis CNC a preferred choice for high-production environments where precision and speed are critical.
Disadvantages of 5-Axis CNC
1. High Equipment Cost
A 5-axis CNC machine is significantly more expensive than a 3-axis CNC machine. The cost increase comes from:
- More sophisticated mechanical components (rotary axes, additional motors)
- Advanced software required for controlling complex movements
- Higher maintenance costs due to the increased number of moving parts
For small businesses or those machining simpler components, a 5-axis CNC machine might not be cost-effective compared to 3-axis alternatives.
2. More Complex Programming
Programming a 5-axis CNC machine requires advanced CAM (Computer-Aided Manufacturing) software and a high level of expertise. Factors that make programming more challenging include:
- More degrees of freedom – Requires precise control over rotational movements
- Collision avoidance – Ensuring the tool and workpiece do not collide during multi-axis movements
- Longer setup times – Fine-tuning machine paths and calibrations for optimal results
Operators need extensive training to effectively program and operate a 5-axis CNC machine.
3. Higher Operator Skill Requirements
Unlike 3-axis CNC machines, which are relatively easy to use, 5-axis CNC machining requires experienced professionals who can:
- Understand advanced G-code programming
- Optimize toolpaths for complex geometries
- Troubleshoot multi-axis movements and prevent machining errors
For companies without skilled personnel, the learning curve for 5-axis CNC machining can be steep.
Best Applications for 5-Axis CNC
Due to its ability to handle intricate designs and precise cuts, 5-axis CNC machining is widely used in industries where high accuracy and complex geometries are required. Some common applications include:
1. Aerospace Components
- Turbine blades
- Aircraft structural components
- Engine parts requiring multi-surface precision
2. Medical Implants & Devices
- Custom prosthetic implants
- Surgical instruments
- Dental crowns and orthopedic parts
3. Advanced Mold Manufacturing
- Injection molds for intricate plastic components
- Die-casting molds with complex undercuts
- High-precision stamping dies
4. High-Precision Machining
- Automotive engine components
- High-performance racing parts
- Defense and military equipment
Part 3. Key Differences Between 5 Axis vs 3 Axis CNC
Core Differences Between 3-Axis and 5-Axis CNC
When choosing between a 3-axis and a 5-axis CNC machine, it’s crucial to understand their key differences. The table below provides a detailed comparison of their capabilities, precision, efficiency, cost, and applications to help you determine which option best suits your manufacturing needs.
| Comparison | 3-Axis CNC | 5-Axis CNC |
| Number of Axes | X, Y, Z | X, Y, Z + A, B |
| Machining Capability | Suitable for simple machining | Suitable for complex surface machining |
| Machining Accuracy | Requires multiple setups, which may introduce errors | Completed in a single setup, improving precision |
| Production Efficiency | Requires multiple repositioning, slower speed | More efficient, reduces clamping time |
| Equipment Cost | Affordable, low maintenance cost | Expensive, high maintenance cost |
| Programming Complexity | Moderate, easy to learn | Complex, requires advanced programming skills |
| Applicable Industries | Automotive, electronics, general manufacturing | Aerospace, medical, complex mold making |
Part 4. How to Choose the Right CNC Machining?
Selecting the right CNC machining method depends on your production needs, budget, and the complexity of your parts. Below are some key considerations to help you make an informed decision:
1. Choose 3-Axis CNC If:
- Your business requires mass production of standardized parts.
- You prioritize cost-effectiveness and want to minimize equipment investment.
- Your components involve basic milling, drilling, or slotting, without the need for intricate multi-angle machining.
- You need faster production cycles with minimal programming complexity.
2. Choose 5-Axis CNC If:
- Your project involves complex geometries, curved surfaces, or high-precision components.
- You want to reduce manual intervention and re-clamping, improving accuracy and consistency.
- Your industry demands aerospace, medical, or high-end mold manufacturing with superior surface finishes.
- You are focused on maximizing efficiency by reducing setup time and increasing cutting precision.
Part 5. Still Unsure Which CNC Machining Method to Choose?
If you’re uncertain about which CNC method suits your product best, don’t worry! Investing in CNC equipment can be costly and requires skilled operators. Instead of purchasing expensive machines and handling complex programming in-house, a professional CNC machining service is a more efficient and cost-effective solution.
Work with a Professional CNC Machining Service

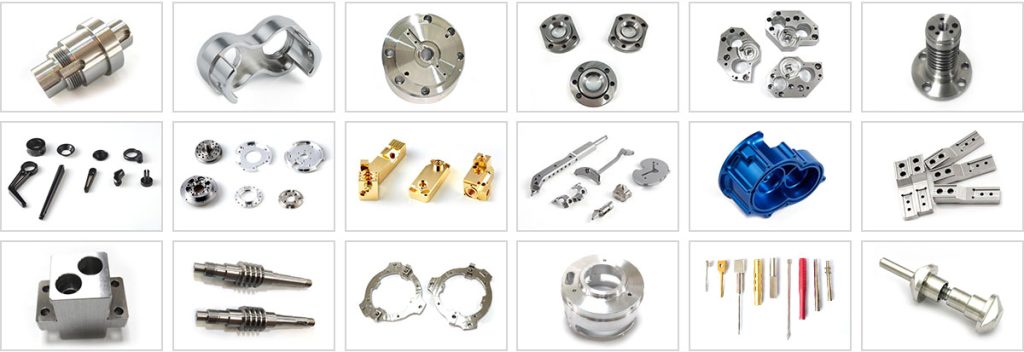

Partnering with an experienced CNC machining provider allows you to access both 3-axis and 5-axis machining capabilities without the hassle of equipment maintenance, programming, and operation.
At KENENG, it offers customized CNC machining solutions tailored to your specific needs. Its advanced CNC equipment ensures high precision, efficiency, and top-quality results for industries ranging from automotive and electronics to aerospace and medical manufacturing.
Why Choose KENENG?
- Comprehensive 3-axis & 5-axis CNC machining solutions
- High-precision production with strict quality control
- Cost-effective services with flexible production options
- Fast turnaround times and reliable delivery
Contact KENENG to discuss your project requirements and get a customized machining solution that meets your needs!
Conclusion: 3-Axis vs 5-Axis CNC, How to Make the Final Decision?
The choice between 3-axis CNC and 5-axis CNC depends on your machining needs, budget, and production goals. However, purchasing CNC equipment involves significant investment. Opting for professional CNC machining services allows you to enjoy high-precision manufacturing at a lower cost.
KENENG offers advanced 3-axis and 5-axis CNC machining capabilities, providing high-precision, efficient machining services for global customers. Contact KENENG for expert CNC machining solutions.
