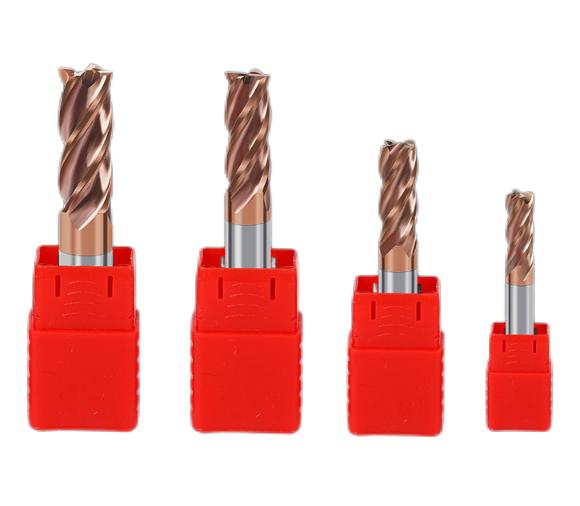

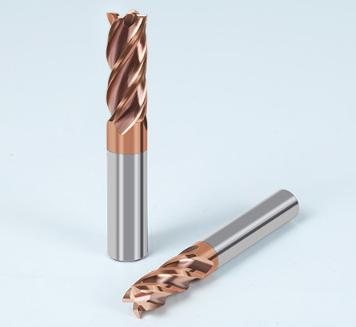

4-Blade Tungsten Steel Milling Cutter

  • Material: Tungsten steel raw material
  • Number of Blades: 4 Blades
  • Spiral angle: 55°
  • Hardness: 55HRC
  • Coating: Nano coating
  • Processed Material:  for cutting ordinary steel, stainless steel, carbon steel, mold steel, all kinds of soft and hardwood, etc.

Are You an OEM Manufacturer?

Yes

Specifications of 4-Blade Tungsten Steel Milling Cutter

Size Blade Diameter(mm) Blade Length(mm) Overall Length(mm) Shank Diameter(mm)
1-4*D4*50L 1-4 4 50 1-4
4*75L*D4 4 12 75 4
4*20*100L 4 20 100 4
D6*15*D6*50L 6 15 50 6
D6*24*D6*75L 6 24 75 6
D6*30*D6*100L 6 30 100 6
D8*20*D8*60L 8 20 60 8
D8*30*D8*75L 8 30 75 8
D8*35*D8*100L 8 35 100 8
D10*25*D10*75L 10 25 75 10
D10*40*D10*100L 10 40 100 10
D12*30*D12*75L 12 30 75 12
D12*40*D12*100 12 40 100 12
D14*40*D14*100L 14 40 100 14
D16*40*D16*100L 16 40 100 16
D18*45*D18*100L 18 45 100 18
D20*45*D18*100L 20 45 100 20
D6*45*D6*150L 6 45 150 6
D8*50*D8*150L 8 50 150 8
D10*60*D10*150L 10 6 150 10
D12*60*D12*150L 12 6 150 12
D14*70*D14*150L 14 70 150 14
D16*70*D16*150L 16 70 150 16
D18*70*D18*150L 18 70 150 18
D20*70*D20*150L 20 70 150 20

Excellent Characteristics of 4-Blade Tungsten Steel Milling Cutter

  1. Made of imported tungsten steel alloy, strong wear resistance.
  2. Good thermal conductivity, more wear-resistant during processing
  3. Chamfered round handle, chamfered tail for easy holding

Outstanding Design in 4-Blade Tungsten Steel Milling Cutter

  • High wear resistance tungsten steel hard alloy. Using tungsten steel hard alloy, it has higher wear resistance and strength, and is an exclusive milling cutter for high hardness high-speed cutting applications.
  • Smooth chip removal and large core diameter design. Precision machine tools are used to grind the cutting edge, and the large core diameter design enhances rigidity and shock resistance.
  • Four-blade chip removal large chip groove design. The large chip removal space is not easy to accumulate chips, not prone to tool breakage, sharp and wear-resistant, smooth cutting, and improves cutting efficiency.
  • Passivation treatment. Wave edge design, large chip discharge, smoother metal cutting, large feed rate to increase production efficiency.

Why Choose KENENG as A Trusted Supplier of 4-Blade Tungsten Steel Milling Cutter

1. We will use high-precision measuring tools and advanced testing equipment to inspect all parts and processes from incoming materials to final inspection. KENENG ensures that only qualified products are delivered to customers.

2. Competitive pricing: We have stable raw material suppliers who can quickly provide customers with competitive quotes.Mature technology and rich experience in surface strengthening treatment, strong pressure treatment, elimination of internal stress during use, making elasticity more stable.

3. Engineering support: No matter how many parts customers require, we have a professional team of engineers to provide technical support.

Materials we can use on 4-Blade Tungsten Steel Milling Cutter
