4xAA battery holder (with wire)
- 4xAA battery holder (with wire) can hold four AA ordinary batteries or rechargeable batteries. Ordinary batteries can output 6.0V voltage, while rechargeable batteries can output 4.8V voltage, which can be used as power supply for SCM system, Arduino system, other intelligent cars, tracking cars, etc.
- Keyu brand 4xAA battery holder is made of high quality materials, combined with advanced production equipment and strict quality control, for you to produce 100% good products.
Contact US
For product pricing, customization, or other inquiries:
Product Parameter (Specification)
| Product name | 4xAA battery holder (with wire) |
| Type | Rectangle battery holder |
| Model No. | KY-32006-1-1 |
| Material | PP + Spring Steel Nickel plated |
| Size | 58*62.9*15.4mm |
| Rating | 6.0V |
| Color | Black |
| Number of cells | 4 cells |
| Cell Arrangement | Side by side |
| Port | Shenzhen , Guangzhou |
| MOQ | 2000pcs |
Product Feature And Application
- This 4XAA battery holdercan be make to 6.0v battery output.

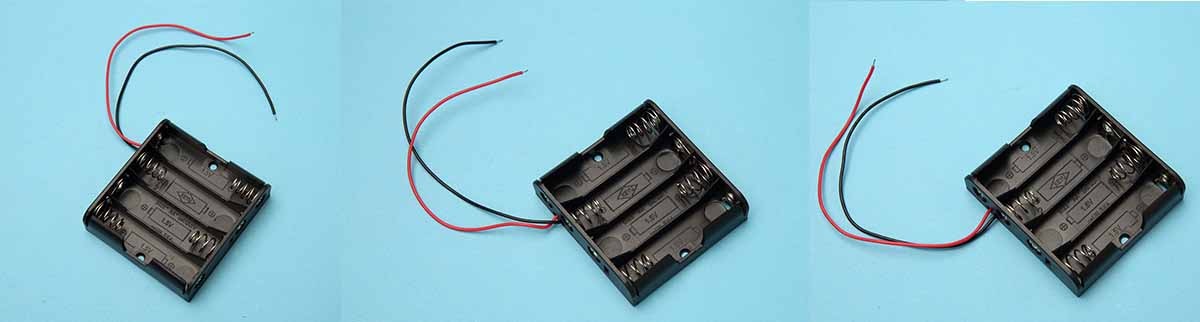

- The opposite side is the same as the picture shown.
- The perfect external power source for electronic DIY.
- Holds four AA batteries.
- Easy install, convenient to use.
- High-quality plastic material.
- The perfect external power source for single-chip microcomputer system, Arduino system, 2WD mobile robot, track-seeking car, RP5 tracked vehicle.
Product Details

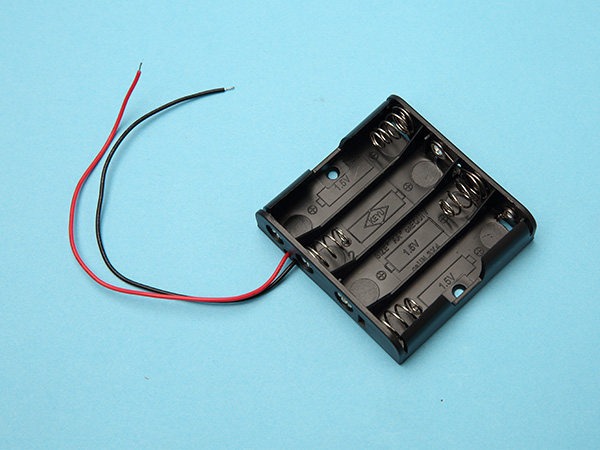

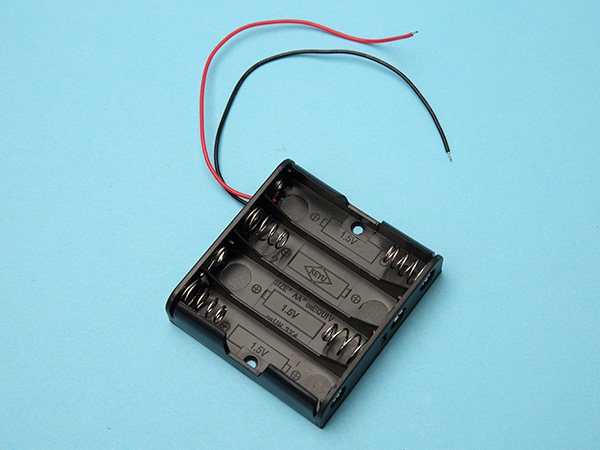

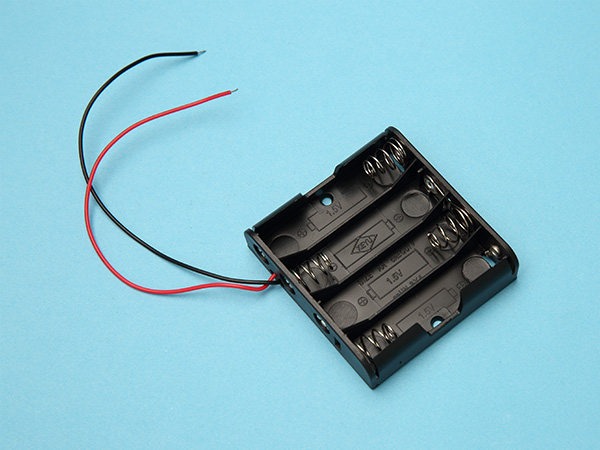

4XAA battery holder (with wire) detail:
Battery Type: Rectangle battery holder
Place of Origin: Dongguan, China
Color: Black
Material:
Holder: Polypropylene Resin; Wire: 26 AWG 1007 UL/CSA Approved; Spring:0.7MM music wire nickel plated
Product name: 4XAA battery holder with wire , inclined hole
Style: Holder (open)
Mounting Type: Custom
Operating Temperature: -10-100℃
Size: 58*62.9*15.4mm, wire length=150mm
Termination Style: Wire (black and red)
Nominal Voltage: 6.0V
Product Qualification
All of our 6xAA battery holder with rivet with ISO9001, ROHS, Dun & Bradstreet certifications.
