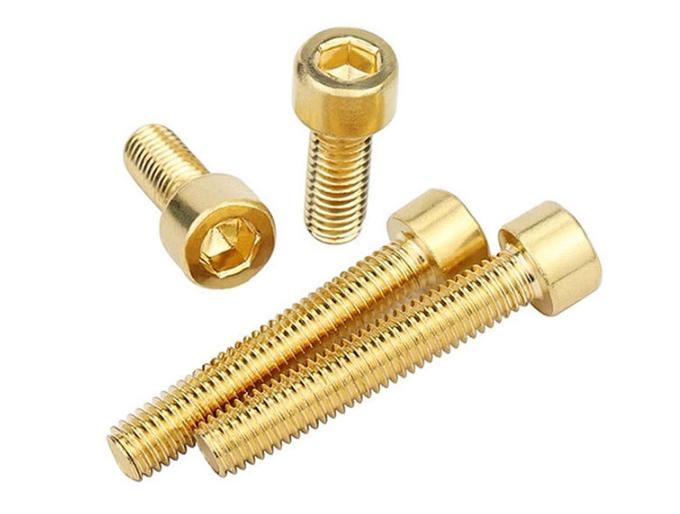

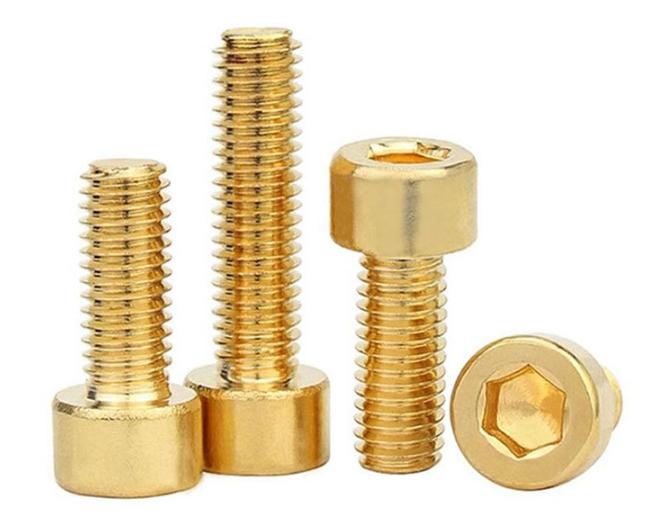

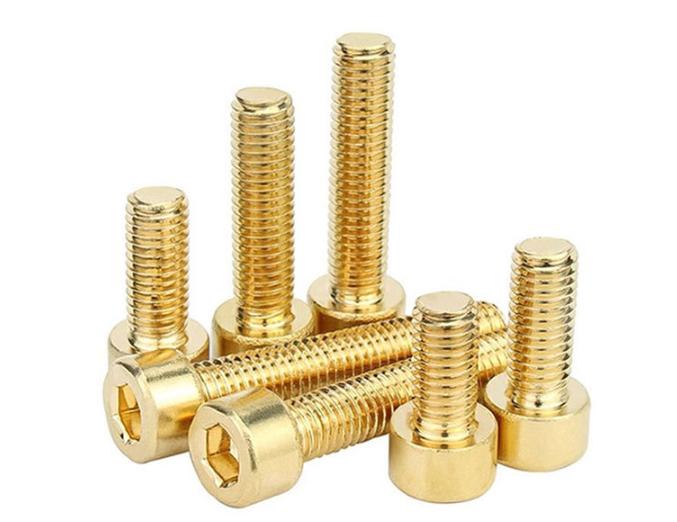

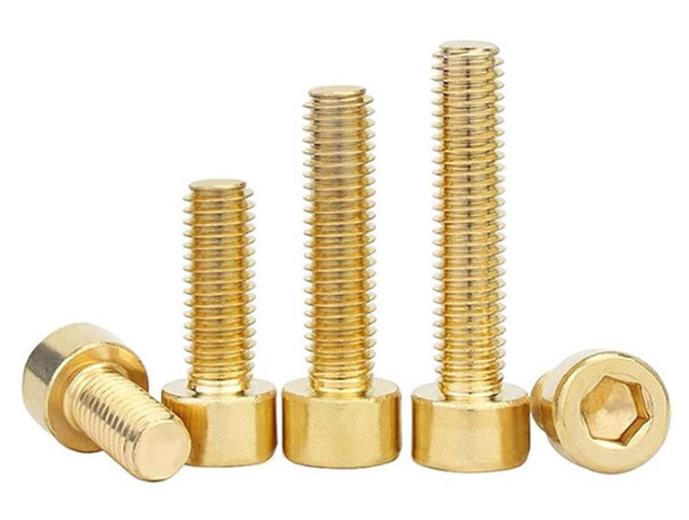

Brass Socket Cap Head Screws

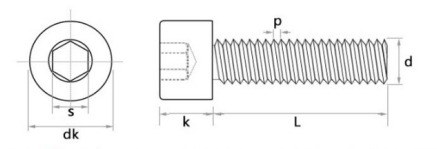

Specifications of Brass Socket Cap Head Screws
|
Thread Specifications (d) |
Pitch (p) |
Head Diameter (dk) |
Head Thickness(k) | Hexagon Opposite Sides(s) | Matching Wrench | |||
| max | min | max | min | max | min | |||
| M1.4 | 0.3 | 2.74 | 2.46 | 14 | 1.26 | 1.25 | 1.22 | 1.25mm |
| M1.6 | 0.35 | 3.14 | 2.86 | 1.6 | 1.46 | 1.56 | 1.52 | 1.5mm |
| M2 | 0.4 | 3.98 | 3.68 | 2.0 | 1.86 | 1.56 | 1.52 | 1.5mm |
| M2.5 | 0.45 | 4.68 | 4.36 | 2.5 | 2.36 | 2.06 | 2.0 | 2.0mm |
| M3 | 0.5 | 5.68 | 5.32 | 3.0 | 2.86 | 2.58 | 2.52 | 2.5mm |
| M4 | 0.7 | 7.22 | 6.88 | 4.0 | 3.82 | 3.08 | 3.0 | 3.0mm |
| M5 | 0.8 | 8.72 | 8.39 | 5.0 | 4.82 | 4.10 | 4.0 | 4.0mm |
| M6 | 1 | 10.22 | 9.88 | 6 | 5.7 | 5.14 | 5.02 | 5.0mm |
| M8 | 1.25 | 13.27 | 12.73 | 8 | 7.64 | 6.14 | 6.02 | 6.0mm |
| M10 | 1.5 | 16.27 | 15.93 | 10 | 9.64 | 8.2 | 8.03 | 8.0mm |
| M12 | 1.75 | 18.27 | 17.93 | 12 | 11.57 | 10.18 | 10.03 | 10mm |
Advantages of KENENG Brass Socket Cap Head Screws
- High quality material
- Complete specifications, a variety of options
- No fracture, crack, rust, etc
Applications of Brass Socket Cap Head Screws
Brass socket cap screws are widely used in industries such as home decoration, electronic products, automobiles, ships and so on, and are loved by consumers because of their glossy surface, delicate, beautiful appearance, good electrical conductivity and good corrosion resistance.
