CNC Drillingvs. CNC Boring: Which Machining Method to Choose

CNC (Computer Numerical Control) machining provides precise and efficient ways to create holes and cavities in various materials. Among the commonly used processes in CNC machining are CNC boring and CNC drilling. While both techniques involve hole-making, they serve different purposes and are used in distinct applications. Understanding the differences between CNC drilling vs. CNC boring is essential for selecting the right machining method.

What is CNC Drilling

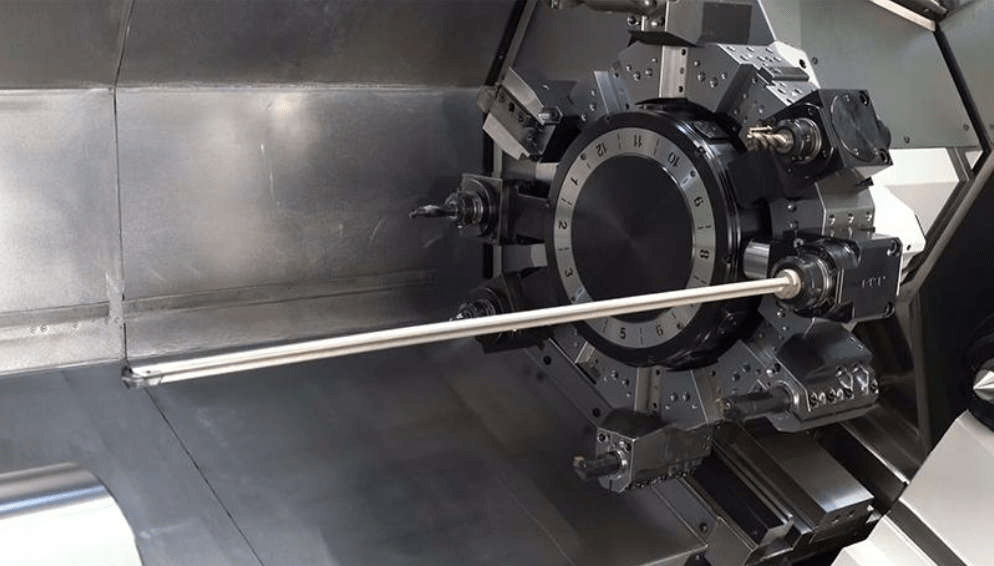

CNC drilling is a precision machining process used to create holes in a workpiece with high accuracy and efficiency. It is a crucial operation in modern manufacturing, where automated control ensures consistent hole placement and depth. By using pre-programmed instructions, CNC drilling eliminates human error and enhances production speed, making it ideal for industries requiring mass production and complex hole patterns.

How it Works

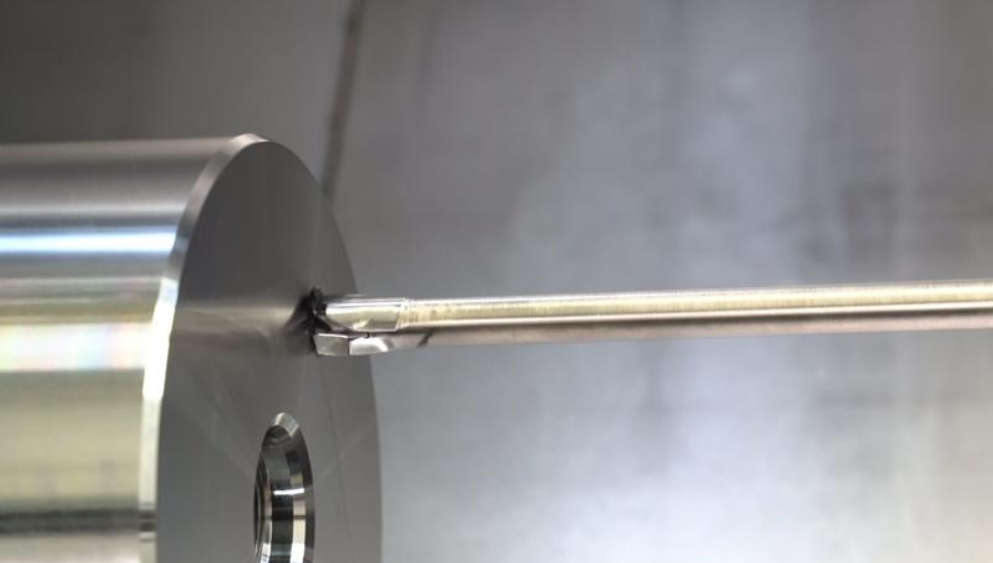

CNC drilling operates by guiding a rotating drill bit into a workpiece along the Z-axis, creating holes of specified diameters and depths. The process starts with a CAD model, which is converted into a CNC program that dictates the tool’s movement, feed rate, and cutting speed. The CNC machine precisely controls the drilling operation, ensuring repeatability and uniformity across multiple workpieces.

CNC drilling machines can perform simple hole-making operations or more complex tasks such as peck drilling, countersinking, reaming, and tapping. These operations enhance hole quality and prepare the workpiece for additional machining steps.

Applications

Automotive Industry: Creating holes for fasteners, engine components, and structural parts.
Aerospace Industry: Precision drilling for aircraft panels, turbine components, and fuel systems.
Electronics Industry: Drilling holes in circuit boards for electrical connections.
Industrial Manufacturing: Producing cooling channels, mounting holes, and pre-drilled features for further machining.

CNC drilling is also essential in construction, medical device manufacturing, and toolmaking, where precise hole placement is critical for product functionality.

Advantages

High Precision and Consistency: CNC drilling ensures exact hole dimensions and locations, minimizing material waste and errors.
Increased Production Efficiency: The automation of CNC drilling allows for rapid hole-making, reducing machining time and labor costs.
Versatility: CNC drilling machines can handle various materials, including metals, plastics, composites, and ceramics.
Multi-Functional Capability: Advanced CNC drilling machines integrate additional machining functions such as milling, tapping, and boring, making them highly efficient for complex parts.
Reduced Human Error: Since CNC drilling follows programmed instructions, the risk of inconsistencies is minimized, ensuring superior quality control.

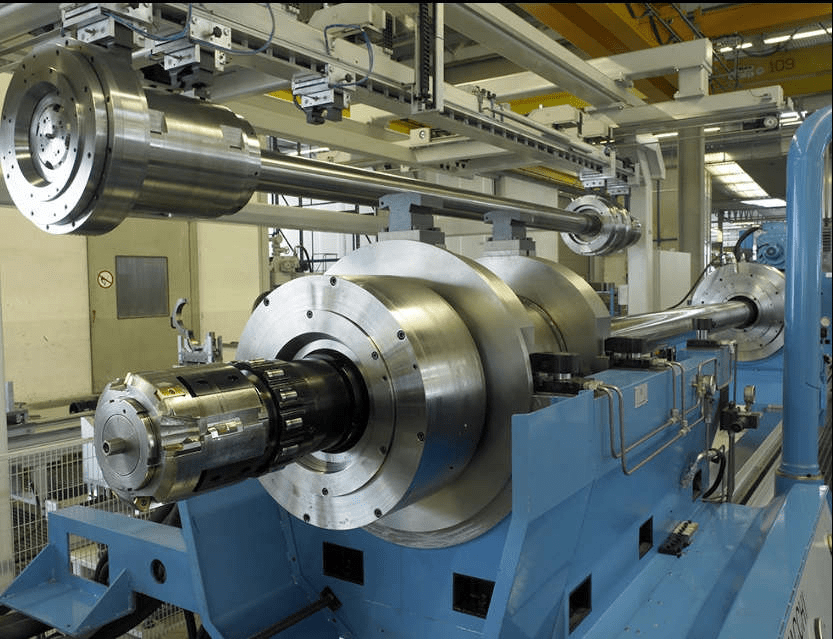

Machines Used for CNC Drilling

CNC Drilling Machines: Designed specifically for drilling operations, these machines feature multiple drill heads for high-speed hole production.
CNC Milling Machines: Capable of performing drilling alongside CNC milling and other machining processes, providing greater flexibility.
CNC Lathes: Used for drilling holes in cylindrical workpieces by rotating the workpiece against a stationary drill bit.
Multi-Axis CNC Machines: Equipped with multiple axes, allowing for angled and multi-directional drilling without repositioning the workpiece.

What is CNC Boring

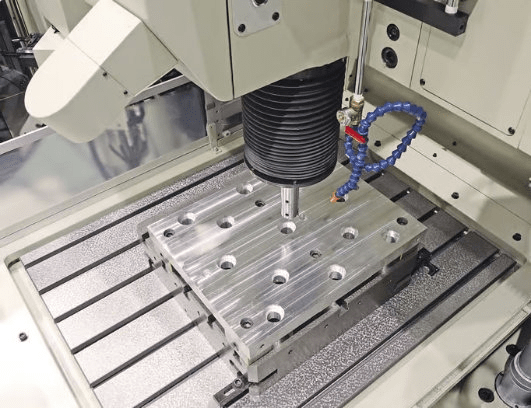

CNC boring is a precision machining process used to enlarge or refine an existing hole in a workpiece. Unlike CNC drilling, which creates a new hole, CNC boring enhances the diameter, accuracy, and surface finish of a pre-drilled or cast hole. This process is essential in high-precision industries, where tight tolerances and superior hole quality are required.

How it Works

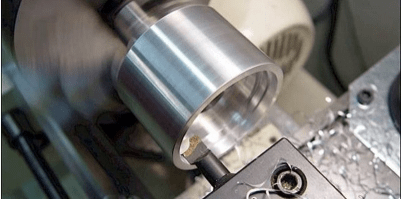

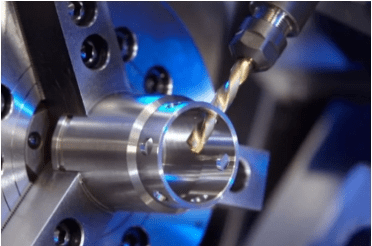

CNC boring is performed using a single-point cutting tool called a boring bar, which removes material from the inside of a hole. The boring tool moves radially to adjust the hole’s diameter while maintaining precision in depth and surface finish. The process is guided by a CNC program that controls the tool position, cutting speed, and feed rate, ensuring consistency and repeatability across multiple workpieces.

CNC boring is commonly done on CNC milling machines, boring mills, and CNC lathes, depending on the size and complexity of the workpiece. In some cases, multi-axis CNC machines are used for boring at different angles and depths without repositioning the workpiece.

Applications

Aerospace Industry: Producing precise bores for aircraft engine components and structural assemblies.
Automotive Industry: Refining cylinder bores in engine blocks to ensure proper fit and function.
Heavy Machinery: Creating large-diameter holes for hydraulic systems and mechanical assemblies.
Oil and Gas Industry: Precision boring for drill pipe connections and pressure vessel components.

CNC boring is also crucial in manufacturing molds, dies, and medical equipment, where precision and surface quality directly impact performance.

Advantages

High Precision and Accuracy: CNC boring provides superior control over hole size, ensuring tight tolerances.
Improved Surface Finish: The boring process removes irregularities, resulting in a smoother and more refined hole.
Customization of Hole Geometry: CNC boring can create tapered, stepped, or contoured holes, adapting to specific engineering requirements.
Consistency and Repeatability: The automation of CNC boring ensures uniformity across production batches.
Versatility: Suitable for a wide range of materials, including metals, plastics, and composites.

Machines Used for CNC Boring

CNC Milling Machines: Used for boring smaller, high-precision holes with multi-axis capabilities.
CNC Boring Mills: Heavy-duty machines designed for boring large-diameter holes in thick workpieces.
CNC Lathes: Ideal for boring holes in rotating cylindrical workpieces, such as engine cylinders and bearing housings.

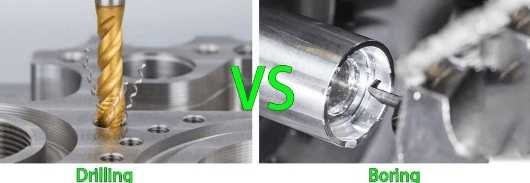

CNC Boring vs. CNC Drilling: Key Differences

Feature	CNC Drilling	CNC Boring
Purpose	Creates a new hole	Enlarges and improves an existing hole
Tool Type	Multi-point drill bit	Single-point boring bar
Accuracy	Moderate precision	High precision with tight tolerances
Surface Finish	Standard	Smooth and refined
Material Removal	Removes material to create a hole	Removes material to refine hole size and shape
Typical Machines	CNC drilling machines, CNC mills, CNC lathes	CNC milling machines, boring mills, CNC lathes
Cutting Action	Axial penetration into the material	Radial cutting to enlarge a hole
Hole Shape Control	Limited to straight cylindrical holes	Can create tapered, stepped, or contoured holes
Speed	Faster process for initial hole-making	Slower but precise hole finishing
Common Applications	General hole-making, fasteners, cooling holes	Precision bores in engine blocks, hydraulic components, aerospace parts

Key Factors to Consider for Choosing Between CNC Boring vs. CNC Drilling

Factor	CNC Drilling	CNC Boring
Hole Creation vs. Refinement	Used to create a new hole from scratch.	Used to enlarge or refine an existing hole.
Precision & Tolerances	Provides moderate precision, suitable for general applications.	Ensures high accuracy with tight tolerances.
Surface Finish	Leaves a rougher surface, often requiring additional finishing.	Produces a smoother and more refined surface.
Material Type & Machinability	Works well with a wide range of materials, including metals and plastics.	More suitable for harder materials or when high precision is needed.
Speed & Efficiency	Faster process for initial hole-making.	Slower but essential for precision and fine-tuned hole quality.
Hole Size & Complexity	Best for small-to-medium holes with standard cylindrical shapes.	Ideal for larger holes, custom geometries, and tapered or stepped bores.
Tooling & Equipment	Uses multi-point drill bits, suitable for CNC drills, mills, and lathes.	Uses single-point boring tools or boring heads, requiring specialized machines.
Application Suitability	Commonly used for fastener holes, cooling channels, and general machining.	Preferred in applications requiring precise fits, such as engine blocks, aerospace, and hydraulic systems.

Summary

Choose CNC drilling when creating a hole from scratch, especially if speed and efficiency are key factors.
Choose CNC boring when a pre-drilled hole needs to be precisely enlarged, refined, or shaped for a tight tolerance fit.
In many machining processes, both methods are used together, using drilling to create the initial hole and boring to achieve the required accuracy and finish.

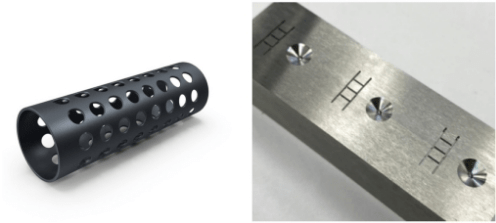

Hole Shape of CNC Drilling vs. CNC Boring

Final Thoughts

CNC drilling is ideal for fast and efficient hole creation, CNC boring ensures precision and refinement. Selecting the right process depends on the application requirements, material type, desired hole quality, needed tools, etc. Through understanding these differences, manufacturers can optimize machining operations for better efficiency and accuracy.
