CNC Grinding vs. Conventional Grinding: Choosing the Right Method

Grinding is a crucial process in manufacturing that ensures precision, surface finish, and material removal efficiency. The advent of CNC machining technology has revolutionized grinding operations, offering enhanced accuracy, repeatability, and automation. This article compares CNC grinding vs. conventional grinding, analyzing their advantages, limitations, and ideal applications.

Overview of CNC Grinding

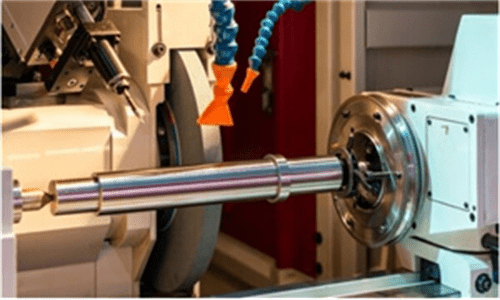

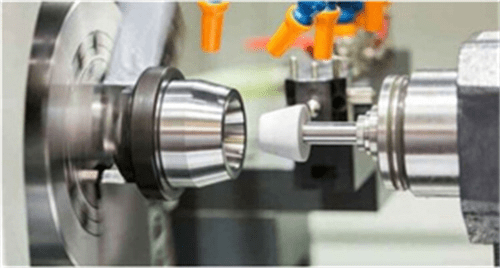

CNC grinding is a precision machining process that automates grinding operations using computer-controlled machines. This technology enhances accuracy, repeatability, and efficiency, making it ideal for high-volume production and complex geometries. CNC grinding machines use pre-programmed instructions to control grinding wheel movement, ensuring precise material removal with minimal human intervention.

Advantages

Automation and Precision: CNC grinding eliminates manual adjustments, providing consistent accuracy in every workpiece. The process follows programmed parameters to achieve high precision in dimensions and surface finish.
Repeatability: Once a program is set, CNC grinding can produce identical parts with minimal variation, making it ideal for mass production.

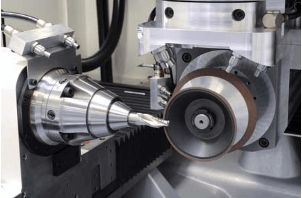

Multi-Axis Capability: Advanced CNC grinding machines can operate on multiple axes, allowing for complex geometries, intricate contours, and high-precision profiles.
Efficiency and Speed: CNC grinding reduces setup time, enables continuous operation, and optimizes grinding parameters, leading to faster production rates.
Integration with CAD/CAM: CNC grinding machines can work with CAD/CAM software, enabling seamless transition from design to manufacturing.

Limitations

High Initial Investment: CNC grinding machines are more expensive than conventional grinders due to their advanced technology and automation capabilities.
Programming Requirement: Operators must be skilled in CNC programming and machine setup to optimize grinding parameters and ensure precise outcomes.
Limited Flexibility for One-Off Jobs: While highly efficient for batch production, CNC grinding may be less cost-effective for low-volume, highly customized jobs compared to conventional grinding.
Complex Maintenance: The advanced components and software require regular maintenance and specialized technical support.

Applications

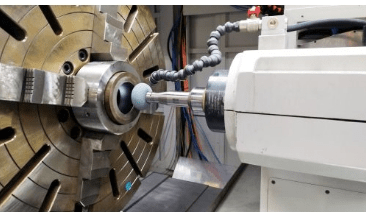

Aerospace Industry: CNC grinding is used for manufacturing aerospace components, such as high-precision turbine blades, engine components, and landing gear parts.
Automotive Industry: Essential for producing transmission gears, camshafts, crankshafts, and other precision engine parts.
Medical Equipment Manufacturing: Used in making surgical instruments, implants, and prosthetics that require ultra-precise grinding.

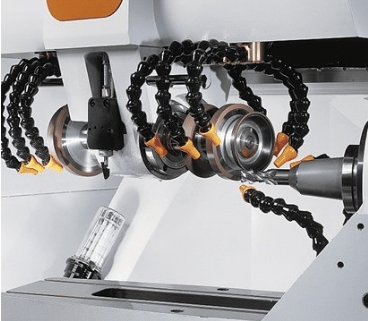

Tool and Die Industry: Produces high-precision cutting tools, molds, and dies with consistent accuracy.
Bearing and Gear Production: Ensures high tolerances and smooth finishes for industrial bearings and gear components.

Overview of Conventional Grinding

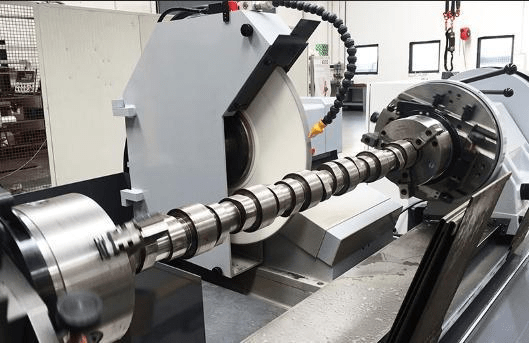

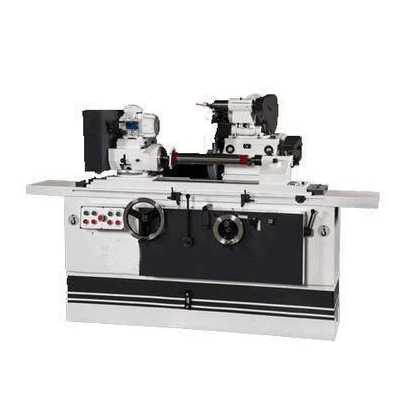

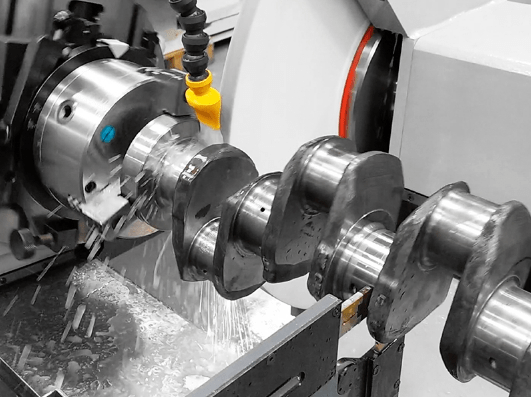

Conventional grinding is a machining process used to shape, finish, or refine a workpiece by removing material through abrasion. It typically involves the use of grinding wheels made of abrasive grains bonded together to perform cutting actions on metal, ceramics, and other materials. Unlike CNC grinding, which is automated, conventional grinding requires manual operation or semi-automated controls, making it highly dependent on the skill and expertise of the operator.

Advantages

Lower Initial Investment: Compared to CNC grinding machines, conventional grinding equipment is generally more affordable, making it suitable for smaller workshops or businesses with limited budgets.
Suitable for Small-Batch Production: Ideal for low to medium-volume production runs, maintenance work, and unique, custom grinding applications.
Operator Expertise-Dependent: The quality and precision of grinding depend on the machinist’s skill, experience, and ability to adjust parameters like wheel speed, pressure, and feed rate.
Simple Setup: Requires less programming or digital intervention, allowing for quicker setup in specific cases, especially when grinding straightforward geometries.

Limitations

Lower Repeatability: Since human intervention is involved, maintaining consistency across multiple workpieces is more challenging compared to automated CNC grinding.
Slower Processing Speeds: Manual adjustments and feed rates limit production speed, making it less efficient for mass production.
Higher Labor Costs: Skilled operators are needed for precise control, which increases labor costs over time.
Operator Fatigue Impact: Long hours of manual grinding can lead to fatigue, reducing precision and increasing the risk of human error.
Limited Ability for Complex Shapes: Producing intricate geometries or multi-axis grinding is more challenging than with CNC grinding, which can execute precise, pre-programmed movements.

Applications

Tool and Die Making: Used for sharpening cutting tools, shaping dies, and maintaining tooling components.
Maintenance and Repair: Ideal for refurbishing worn-out parts and restoring dimensional accuracy.
Prototype and Custom Work: Well-suited for low-volume and one-off grinding jobs where setup time and flexibility are crucial.
Surface Finishing: Employed in polishing and refining metal surfaces to achieve specific finishes.

Key Differences Between CNC Grinding vs. Conventional Grinding

Aspect	CNC Grinding	Conventional Grinding
Operation	Automated, computer-controlled	Manually operated or semi-automated
Precision	High precision with minimal errors	Dependent on operator skill
Repeatability	Consistent and repeatable results	Less consistent due to human involvement
Speed	Faster, optimized for high-volume production	Slower, better for small batches
Complexity	Handles intricate geometries and multi-axis grinding	Limited to simpler shapes and operations
Setup Time	Requires programming but minimal manual setup	Quick for small jobs but requires manual adjustments
Cost	Higher initial investment but lower long-term costs	Lower upfront cost but higher labor costs over time
Labor Requirement	Requires programming expertise	Requires skilled machinists for manual control

Key Factors to Consider for Choosing Between CNC Grinding vs. Conventional Grinding

This chart helps manufacturers assess their requirements and choose the best grinding method based on cost, precision, flexibility, and production needs.

Factor	CNC Grinding	Conventional Grinding
Production Volume	Best for high-volume production	Suitable for small-batch or one-off jobs
Precision & Tolerance	High precision with tight tolerances	Depends on operator skill, less consistent
Workpiece Complexity	Handles intricate geometries and multi-axis grinding	Limited to simpler shapes
Cost Considerations	Higher initial cost, lower long-term labor costs	Lower upfront cost, higher labor costs over time
Operator Skill Level	Requires CNC programming knowledge	Relies on skilled machinists for manual control
Maintenance & Downtime	More complex maintenance, needs specialized support	Easier maintenance but requires frequent adjustments
Industry & Application	Preferred for aerospace, automotive, medical, and high-precision industries	Ideal for repair work, prototyping, and maintenance
Flexibility in Job Type	Best for standardized, repeatable parts	More adaptable to custom and unique jobs
Work Environment & Space	Requires dedicated space with automation infrastructure	Can be set up in smaller workshops

Summary

For mass production and precision-critical components: CNC grinding is the preferred choice due to its automation, speed, and repeatability.
For small-batch or custom jobs: Conventional grinding may be more suitable due to its flexibility and lower setup costs.
For industries requiring intricate geometries: CNC grinding is advantageous as it can handle complex shapes with high accuracy.
For workshops with budget constraints: Conventional grinding might be more feasible due to lower equipment costs.

Final Thoughts

CNC grinding and conventional grinding each have their strengths and limitations. CNC grinding excels in precision, speed, and automation, making it ideal for high-volume production, while conventional grinding offers greater flexibility for unique, low-volume tasks. Choosing the right grinding method depends on the specific requirements of the application, budget, and production volume.
