CNC Planing vs. CNC Milling: When to Use Each Process
CNC machining has revolutionized modern manufacturing by offering high-precision material removal for a wide range of industries. Among the many machining processes available, CNC planing and CNC milling stand out as two commonly used techniques for shaping and refining workpieces. While both processes involve material removal, they differ in how the cutting action is performed and the types of parts they produce. Understanding these differences helps manufacturers select the right process for their specific applications.
Table of Contents
What is CNC Planing

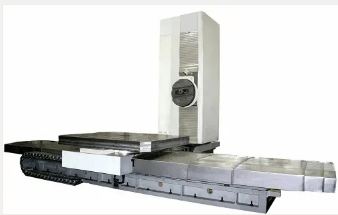

CNC planing is a machining process used to create large, flat surfaces with high precision. It involves a stationary workpiece while a cutting tool moves back and forth in a linear motion to remove material. This process is particularly effective for shaping long, straight cuts and machining large, heavy components that may be difficult to handle in other machining operations.
How it Works
In CNC planing, the cutting tool moves in a straight path along the surface of the workpiece. The material removal occurs during the forward stroke, while the return stroke does not cut, making the process intermittent. The controlled movement of the tool ensures precision and consistency, which is crucial for applications requiring perfectly flat or straight surfaces.
Key Features
- The workpiece remains stationary while the cutting tool moves in a linear motion.
- Ideal for machining long, flat surfaces with high accuracy.
- Typically used for heavy-duty metal components in industries like manufacturing and construction.
- Produces straight grooves, keyways, and other linear cuts.
Advantages
- High Precision: Ensures accurate flatness and straightness for large workpieces.
- Effective for Large Components: Capable of machining oversized materials that may not fit in other CNC machines.
- Consistent Surface Finish: Produces smooth and uniform surfaces, reducing the need for additional finishing processes.
Common Applications
- Manufacturing of machine beds and industrial plates.
- Creating long keyways and slots in large workpieces.
- Machining structural steel components for heavy industries.
- Producing flat surfaces on large castings used in machinery and automotive applications.
CNC planing is particularly useful for industries requiring precision machining of large-scale metal components, making it a vital process in heavy manufacturing and structural engineering.
What is CNC Milling

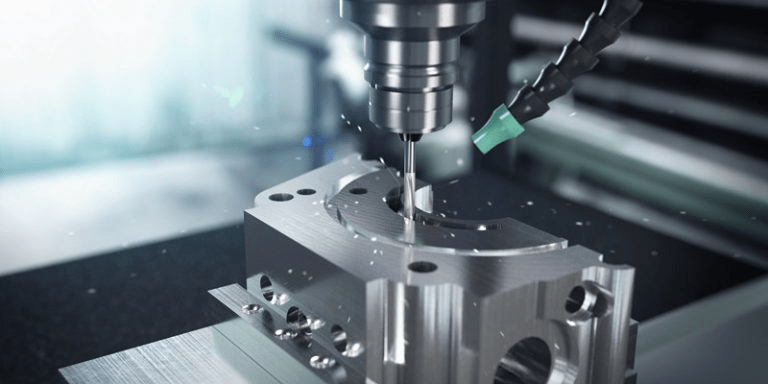

CNC milling is a precision machining process in which a rotating cutting tool removes material from a stationary workpiece to create complex shapes, contours, and detailed features. Controlled by computer numerical control (CNC) technology, the process ensures high accuracy, repeatability, and efficiency, making it one of the most widely used manufacturing techniques in industries such as aerospace, automotive, and electronics.
How it Works

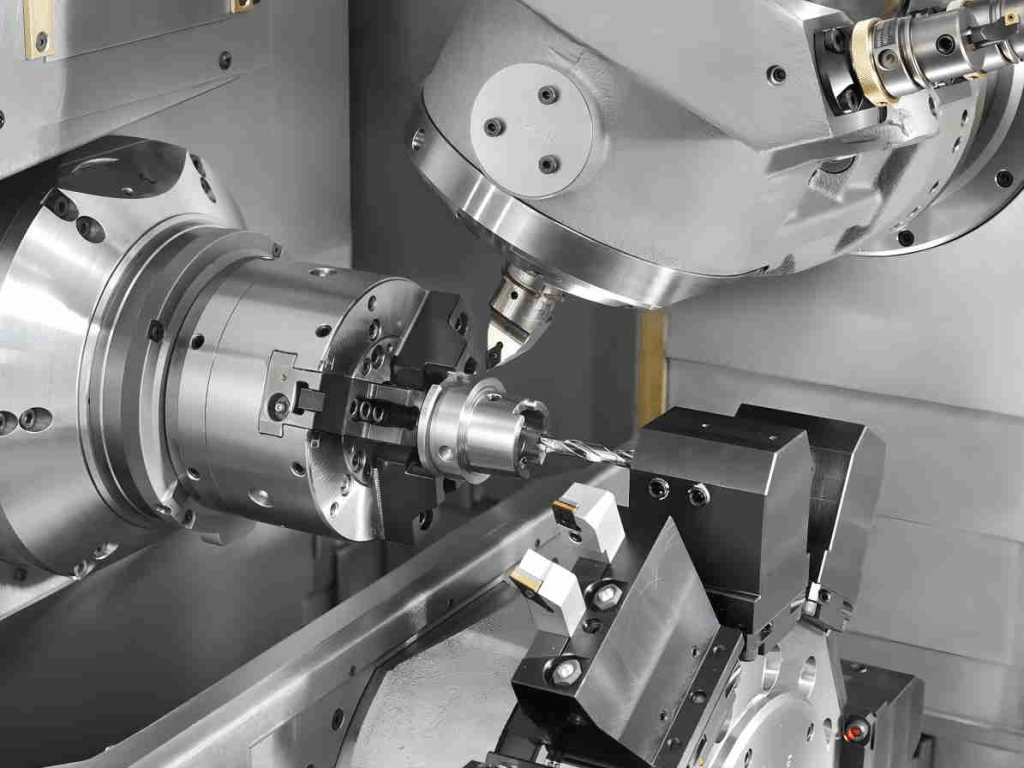

In CNC milling, the workpiece is securely clamped onto a machine table while a rotating cutting tool moves along multiple axes (X, Y, and Z) to remove material. The CNC system precisely controls the cutting speed, depth, and direction, allowing for intricate machining with minimal errors. Multi-axis CNC milling machines, such as 3-axis, 4-axis, and 5-axis CNC systems, provide additional flexibility for manufacturing complex parts.
Key Features
- The cutting tool rotates while the workpiece remains fixed on the machine table.
- Capable of multi-axis movement, enabling the production of complex shapes.
- Used for precision machining of metals, plastics, composites, and wood.
- Allows for various cutting operations, including drilling, contouring, pocketing, and engraving.

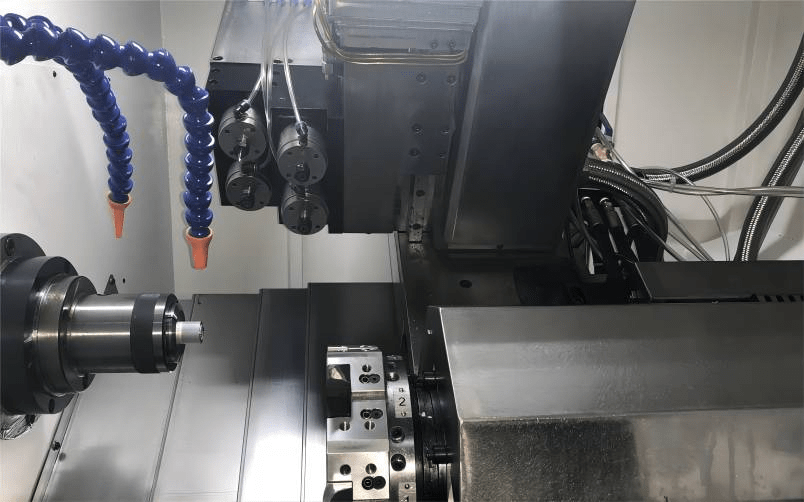

Advantages
- High Precision and Accuracy: CNC programming ensures consistent and precise machining, reducing errors.
- Versatility: Suitable for producing both simple and complex parts with detailed geometries.
- Efficiency in Mass Production: CNC milling can handle batch production with high repeatability.
- Wide Material Compatibility: Works with metals (aluminum, steel, titanium), plastics, composites, and more.

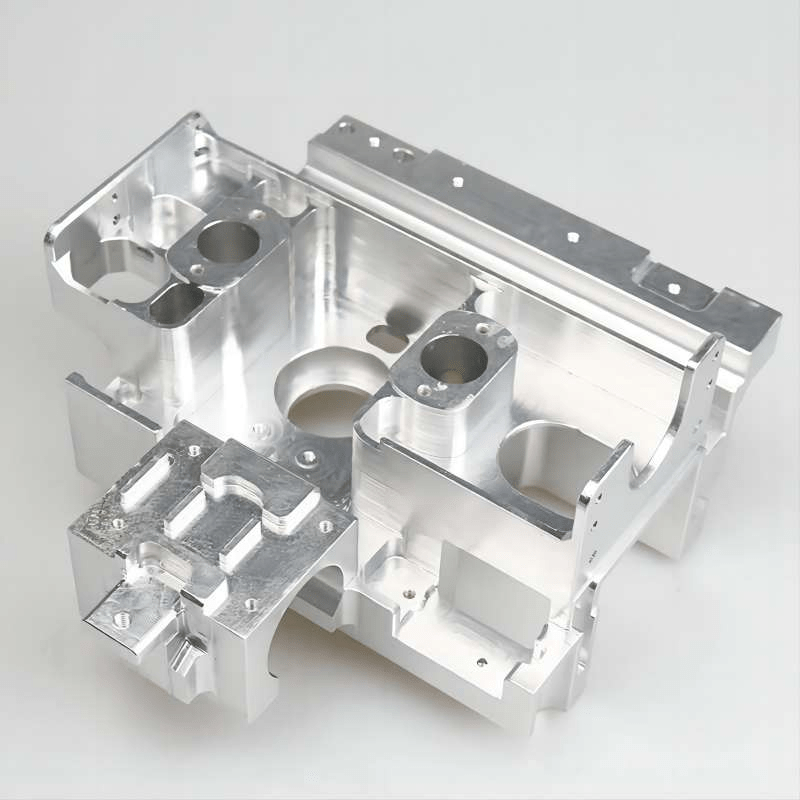

Common Applications
- Aerospace Components: Manufacturing of turbine blades, engine parts, and aircraft structures.
- Automotive Parts: Production of gears, engine blocks, and suspension components.
- Medical Devices: Fabrication of surgical instruments, implants, and prosthetics.
- Mold and Die Making: Creation of injection molds, dies, and tooling components.
CNC milling is a fundamental process in modern manufacturing, offering precision, flexibility, and efficiency for industries that require high-quality custom CNC machined parts.
Key Differences Between CNC Planing and CNC Milling
| Aspect | CNC Planing | CNC Milling |
| Cutting Motion | Cutting tool moves in a linear, back-and-forth motion | Cutting tool rotates and moves along multiple axes |
| Workpiece Movement | Workpiece remains stationary | Workpiece remains fixed while the tool moves |
| Material Removal | Intermittent (only during the forward stroke) | Continuous cutting process |
| Best For | Large, flat surfaces and straight cuts | Complex geometries, contours, and detailed machining |
| Machining Speed | Slower due to non-cutting return strokes | Faster due to continuous rotary cutting |
| Surface Finish | Produces smooth and flat surfaces with high accuracy | Can achieve various surface textures and intricate details |
| Tool Types | Single-point cutting tools | Multi-point rotating cutting tools |
| Common Materials | Large steel plates, castings, heavy-duty components | Metals, plastics, composites, and wood |
| Typical Applications | Machine beds, long keyways, and structural steel machining | Aerospace parts, molds, dies, and precision mechanical components |
| Machine Complexity | Simpler machine design | More complex CNC control and multi-axis movement |
Key Factors to Consider for Choosing Between CNC Planing and CNC Milling
Selecting between CNC planing and CNC milling depends on factors such as the size of the workpiece, the complexity of the design, production efficiency, and required surface finish.
| Factor | CNC Planing | CNC Milling |
| Workpiece Size | Suitable for large, heavy, and long components | Best for small to medium-sized parts |
| Surface Type | Ideal for machining flat, straight surfaces | Capable of machining complex shapes and contours |
| Precision and Tolerances | Provides high accuracy for flat surfaces | Offers superior precision for intricate details |
| Material Removal | Efficient for heavy-duty material removal | Effective for controlled, detailed cutting |
| Production Speed | Slower due to intermittent cutting | Faster due to continuous rotary cutting |
| Design Complexity | Best for straight, simple cuts | Suitable for multi-axis CNC machining of complex geometries |
| Industry Applications | Used in heavy machinery, construction, and steel fabrication | Applied in aerospace, automotive, medical, and electronics manufacturing |
| Material Compatibility | Works with large metal plates and castings | Suitable for metals, plastics, composites, and wood |
| Cost Considerations | More economical for large, flat surfaces | Cost-effective for batch production and precision machining |
Summary
- CNC planing is the preferred option for machining large, flat surfaces with heavy-duty material removal.
- CNC milling is ideal for intricate, high-precision components requiring multi-axis CNC machining.
Final Thoughts
Both CNC planing and CNC milling have their advantages and specific use cases. Through understanding the strengths of each process, manufacturers can optimize their machining operations to achieve the best results based on their production needs.
