CNC Threading for Internal vs. External Threads: Key Differences and Considerations

CNC threading is used to create precise internal and external threads for various industrial applications. Whether producing fasteners, pipe fittings, or mechanical components, understanding the differences between CNC threading for internal vs. external threads is essential for selecting the right tools, techniques, and parameters. This article explores the key differences, tooling requirements and best practices for CNC threading in both internal and external threads.

Understanding CNC Threading

CNC threading is a machining process of cutting threads into a workpiece using computer-controlled machines. Threads are categorized into two main types:

  • Internal Threads: Cut inside a hole or bore (e.g., tapped holes, threaded inserts).
  • External Threads: Formed on the outside of a cylindrical workpiece (e.g., screws, bolts).

Both threading types require precise control over feed rate, cutting depth, and tool engagement to ensure dimensional accuracy and surface quality.

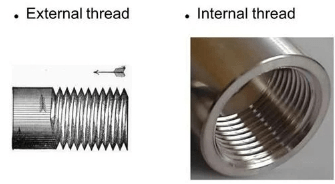

CNC Threading for Internal vs. External Threads

Key Differences Between CNC Threading for Internal vs. External Threads

This chart provides a quick reference for understanding the key differences between internal and external CNC threading, helping manufacturers optimize their CNC machining processes.

AspectInternal ThreadingExternal Threading
Thread LocationInside a hole or boreOn the outer surface of a cylindrical workpiece
Tooling UsedTaps, internal thread mills, boring bars, single-point threading toolsDies, external thread mills, threading inserts, single-point tools
Pre-Machining StepRequires a pre-drilled or bored holeRequires turning the workpiece to the correct major diameter
Chip RemovalMore challenging due to limited space; requires coolant or peck threadingEasier since chips are expelled outward
Tool AccessibilityRestricted space may require special long-reach toolsEasier access, allowing for a more straightforward machining process
Cutting VisibilityDifficult to monitor due to the enclosed spaceEasier to observe and adjust during machining
Surface FinishMore prone to burrs and chatter due to chip entrapmentGenerally smoother as the cutting area is open
Thread ToleranceMore sensitive to tool deflection and diameter controlEasier to achieve tight tolerances with rigid setups
ApplicationsNuts, pipe fittings, threaded inserts, and internal machine componentsScrews, bolts, threaded rods, and fasteners

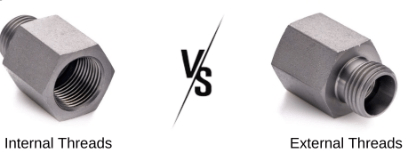

Internal vs. External Threads

CNC Threading Techniques for Internal and External Threads

Whether forming internal or external threads, selecting the right CNC threading technique is crucial for achieving accuracy, efficiency, and durability.

CNC Threading Techniques for Internal Threads

Internal threading involves cutting threads inside a hole or bore, making it more complex due to space constraints and tool accessibility.

Taping

One of the most commonly used techniques is tapping, where a tap tool is inserted into a pre-drilled hole to cut the internal threads. This method is widely used for standard thread sizes and high-volume production due to its speed and simplicity. However, tapping can be challenging for larger holes and hard materials, as tool breakage is a common issue.

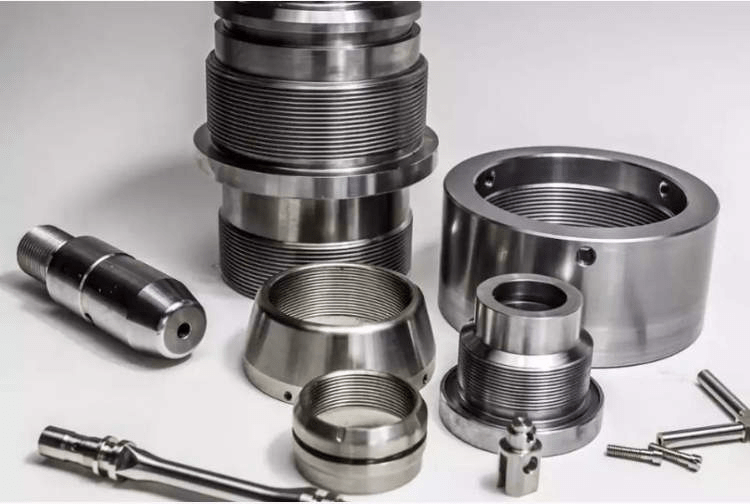

CNC thread tapping

Thread Milling

For applications requiring greater flexibility and precision, CNC thread milling is an effective alternative for CNC taping. In this process, a rotating thread mill follows a helical path to cut the threads inside the hole. Unlike tapping, thread milling allows for easy adjustments to the thread diameter using the same tool. It is particularly useful for producing non-standard or large internal threads and is ideal for materials that are difficult to machine.

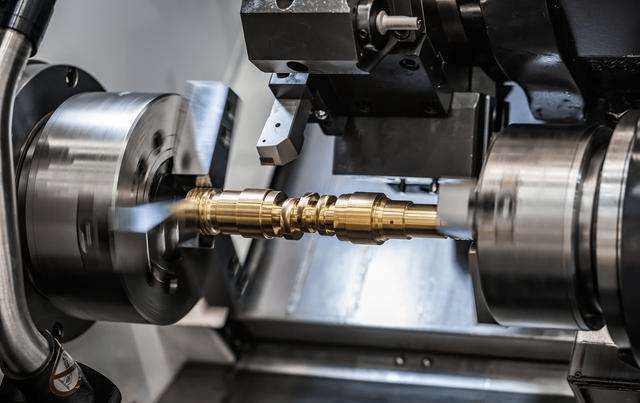

CNC thread milling machine

Single-point Threading

It involves a single-point cutting tool that gradually removes material to form the thread profile. This technique is performed on CNC lathes and offers high precision for custom or oversized internal threads. Single-point threading is also commonly used for thread repair or when working with unique thread profiles. However, it is slower than tapping and thread milling, as it requires multiple passes to achieve the final thread shape.

CNC Threading Techniques for External Threads

External threading refers to the process of cutting threads on the outer surface of a cylindrical workpiece.

Single-point Threading

One of the most precise and widely used methods for external threading is single-point threading, where a cutting tool moves along the workpiece’s outer diameter to gradually form the threads. This technique is ideal for CNC lathes and provides high accuracy, making it suitable for custom or specialized threads. However, since it requires multiple passes, it is not as fast as other methods used for high-volume production.

Thread Rolling

For mass production of external threads, thread rolling is a preferred method. Unlike cutting-based techniques, thread rolling forms threads by pressing rolling dies against the rotating workpiece. This cold-forming process results in stronger threads due to material work hardening and produces a superior surface finish. Additionally, thread rolling eliminates material waste and increases tool life. However, it is mainly suitable for softer materials that can withstand plastic deformation without cracking.

Die Threading

Another common technique for external threading is die threading, where a die tool is rotated around the cylindrical workpiece to cut threads. This method is often used for small-scale production or manual threading applications. While die threading is simple and cost-effective, it is not as precise as CNC-controlled techniques and may require post-machining adjustments for accurate thread dimensions.

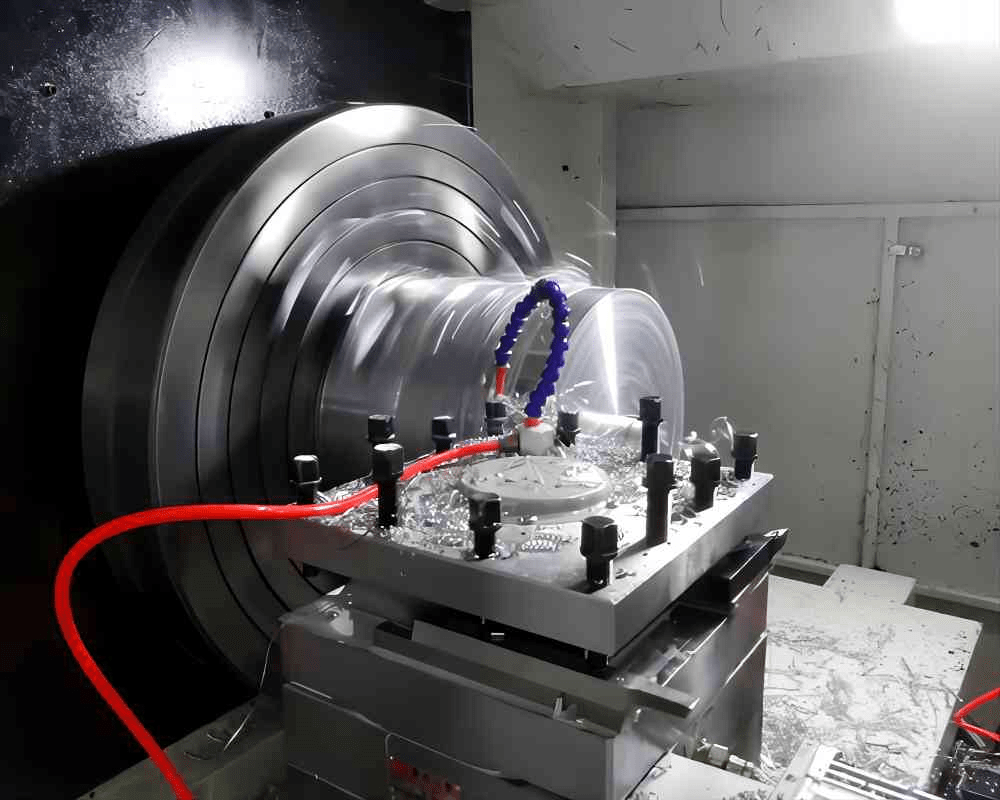

CNC threading machining

Key Considerations for Choosing the Right CNC Threading for Internal vs. External Threads

This chart provides a structured comparison of internal and external CNC threading techniques, helping manufacturers select the most suitable method based on production needs and material constraints.

ConsiderationInternal ThreadingExternal Threading
Machining MethodTapping, Thread Milling, Single-Point ThreadingSingle-Point Threading, Thread Rolling, Die Threading
Production VolumeTapping for high volume; Thread Milling for flexibilityThread Rolling for mass production; Single-Point for custom threads
Material SuitabilityHarder materials may require thread milling; tapping is faster for soft materialsThread rolling requires softer materials; single-point threading works for all
Thread SizeTapping for small threads; Thread Milling for large or custom sizesThread Rolling for standard sizes; Single-Point for larger threads
Precision & ToleranceThread Milling and Single-Point provide high precisionSingle-Point Threading offers the highest accuracy
Tool Wear & LifespanTapping tools wear out faster in hard materials; Thread Milling extends tool lifeThread Rolling extends tool life; Single-Point threading may wear inserts faster
Cost EfficiencyTapping is cost-effective for standard threads; Thread Milling is expensive but versatileThread Rolling has low long-term costs; Die threading is cheap for small batches
Surface FinishThread Milling produces a smooth finish; Tapping may require finishingThread Rolling provides the best surface finish; Single-Point may need polishing
CustomizationThread Milling allows non-standard profilesSingle-Point Threading offers the most flexibility for custom CNC threads
CNC Thread Machining

Tool Selection for CNC Threading Techniques

Selecting the right tool for CNC threading is crucial for achieving precision, efficiency, and durability in both internal and external threads. The choice of tooling depends on factors such as thread type, material properties, production volume, and machine capabilities. Understanding the different CNC threading tools available helps optimize machining processes and ensures high-quality thread formation.

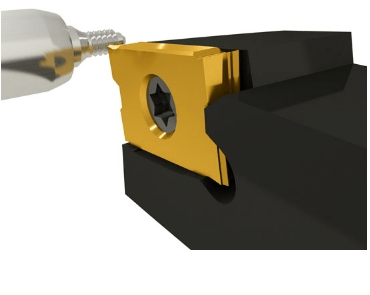

CNC threading tools

Tools of CNC Threading for Internal Threads

Taps

Taps are the most commonly used tools for internal threading. They cut threads inside pre-drilled holes and are available in various types:

  • Hand Taps: For manual threading applications.
  • Spiral Flute Taps: Suitable for through-holes and better chip evacuation.
  • Spiral Point Taps: Ideal for blind holes.
  • Carbide Taps: Preferred for harder materials due to their durability and wear resistance.
  • High-Speed Steel (HSS) Taps: Used for general applications on softer materials.

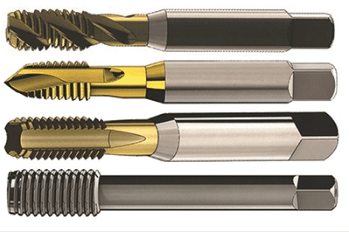

CNC Thread-Form Taps

Thread Mills

Thread mills use a rotating cutter to create threads inside a hole. This tool provides more flexibility than taps, allowing for various thread types and diameters with the same tool.

  • Solid Carbide Thread Mills: Used for harder materials.
  • Indexable Thread Mills: Ideal for higher production volumes with longer tool life.

Single-point Threading Inserts

Single-point inserts are used on CNC lathes for internal threading. The inserts gradually cut the internal thread profile in multiple passes, ensuring high precision.

  • Carbide Inserts: Provide excellent wear resistance and precision for tough materials.
  • Indexable Inserts: Offer cost-effective solutions for various threading applications.

Tools of CNC Threading for External Threads

Single-point Threading Inserts

Single-point threading inserts are also used for external threading applications. These carbide inserts gradually cut the thread profile on the outer diameter of the workpiece.

  • Full-Profile Inserts: Ideal for creating standard thread profiles.
  • Partial-Profile Inserts: Used for creating customized threads.
  • Carbide Inserts: Preferred for high-precision and durability, especially in hard materials.

Thread Rolling Dies

Thread rolling is a process where the material is plastically deformed to form the threads, rather than being cut. This method produces stronger threads with a superior surface finish.

  • Flat Dies: Typically used for producing external threads on round workpieces.
  • Cylindrical Dies: Suitable for longer thread lengths and larger diameters.
  • Planetary Dies: Used for high-volume, high-speed production.

Threading Dies

Threading dies are manually operated tools used to form threads on the outer surface of a workpiece. They are simple and cost-effective for low-volume or manual threading.

  • Adjustable Split Dies: Provide better control over thread size and tolerance.
  • Solid Dies: More suitable for consistent threading on soft materials.

Comparison of Tools for Internal and External CNC Threading

FactorInternal Threading ToolsExternal Threading Tools
Primary ToolsTaps, Thread Mills, Single-Point InsertsSingle-Point Inserts, Thread Rolling Dies, Threading Dies
Best for PrecisionThread Mills, Single-Point InsertsSingle-Point Inserts
Best for High-Volume ProductionTaps for standard holes, Thread Mills for flexibilityThread Rolling Dies for mass production
Best for Custom CNC  ThreadsThread Mills, Single-Point InsertsSingle-Point Inserts
Material CompatibilityCarbide Thread Mills for hard metals, HSS Taps for general useCarbide Inserts for hard metals, HSS Dies for soft metals
Tool LifeThread Mills and Carbide Inserts have longer life than tapsThread Rolling Dies have the longest lifespan
Surface FinishThread Mills provide a smoother finishThread Rolling Dies produce the best finish
Cost EfficiencyTaps are cost-effective for standard threadsThread Rolling minimizes material waste, reducing costs
Best for Large DiametersSingle-Point Threading and Thread MillsSingle-Point Threading on CNC Lathes

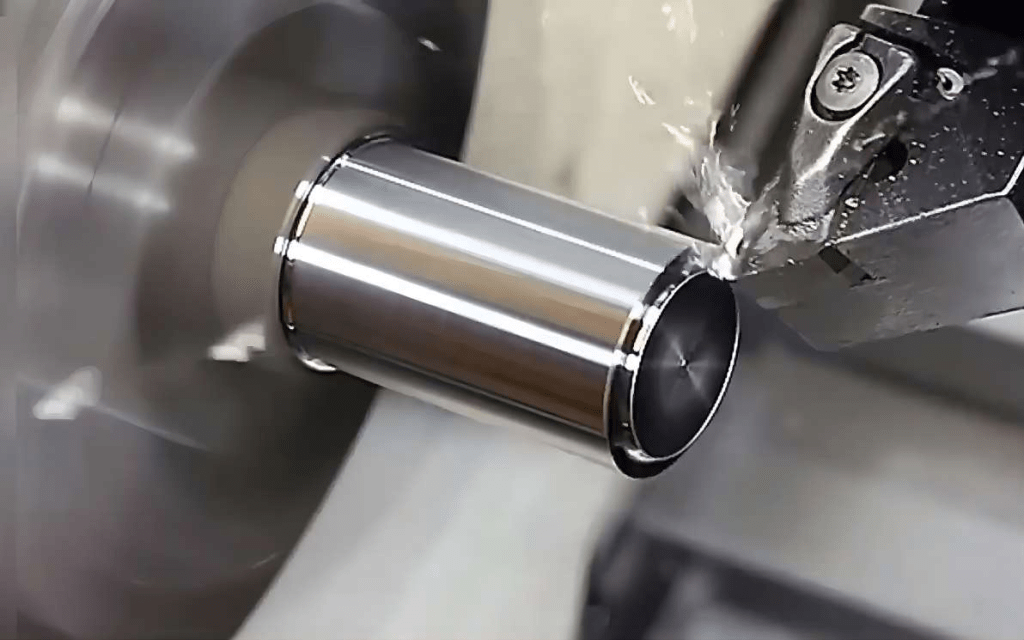

CNC threading

Summary

CNC threading for internal and external threads requires different tooling strategies and machining techniques to achieve precision and efficiency. While internal threading demands careful chip evacuation and tool accessibility, external threading benefits from a more open workspace and easier chip removal. Selecting the right tools, parameters, and threading method ensures high-quality threads that meet industry standards.
