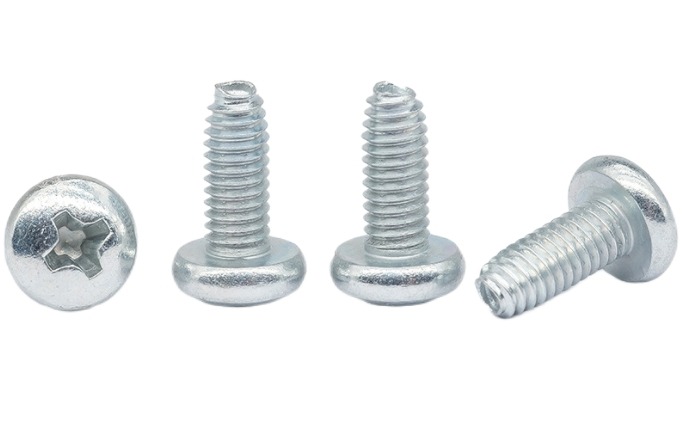

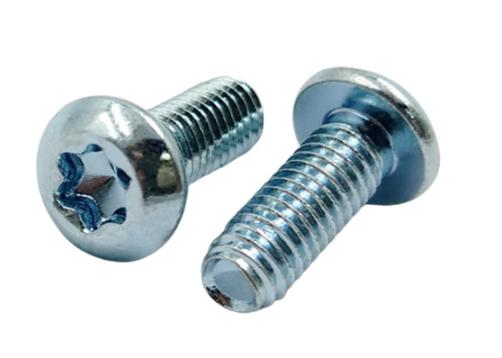

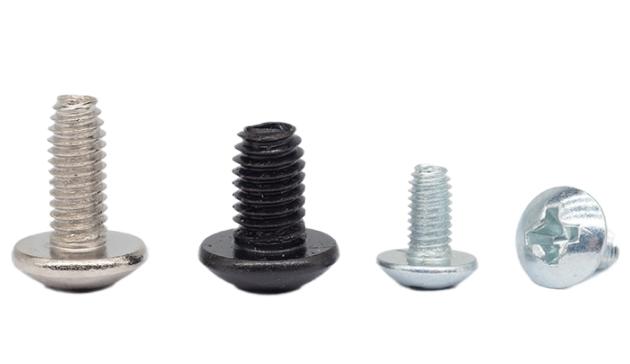

Triobular Thread Screw
Specification of Triobular Thread Screw
| Size | Pitch | Dia | |||
| C | D | ||||
| Max | Min | Max | Min | ||
| 2 | 40 | 2.04 | 1.96 | 1.96 | 1.88 |
| 2.3 | 32 | 2.34 | 2.26 | 2.26 | 2.18 |
| 2.6 | 28 | 2.64 | 2.56 | 2.55 | 2.47 |
| 3 | 24 | 3.05 | 2.95 | 2.95 | 2.85 |
| 3.5 | 20 | 3.55 | 3.45 | 3.46 | 3.34 |
| 4 | 18 | 4.05 | 3.95 | 3.91 | 3.81 |
| 5 | 16 | 5.06 | 4.9 | 4.9 | 4.78 |
| 6 | 14 | 6.08 | 5.92 | 5.88 | 5.72 |
| 8 | 12 | 8.10 | 7.9 | 7.85 | 7.65 |
Advantages of KENENG Triobular Thread Screw
- The triobular thread is less than the ordinary machine screw thread in the process of locking into the workpiece by the resistance, it is by three points on the workpiece to be tapped, in the locking process will produce a thermal effect, after cooling can play a loose-proof effect. The clearance of triobular thread can also discharge debris.

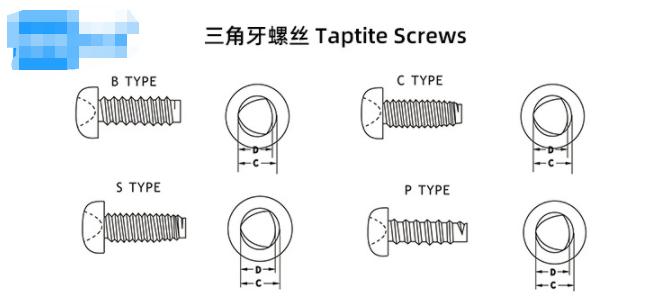

- Triobular thread has B type, C type, P type, S type, total four thread types, respectively acting on different metal plate, plastic plate, support to sample customization as per the drawings.
