Double Expansion Anchors Explained: Function, Uses and Advantages

Double expansion anchors, a versatile and reliable fastening solution, have gained significant popularity in various industries. Their unique design, combining the strength and durability of traditional anchors with enhanced holding power, makes them ideal for a wide range of applications. This article delves into the intricacies of double expansion anchors, exploring their definition, working principle, applications, and advantages over conventional expansion anchors.

What is a Double Expansion Anchor?

A double expansion anchor is a specialized type of fastener designed to provide reliable and secure attachment points in materials like concrete, brick, and other types of masonry. Unlike traditional anchors that expand only at a single point, a double expansion anchor expands at two points along its body, giving it superior gripping power in materials that might otherwise not hold a standard anchor well.

A double expansion anchor is composed of several key components that work together to create a secure hold:

• The body: The body of the anchor is usually made of zinc or other corrosion-resistant materials, designed to expand when a bolt or screw is inserted.
• Two expansion points: The anchor is split into two sections that expand outward as the screw is tightened. This double-expansion mechanism allows for greater surface area contact within the drilled hole, ensuring a stronger hold.
• The bolt or screw: When the bolt is inserted into the anchor, the expanding force is distributed along the length of the anchor, locking it securely into place.

How Does a Double Expansion Anchor Work?

The working principle of a double expansion anchor is based on its dual-sleeve design, which allows it to expand evenly at two different points when a bolt or screw is inserted. Here’s a step-by-step breakdown of how it works:

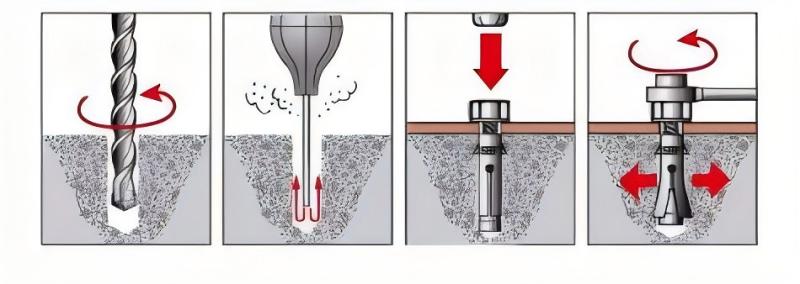

• Drilling the Hole: To install a double expansion anchor, a hole must first be drilled into the base material. The size of the hole should match the diameter of the anchor to ensure a proper fit. Typically, these anchors are used in masonry materials such as concrete, brick, and stone.
• Inserting the Anchor: Once the hole is drilled, the double expansion anchor is placed inside. Because the anchor is unexpanded at this point, it easily slides into the hole.

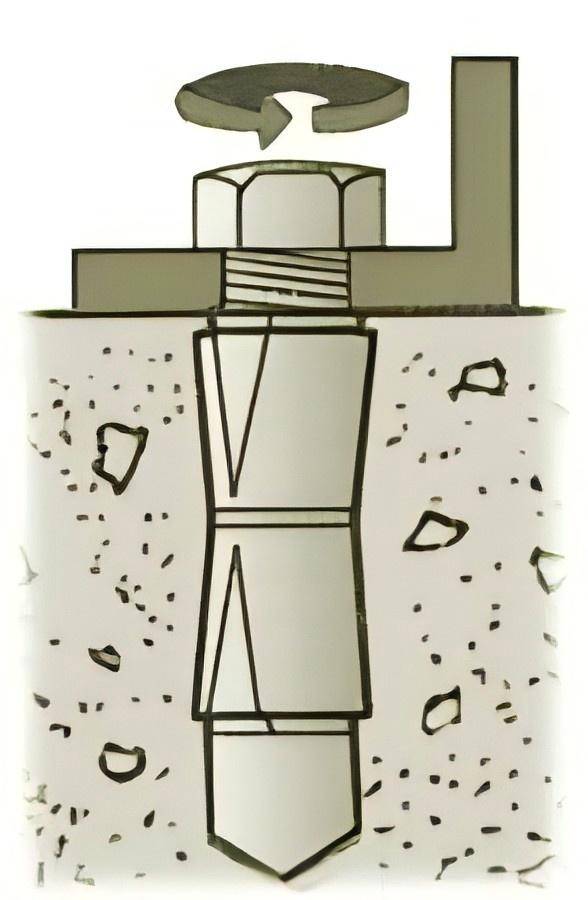

• Tightening the Bolt or Screw: A bolt or screw is then threaded into the anchor. As the bolt is tightened, it pulls the two sections of the anchor apart, causing both sleeves to expand. This dual expansion process is what sets the double expansion anchor apart from single expansion anchors, which only expand at one end.
• Gripping the Material: The expansion of both sleeves creates a firm grip within the material, distributing the holding force more evenly. This even distribution of pressure reduces the likelihood of cracking or damaging the base material, especially when working with brittle or delicate surfaces.
• Load-Bearing and Stability: Once installed, the double expansion anchor is highly resistant to loosening or pulling out under stress, making it a stable and reliable solution for securing objects or structures. Its design ensures that the load is borne across the entire length of the anchor, rather than concentrated at a single point.

The effectiveness of a double expansion anchor comes from its ability to provide high holding power while minimizing the risk of damage to the material. This makes it a preferred choice for applications where a traditional single expansion anchor might not offer sufficient security.

Applications of Double Expansion Anchors

Double expansion anchors are used across a wide range of industries due to their versatility and reliability. Their unique properties make them suitable for use in both heavy-duty industrial settings and more delicate applications where the material being fastened needs extra protection. Below are some common applications of double expansion anchors:

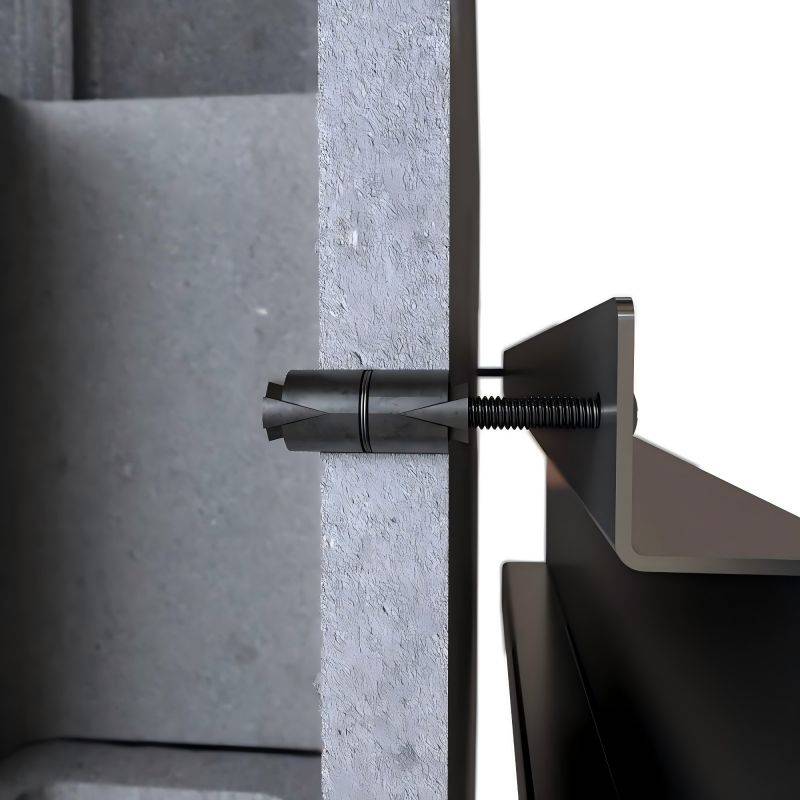

1. Construction: One of the primary industries that benefit from double expansion anchors is construction. Whether it’s for securing structural elements like beams, supports, or wall-mounted fixtures, double expansion anchors provide the strength and stability needed in a construction environment. They are especially useful in securing materials to masonry, where uneven surfaces or variable material strengths could compromise the integrity of the fastener.
2. Electrical and Mechanical Installations: Electrical panels, junction boxes, and heavy mechanical equipment often need to be mounted on walls or other surfaces. Double expansion anchors are ideal for these situations because they provide reliable support without risking damage to the base material. This is particularly important in situations where the base material is concrete or brick, as these materials can be prone to cracking under stress.
3. HVAC Systems: Heating, ventilation, and air conditioning (HVAC) systems require secure mounting for ductwork and units that may generate vibration. Double expansion anchors provide the stability and durability needed to ensure that HVAC systems remain securely in place over time.
4. Signage and Aesthetic Installations: In retail, commercial, and public spaces, double expansion anchors are often used to mount signage, artwork, and displays onto masonry walls. Their ability to provide strong support without damaging the surface makes them a preferred choice in settings where aesthetics are important.
5. Industrial Equipment and Machinery: Heavy machinery and industrial equipment require secure anchoring, especially in environments where vibrations or loads may shift over time. Double expansion anchors provide the stability needed to keep such equipment firmly in place, ensuring safety and operational efficiency.
6. Home Improvement and Renovation: For DIY enthusiasts and home renovators, double expansion anchors can be a great solution for securely mounting shelves, cabinets, or heavy mirrors onto brick or concrete walls. They offer a straightforward installation process while ensuring that heavy items remain securely fastened.

Advantages of Double Expansion Anchors Compared to Single Expansion Anchors

While single expansion anchors have been widely used for many years, double expansion anchors offer several distinct advantages, particularly in applications where the base material is fragile or prone to damage. Here are the key benefits of using double expansion anchors over their single expansion counterparts in the following table:

Advantages	Double Expansion Anchors	Single Expansion Anchors
Holding Power	Provides superior holding power with two expansion points.	Lower holding power with a single expansion point.
Risk of Material Damage	Reduces risk of cracking or chipping in fragile materials by distributing pressure evenly.	Higher risk of material damage due to concentrated expansion pressure.
Performance in Soft/Fragile Materials	Ideal for softer or brittle materials (e.g., brick, stone) due to even pressure distribution.	May cause damage to soft or fragile materials.
Stability and Load Distribution	Offers enhanced stability and evenly distributes load, ideal for heavy or vibrating objects.	Stability is limited with uneven load distribution.
Adaptability to Irregular Surfaces	Adapts better to uneven surfaces, voids, or cracks in masonry materials.	Less adaptable to irregular surfaces, prone to slippage or loosening.
Corrosion Resistance	Available in corrosion-resistant materials like stainless steel, enhancing durability.	Corrosion resistance varies, often less durable in harsh environments.
Ease of Installation	Easy to install with less risk of over-tightening and anchor failure.	Higher risk of over-tightening, which can lead to anchor failure.

In short, the double expansion anchor represents a significant advancement in anchoring technology, offering superior performance, especially in materials that are prone to cracking or damage. Its dual expansion design ensures even pressure distribution and greater holding power, making it a reliable choice for securing heavy loads or working in delicate environments. Whether in construction, mechanical installations, or industrial applications, double expansion anchors provide enhanced stability, durability, and safety, outperforming single expansion anchors in many scenarios.
