Elastic Vibration Support

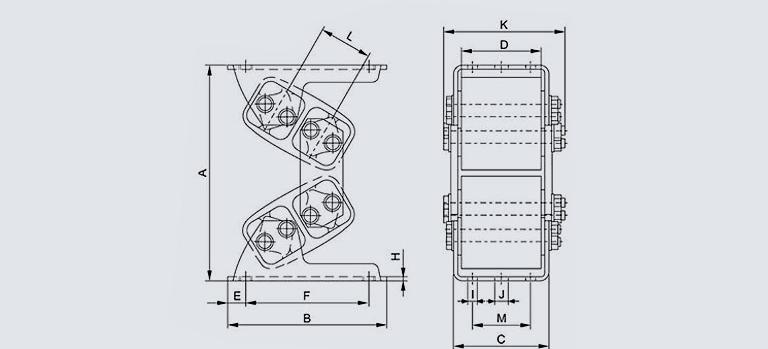

Specifications of Elastic Vibration Support
| Model | Material |
Load bearing range [N]/unit |
Natural frequency [Hz] |
A No Load |
A* Maximum Load |
B | C | D | E | F | H | I | K | L | M |
Weight [Kg] |
|
| AB-D 18 | Steel alloy | 500-1200 | 6.1-4.4 | 137 | 112 | 115 | 61 | 50 | 12.5 | 90 | 3 | 9 | 9 | 74 | 31 | 30 | 1.3 |
| AB-D 27 | Steel alloy | 1000-2500 | 5.4-3.9 | 184 | 148 | 150 | 93 | 80 | 15 | 120 | 4 | 9 | 11 | 116 | 44 | 50 | 2.9 |
| AB-D 38 | Steel alloy | 2000-4000 | 4.3-3.4 | 244 | 199 | 185 | 118 | 100 | 17.5 | 150 | 5 | 11 | 14 | 147 | 60 | 70 | 7.5 |
| AB-D 45 | Steel alloy | 3000-6000 | 3.7-3.1 | 298 | 240 | 220 | 132 | 110 | 25 | 170 | 6 | 14 | 18 | 168 | 73 | 80 | 11.5 |
| AB-D 50 | Steel alloy | 4000-9000 | 3.7-2.9 | 329 | 272 | 235 | 142 | 120 | 25 | 185 | 6 | 14 | 18 | 168 | 78 | 90 | 22 |
| AB-D 50-1.6 | Steel alloy | 6000-12000 | 3.6-2.9 | 329 | 272 | 235 | 186 | 160 | 25 | 185 | 8 | 14 | 18 | 214 | 78 | 90 | 25.5 |
Outstanding Features of Elastic Vibration Support
- Long lifespan, no fracture, metal fatigue, high material strength.
- Maintenance-free, wear-resistant, no additional maintenance required for daily use.
- Low noise, high performance, stable vibration table, avoiding excessive shaking.
Advantages of Springs Using Elastic Vibration Support, Compared to Traditional Springs
1. Maintenance-free, wear-resistant
2. Will not break, no noise
3. The performance does not deteriorate when subjected to strong impact or overload, and the linear guidance function ensures more efficient transmission.
4. Vibration frequency of 2Hz, providing 98% isolation effect
5. There will be no irregular large vibration or overall resonance phenomenon during the start and stop of the equipment.

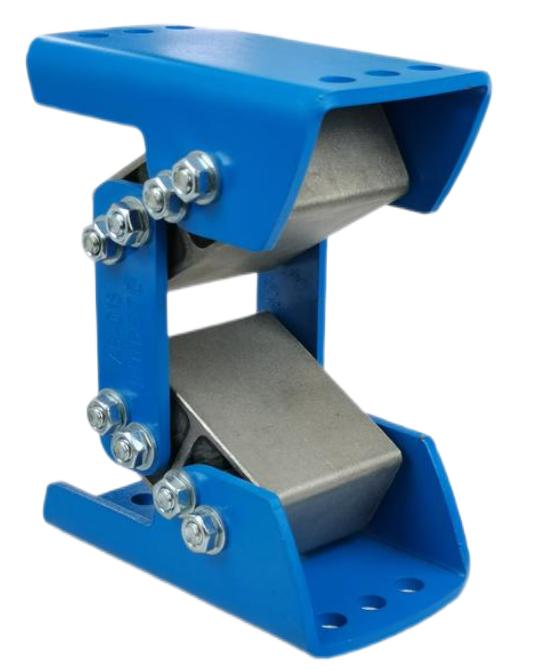

Why Choose KENENG As a Reliable Supplier of Elastic Vibration Support
1. KENENG has many years of experience in high-precision hardware CNC lathe machining.
2. We will use high-precision measuring tools and advanced testing equipment to inspect all parts and processes from incoming materials to final inspection. Keneng ensures that only qualified products are delivered to customers. Quality control is the top priority, and every step of the process is carefully controlled. Strict testing of products is carried out to ensure product quality
3. Competitive pricing: We have stable raw material suppliers who can quickly provide customers with competitive quotes.Mature technology and rich experience in surface strengthening treatment, strong pressure treatment, elimination of internal stress during use, making elasticity more stable.
4. Engineering support: No matter how many parts customers require, we have a professional team of engineers to provide technical support.
