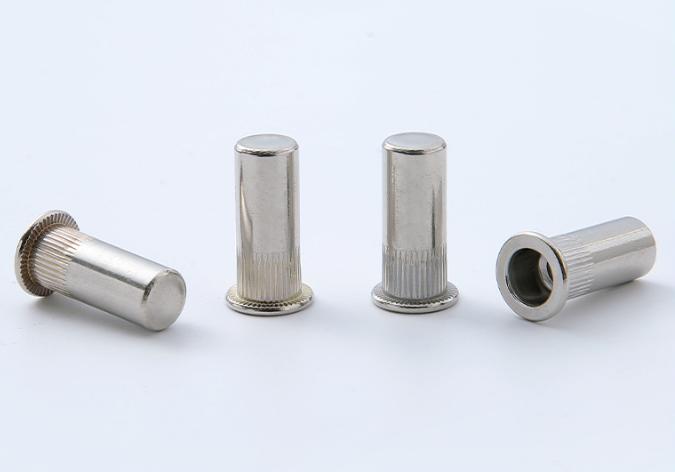

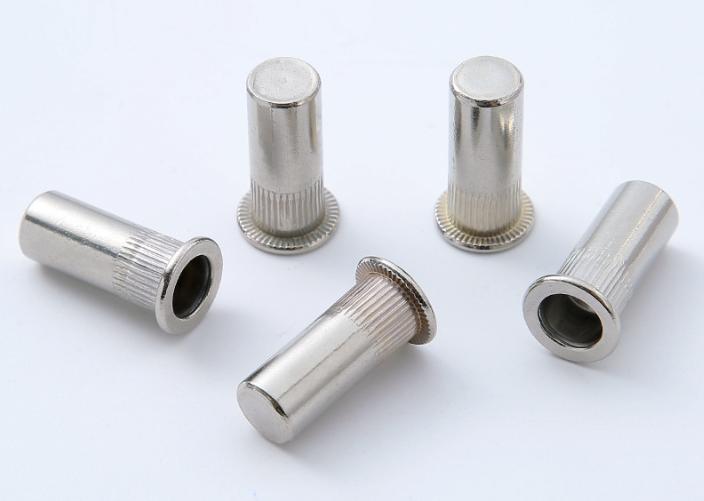

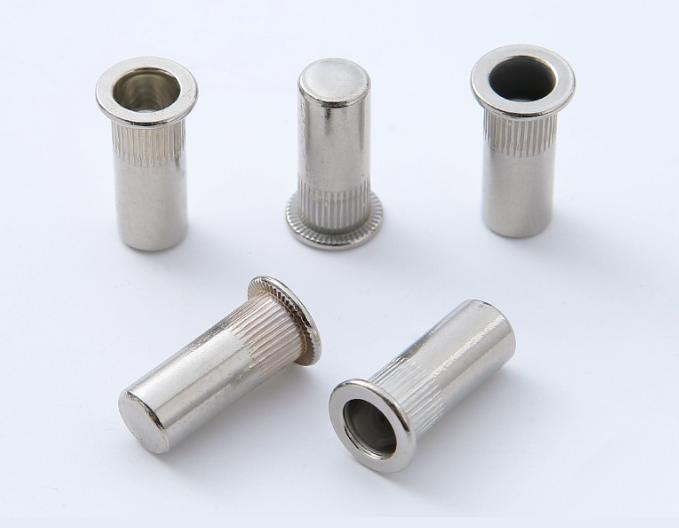

Flat Head Rivet Nut With Knurl Close End

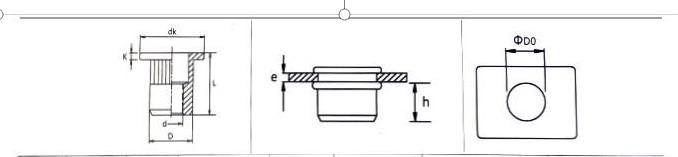

Specification of Flat Head Rivet Nut with Knurl Close End
| Thread (d) | length (L) | head diameter(dk) | riveting range(min-max) | rod diameter(D) | head thickness(k) | mounting hole (0+0.15/+0.05) | riveted length(h ref) |
| M3 | 15 | 7 | 0.5-2.0 | 5 | 0.8 | 5 | 11 |
| M4 | 17 | 9 | 0.5-2.0 | 6 | 0.8 | 6 | 13 |
| M5 | 19 | 10 | 0.5-3.0 | 7 | 1 | 7 | 14 |
| M6 | 23.5 | 13 | 0.5-3.0 | 9 | 1.2 | 9 | 17 |
| M8 | 27.5 | 15 | 0.5-3.5 | 11 | 1.5 | 11 | 21 |
| M10 | 34 | 17 | 0.5-3.5 | 13 | 1.8 | 13 | 26 |
| M12 | 38 | 19 | 0.5-4.5 | 15 | 1.8 | 15 | 30 |
Application of Flat Head Rivet Nut with Knurl Close End
They are widely used in fields of sheet metal, chassis, cabinets, furniture, elevators, air conditioners, automobiles, shipbuilding, high-speed rail, aviation aircraft, railway tracks and other manufacturing. After riveted, they are with a good waterproof and sealing characteristic and will be more suitable for some application with the requirement of waterproof or difficult riveting.
Advantages of Flat Head Rivet Nut with Knurl Close End
1.Easy to use, no noise, beautiful appearance, it’s a good replacement for the traditional welding nut process
2.Small space occupied for installation, it is more convenient to use than the installation of welding nuts and rivet nuts.
