Hanging Ring Nuts

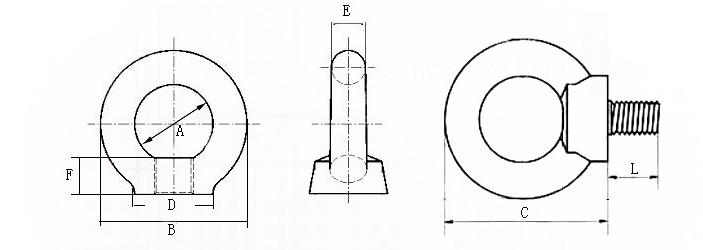

Specifications of Hanging Ring Nuts
| Size | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | L(mm) |
| M3 | 7 | 12.92 | 14.1 | 7 | 3.14 | 4 | 9.51 |
| M4 | 10.5 | 17.77 | 19.32 | 8.5 | 4.14 | 5 | 10.83 |
| M5 | 12.2 | 22.43 | 21.7 | 11.7 | 4.95 | 6 | 10.86 |
| M6 | 16.42 | 27.12 | 29.6 | 16 | 5.36 | 6.5 | 12 |
| M8 | 20.2 | 35.7 | 35.2 | 18.6 | 7.3 | 8 | 14 |
| M10 | 25.6 | 42.82 | 43.5 | 23.3 | 8.6 | 9.5 | 18 |
| M12 | 30.2 | 51.1 | 51 | 28.4 | 10.3 | 10.8 | 20 |
| M14 | 30.2 | 52.6 | 54.3 | 28.5 | 11.2 | 13 | 20 |
| M16 | 34.7 | 59.8 | 59.3 | 32.6 | 12.5 | 14.5 | 20 |
| M18 | 37.06 | 67.5 | 66.8 | 37.4 | 15.35 | 18.7 | 20 |
| M20 | 40 | 69 | 66.8 | 41.6 | 14.2 | 16.68 | 30 |
| M24 | 50.33 | 84.5 | 86 | 47 | 17.3 | 19.72 | 37 |
| M27 | 42.88 | 85.62 | 83.84 | 49 | 21.69 | 41.5 | |
| M30 | 54.3 | 102.76 | 104.3 | 54.6 | 24 | 45 | |
| M36 | 67.4 | 124..01 | 122.9 | 72.9 | 26.9 | 48 |
Outstanding Features of Hanging Ring Nuts
- Flat and smooth, the surface is flat, smooth, and free of burrs. The workmanship is high-quality, sturdy, and durable.
- Depth of thread, deep threads, uniform pitch, more secure tightening, and more reassuring use.
- Standard size, European/national standards, standard specifications, time-saving and labor-saving installation.
Why Choose KENENG as A Trustworthy Supplier of Hanging Ring Nuts
1. KENENG has rich experience in high-precision screw, nut and other fastener’s cold-heading process.
2. We will use high-precision measuring tools and advanced testing equipment to inspect all parts and processes from incoming materials to final inspection. Keneng ensures that only qualified products are delivered to customers. Quality control is the top priority, and every step of the process is carefully controlled. Strict testing of products is carried out to ensure product quality
3. Competitive pricing: We have stable raw material suppliers who can quickly provide customers with competitive quotes.Mature technology and rich experience in surface strengthening treatment, strong pressure treatment, elimination of internal stress during use, making elasticity more stable.
4. Engineering support: No matter how many parts customers require, we have a professional team of engineers to provide technical support.
Customized cooperation methods for processing
1. Brand customization, one stop OEM/ODM processing services work together to create your exclusive brand.
2. Sample customization, provide product samples or drawings, and you will have high-quality products.
3. Wholesale of finished products, our own factory has sufficient supply of goods, fast delivery, and on-time delivery.
