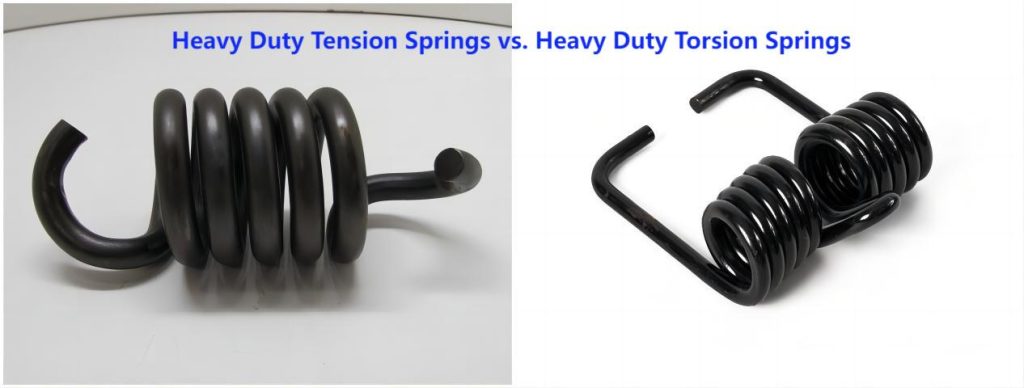

Heavy Duty Tension Springs vs. Torsion Springs: How to Choose the Right Type
In the realm of mechanical engineering, springs play a crucial role in energy storage and release. Two prominent types of heavy-duty springs are the heavy duty tension spring and the heavy duty torsion spring. While both serve the fundamental purpose of storing and releasing energy, they do so through different mechanisms and are applied in various contexts. This article delves into the shared functions, functional differences, design and application differences, material selection, and specific applications of these springs, offering a comprehensive understanding of their roles and uses in modern engineering.
Shared Functions Between Heavy Duty Tension Springs and Torsion Springs
Heavy duty tension springs and heavy duty torsion springs are designed to store and release energy, albeit in distinct ways. The common thread between them is their ability to return to their original shape after the external force is removed. This characteristic is crucial in many mechanical systems where controlled energy release is needed.
1. Energy Storage Mechanism
- Heavy Duty Tension Spring: This type of spring stores energy through stretching. When a force is applied to stretch the spring, it accumulates potential energy, which is released when the force is removed, allowing the spring to return to its original length. This mechanism is fundamental in applications requiring linear motion.
- Heavy Duty Torsion Spring: In contrast, the heavy duty torsion spring stores energy through twisting. When a torque is applied, the spring twists around its axis, storing potential energy. Upon removal of the torque, the spring returns to its original orientation, releasing the stored energy. This twisting mechanism is ideal for applications that require rotational movement.
2. Energy Release
Both types of springs are designed to revert to their original shape or position once the external force is removed. This energy release is a key factor in their ability to perform work in mechanical systems, whether through linear or rotational motion.
Functional Differences
While heavy duty tension springs and heavy duty torsion springs share the basic principle of energy storage and release, their applications and design are tailored to their specific functions.

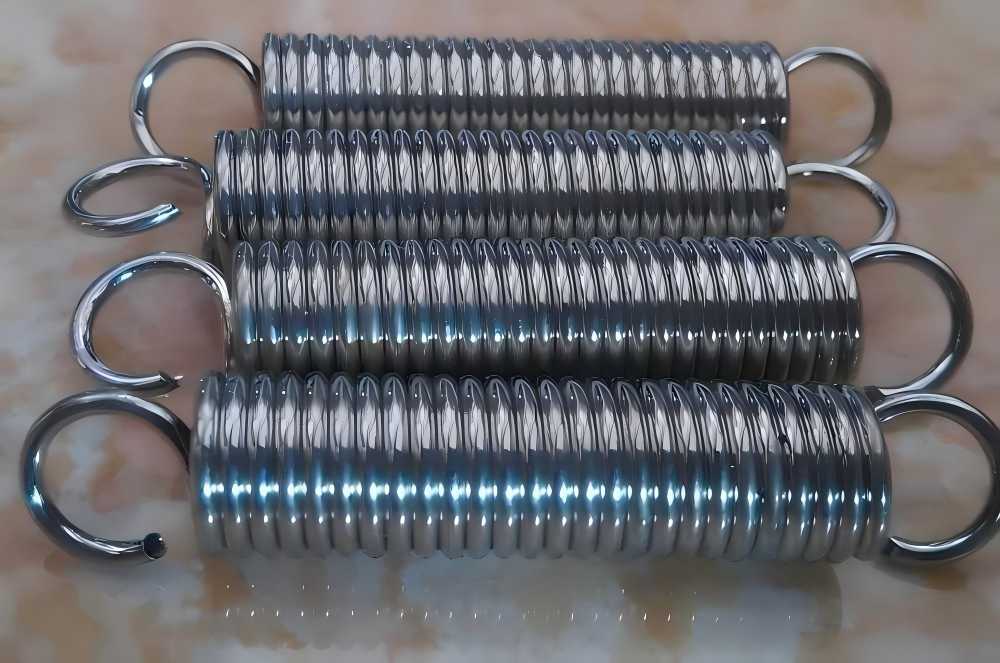

1. Heavy Duty Tension Spring
- Application: Tension springs are primarily used to provide linear force or tension. They are ideal for applications that require a controlled and consistent linear force. Common uses include door hinges, where the spring provides the necessary force to keep the door in position, and bowstrings, where the spring’s tension is essential for the function of the bow.
- Design Considerations: The design of a heavy duty tension spring involves ensuring that the coils are parallel and evenly spaced. This arrangement allows the spring to resist stretching forces uniformly, ensuring reliable performance in its intended application.

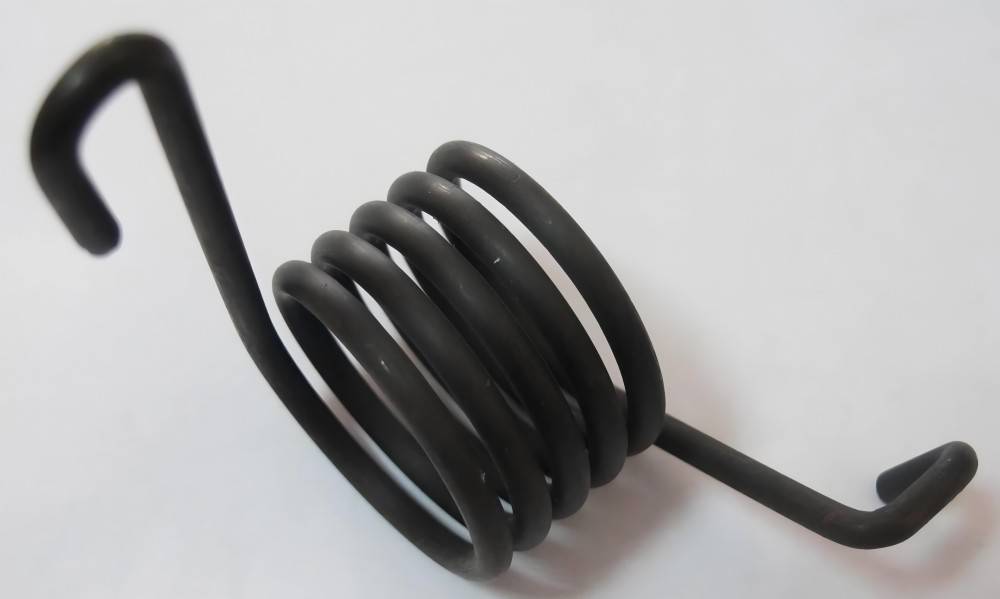

2. Heavy Duty Torsion Spring
- Application: Torsion springs are designed to provide torque or rotational force. They are used in applications that require control of rotational movement. Typical examples include automotive suspension systems, where the spring absorbs and adjusts the vehicle’s motion, and door lock mechanisms, where the spring provides the rotational force needed to engage or disengage the lock.
- Design Considerations: Torsion springs are designed with coils arranged in a helical pattern around an axis. This design enables the spring to store and release energy effectively during twisting, making it suitable for applications that involve rotational forces.
Design and Application Differences
The design of heavy duty tension springs and heavy duty torsion springs reflects their specific functions and applications. Understanding these design differences is essential for selecting the appropriate spring for a given application.
1. Heavy Duty Tension Spring
- Design Features: Tension springs are characterized by their parallel coil arrangement. This design ensures that the spring can withstand stretching forces evenly across its length. The coils are usually tightly wound to provide the required tension and ensure durability.
- Application Suitability: Tension springs are best suited for applications where precise control of linear motion is required. They are commonly used in machinery and equipment where consistent force is needed to maintain operation.
2. Heavy Duty Torsion Spring
- Design Features: Torsion springs have coils that are helically wound around an axis. This design allows the spring to effectively store energy through twisting. The coils are designed to handle torsional stress and provide the necessary rotational force.
- Application Suitability: Torsion springs excel in applications that involve rotational movement. Their design makes them ideal for use in systems where torque and rotational forces need to be controlled and adjusted.
Differences in Material Selection
The choice of material for heavy duty tension springs and heavy duty torsion springs is critical to their performance and durability. Different applications and working conditions require specific material properties.
1. Heavy Duty Tension Spring
- Material Requirements: Tension springs need materials with high elastic limits and good fatigue life, as they experience repeated stretching and relaxation. Common materials include high carbon steel, which provides the necessary strength and durability, alloy steel for enhanced performance under varying conditions, and stainless steel for its corrosion resistance.
- Material Considerations: The selected material should offer a balance between strength, flexibility, and resistance to environmental factors such as corrosion and temperature fluctuations.
2. Heavy Duty Torsion Spring
- Material Requirements: Torsion springs require materials with high torsional fatigue resistance and high elastic modulus. The materials must withstand twisting forces without losing their mechanical properties. Common materials include piano wire, known for its high tensile strength and durability, stainless steel for its corrosion resistance, and spring steel for its excellent performance in high-stress applications.
- Material Considerations: The material should be chosen based on the specific torque requirements and environmental conditions to ensure optimal performance and longevity.
Factors for Selecting the Right Spring Type
Choosing the appropriate spring type involves considering several key factors to ensure it meets the mechanical and functional requirements of the application.
- Load Direction and Deformation:
- Compression Springs: Suitable for axial compression forces, often used in shock absorbers and mechanical components.
- Tension Springs: Ideal for applications requiring tensile force, such as hooks and tension control devices.
- Torsion Springs: Best for applications involving rotational forces, such as hinges and clocks.
- Load and Stress Requirements: The material, specifications, and dimensions of the spring should be selected based on the anticipated load and stress to ensure the spring can handle the required force and deformation without failure.
- Functionality and Working Range: Springs are used for energy storage, shock absorption, and precise control. The choice of spring type should align with the specific functionality required in the application.
- Working Environment and Conditions: Consider factors such as temperature, humidity, and exposure to chemicals when selecting the spring material and coating. This ensures the spring’s durability and performance in its operational environment.
- Installation and Usage Requirements: Evaluate the installation space, frequency of use, and maintenance needs to choose a spring that fits the application and ensures reliable operation.
- Safety and Reliability: Ensure that the selected spring meets relevant standards and safety regulations to prevent hazards and ensure reliable performance.
Conclusion
Heavy duty tension springs and heavy duty torsion springs are essential components in various mechanical systems, each serving distinct functions through their unique designs. Understanding their shared and functional differences, material requirements, and specific applications is crucial for selecting the right spring for a given application. By carefully considering these factors, engineers and designers can ensure optimal performance and reliability in their mechanical systems.
