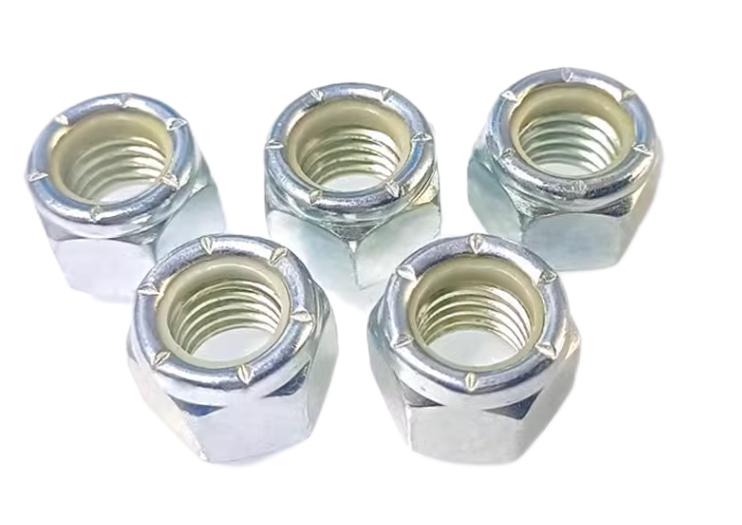

Hex Lock Nut with Nylon Insert (Inch series)

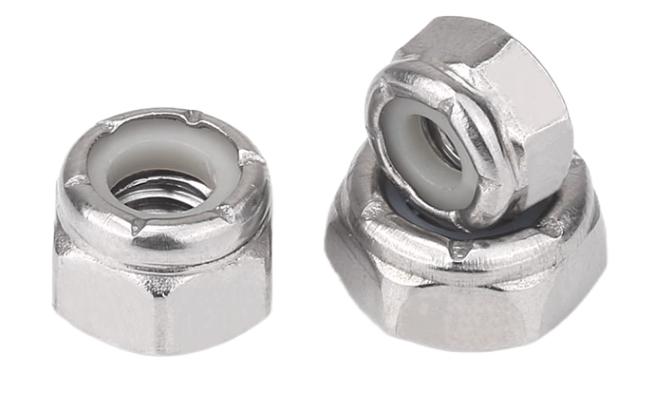

Hex Lock Nut with nylon insert

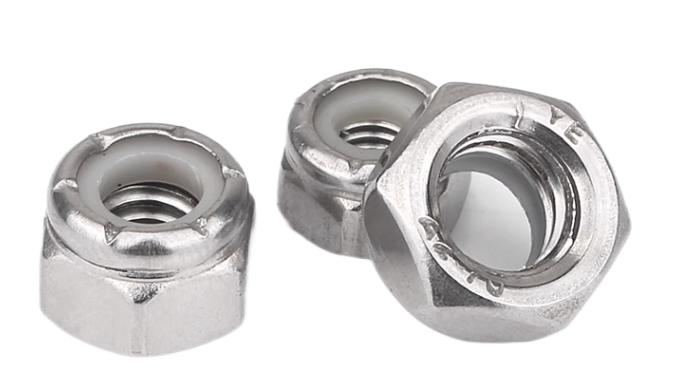

Hex Lock Nuts with Nylon Insert
Nylon Insert Hex Lock Nuts
Nylon Insert Hex Lock Nut

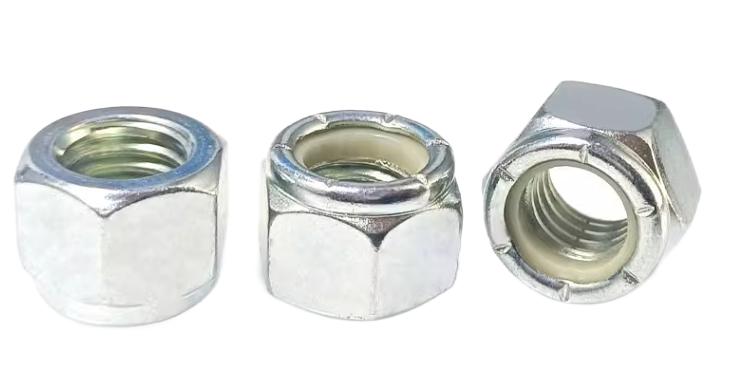

Nylon Insert Hex Lock Nut Supplier
  • Hex Lock Nut with nylon insert
  • Hex Lock Nuts with Nylon Insert
  • Nylon Insert Hex Lock Nuts
  • Nylon Insert Hex Lock Nut
  • Nylon Insert Hex Lock Nut Supplier
    • Size:  #4 ,#6, #8, #10 ,1/4”, 5/16” ,3/8”, 7/16”,1/2” ,9/16”,5/8”,3/4”, 7/8”,1” ,1-1/8”,1-1/4”, 1-1/2”
    • Material: Carbon steel, stainless steel
    • Finishing: Zinc plated
    • Standard: ASME B18.16.6
    • Application: It is widely used in national defense, Marine, computer, electronics, automobile, mold, medicine, biochemistry, aerospace, railway, nuclear power, wind power, thermal power, construction machinery, mining machinery, construction machinery, elevator and other fields.

    Are You an OEM Manufacturer?

    Yes

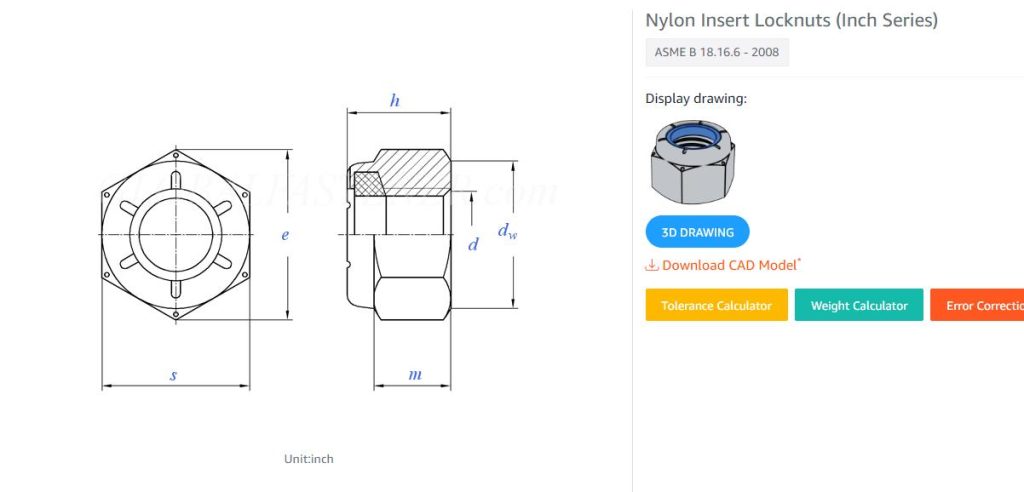

    Specifications of Hex Lock Nut with Nylon Insert

    Specifications of Hex Lock Nut with Nylon Insert

    Nominal Diameter
    d     		1/4 5/16 3/8 7/16 1/2 9/16 5/8 3/4 7/8 1 1-1/8 1-1/4 1-3/8 1-1/2
    d 0.2500 0.3125 0.3750 0.4375 0.5000 0.5625 0.6250 0.7500 0.8750 1.0000 1.1250 1.2500 1.3750 1.5000
    PP UNC 20 18 16 14 13 12 11 10 9 8 7 7 6 6
    UNF 28 24 24 20 20 18 18 16 14 12 12 12 12 12
    S max 0.439 0.502 0.564 0.627 0.752 0.877 0.940 1.064 1.252 1.440 1.627 1.815 2.008 2.197
    min 0.43 0.489 0.551 0.616 0.736 0.861 0.922 1.052 1.239 1.427 1.614 1.801 1.973 2.159
    e min 0.488 0.557 0.628 0.698 0.840 0.982 1.051 1.191 1.403 1.619 1.833 2.046 2.259 2.473
    h max 0.328 0.359 0.468 0.468 0.609 0.656 0.765 0.890 0.999 1.078 1.203 1.422 1.609 1.640
    min 0.298 0.329 0.438 0.438 0.579 0.626 0.735 0.860 0.969 1.016 1.141 1.360 1.547 1.578
    m min 0.225 0.25 0.335 0.324 0.464 0.469 0.593 0.742 0.79 0.825 0.930 1.125 1.282 1.313
    dw min 0.416 0.475 0.534 0.597 0.712 0.830 0.890 1.033 1.230 1.418 1.605 1.793 1.962 2.148

    Advantages of Hex Lock Nut with Nylon Insert

    1. Excellent locking function.
    2. Made of High-quality raw material, long performance life.
    3. A variety of specifications are in stock.

    Materials we can use on Hex Lock Nut with Nylon Insert

    Application industries of Hex Lock Nut with Nylon Insert
