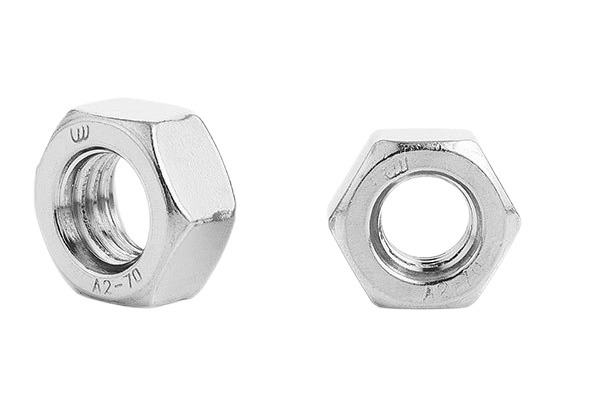

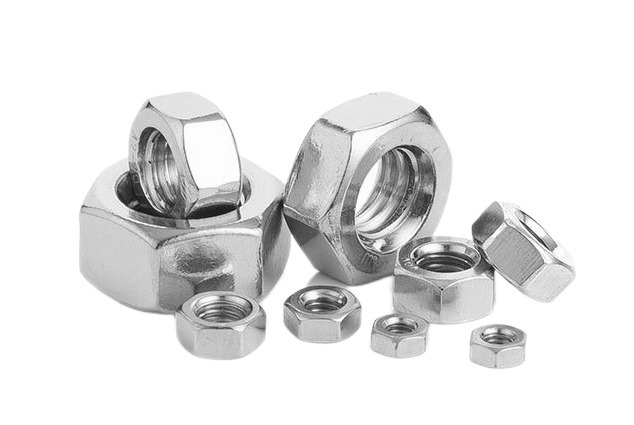

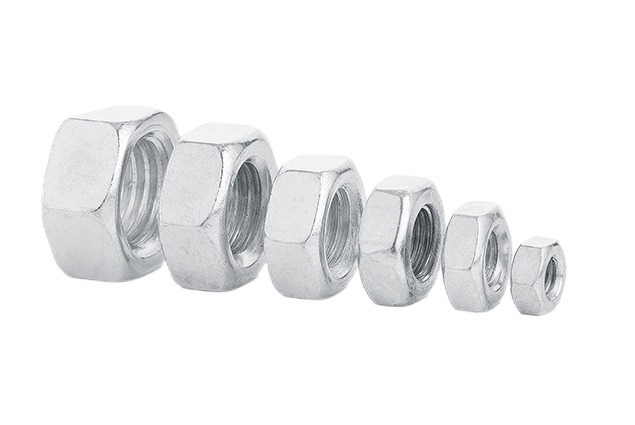

Custom Hex Nut
- Size: M3~M36
- Material: ML08 SWRCH35K 10B21 45# Stainless steel
- Grade: 6, 8, 10
- Hardness: 26-36 HRC
- Finishing: Plating (Zinc, Nickel, etc.), black oxide, Dacromet
- Standard: GB6170, Q6171 (Fine thread) ,DIN934
- Application: Lifting machine, pressure machine, and vibrations are generally used, the car’s front and rear wheel shaft screw are also used.
Specifications of Hex Nut
| Model | Specification | Tooth spacing | S | Thickness(m) | ||
| D | P | max | min | max | min | |
| GB6170 | M3 | 0.5 | 5.5 | 5.32 | 2.4 | 2.15 |
| GB6170 | M4 | 0.7 | 7 | 6.78 | 3.2 | 2.9 |
| GB6170 | M5 | 0.8 | 8 | 7.78 | 4.7 | 4.4 |
| DIN934 | M5 | 0.8 | 8 | 7.78 | 4 | 3.7 |
| GB6170 | M6 | 1.0 | 10 | 9.78 | 5.2 | 4.9 |
| DIN934 | M6 | 1.0 | 10 | 9.78 | 5 | 4.7 |
| GB6170 | M8 | 1.25 | 13 | 12.73 | 6.8 | 6.44 |
| GB6171 | M8 | 1.0 | 13 | 12.73 | 6.8 | 6.44 |
| DIN934 | M8 | 1.3 | 13 | 12.73 | 6.5 | 6.14 |
| GB6170 | M10 | 1.5 | 16 | 15.73 | 8.4 | 8.04 |
| GB6171 | M10 | 1.25 | 16 | 15.73 | 8.4 | 8.04 |
| M10 | 1.0 | 16 | 15.73 | 8.4 | 8.04 | |
| DIN934 | M10 | 1.5 | 17 | 16.73 | 8 | 7.64 |
| GB6170 | M12 | 1.75 | 18 | 17.73 | 10.8 | 10.37 |
| GB6171 | M12 | 1.5 | 18 | 17.73 | 10.8 | 10.37 |
| M12 | 1.25 | 18 | 17.73 | 10.8 | 10.37 | |
| DIN934 | M12 | 1.75 | 19 | 18.67 | 10 | 9.64 |
| GB6170 | M14 | 2.0 | 21 | 20.67 | 12.8 | 12.1 |
| GB6171 | M14 | 1.5 | 21 | 20.67 | 12.8 | 12.1 |
| DIN934 | M14 | 2.0 | 22 | 21.67 | 11 | 10.3 |
| GB6170 | M16 | 2.0 | 24 | 23.67 | 14.8 | 14.1 |
| GB6171 | M16 | 1.5 | 24 | 23.67 | 14.8 | 14.1 |
| GB6170 | M18 | 2.5 | 27 | 26.16 | 15.8 | 15.1 |
| GB6171 | M18 | 1.5 | 27 | 26.16 | 15.8 | 15.1 |
| GB6170 | M20 | 2.5 | 30 | 29.16 | 18 | 16.9 |
| GB6171 | M20 | 2.0 | 30 | 29.16 | 18 | 16.9 |
| M20 | 1.5 | 30 | 29.16 | 18 | 16.9 | |
| GB6170 | M22 | 2.5 | 34 | 33 | 19.4 | 18.1 |
| GB6171 | M22 | 2.0 | 34 | 33 | 19.4 | 18.1 |
| M22 | 1.5 | 34 | 33 | 19.4 | 18.1 | |
| GB6170 | M24 | 3.0 | 36 | 35 | 21.5 | 20.2 |
| GB6171 | M24 | 2.0 | 36 | 35 | 21.5 | 20.2 |
| GB6170 | M27 | 3.0 | 41 | 40 | 23.8 | 22.5 |
| GB6171 | M27 | 2.0 | 41 | 40 | 23.8 | 22.5 |
| GB6170 | M30 | 3.5 | 46 | 45 | 25.6 | 24.3 |
| GB6171 | M30 | 2.0 | 46 | 45 | 25.6 | 24.3 |
| GB6170 | M33 | 3.5 | 50 | 49 | 28.7 | 27.4 |
| GB6171 | M33 | 2.0 | 50 | 49 | 28.7 | 27.4 |
| GB6170 | M36 | 4.0 | 55 | 53.8 | 31 | 29.4 |
| GB6171 | M36 | 3.0 | 55 | 53.8 | 31 | 29.4 |
| GB6170 | M39 | 4.0 | 60 | 58.8 | 33.4 | 31.8 |
| GB6171 | M39 | 3.0 | 60 | 58.8 | 33.4 | 31.8 |
| GB6170 | M42 | 4.5 | 65 | 63.1 | 34 | 32.4 |
| GB6171 | M42 | 3.0 | 65 | 63.1 | 34 | 32.4 |
| GB6170 | M45 | 4.5 | 70 | 68.1 | 36 | 34.4 |
| GB6171 | M45 | 3.0 | 70 | 68.1 | 36 | 34.4 |
| GB6170 | M48 | 5.0 | 75 | 73.1 | 38 | 36.4 |
| GB6171 | M48 | 3.0 | 75 | 73.1 | 38 | 36.4 |
| GB6170 | M52 | 5.0 | 80 | 78.1 | 42 | 40.4 |
| GB6171 | M52 | 3.0 | 80 | 78.1 | 42 | 40.4 |
| GB6170 | M56 | 5.5 | 85 | 82.8 | 45 | 43.4 |
| GB6171 | M56 | 4.0 | 85 | 82.8 | 45 | 43.4 |
| GB6170 | M60 | 5.5 | 90 | 87.8 | 48 | 46.4 |
| GB6171 | M60 | 4.0 | 90 | 87.8 | 48 | 46.4 |
| GB6170 | M64 | 6.0 | 95 | 92.8 | 51 | 49.1 |
| GB6171 | M64 | 4.0 | 95 | 92.8 | 51 | 49.1 |
| DIN934 | M68 | 6.0 | 100 | 97.8 | 54 | 52.1 |
| M68 | 4.0 | 100 | 97.8 | 54 | 52.1 | |
| DIN934 | M72 | 6.0 | 105 | 102.8 | 58 | 56.1 |
| M72 | 4.0 | 105 | 102.8 | 58 | 56.1 | |
| DIN934 | M76 | 6.0 | 110 | 107.8 | 61 | 59.1 |
| M76 | 4.0 | 110 | 107.8 | 61 | 59.1 | |
| DIN934 | M80 | 6.0 | 115 | 112.8 | 64 | 62.1 |
| M80 | 4.0 | 115 | 112.8 | 64 | 62.1 | |
| DIN934 | M85 | 6.0 | 120 | 117.8 | 68 | 66.1 |
| M85 | 4.0 | 120 | 117.8 | 68 | 66.1 | |
| DIN934 | M90 | 6.0 | 130 | 127.5 | 72 | 70.1 |
| M90 | 4.0 | 130 | 127.5 | 72 | 70.1 | |
| DIN934 | M100 | 6.0 | 145 | 142.5 | 80 | 78.1 |
| M100 | 4.0 | 145 | 142.5 | 80 | 78.1 | |
| DIN934 | M110 | 6.0 | 155 | 152.5 | 88 | 85.8 |
| M110 | 4.0 | 155 | 152.5 | 88 | 85.8 | |
| DIN934 | M125 | 6.0 | 180 | 177.5 | 100 | 97.8 |
| M125 | 4.0 | 180 | 177.5 | 100 | 97.8 | |
| DIN934 | M140 | 6.0 | 200 | 195.4 | 112 | 109.8 |
| M140 | 4.0 | 200 | 195.4 | 112 | 109.8 | |
| DIN934 | M160 | 6.0 | 230 | 225.4 | 128 | 125.5 |
| M160 | 4.0 | 230 | 225.4 | 128 | 125.5 |
Advantages of our Custom Hex Nut:
- There are many kinds, and there are many stocks. KENENG can provide samples.
- We focus on all details, in strict accordance with industry-standard production and qualified products.
- High hardness and strength.
Why Select KENENG Custom Hex Nut
We produce a wide range of products at reasonable prices and ensure product quality.
KENENG can produce fasteners including: screws, studs, nuts, flat washers and rivets of various specifications. Various non-standard CNC parts, stamping parts, injection molding parts, nylon screws, nylon nuts, nylon studs, etc.
Order process of Stamping part: Receive CAD or 3D design → Quotation → Signing Pi → Receive dispose → Make product → Open molding → Trial production → Mass production → Receive Balance → Delivery
