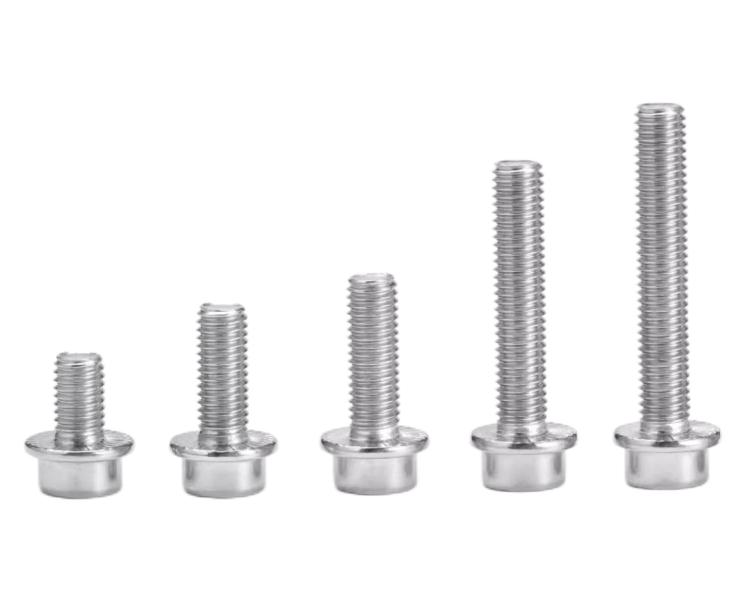

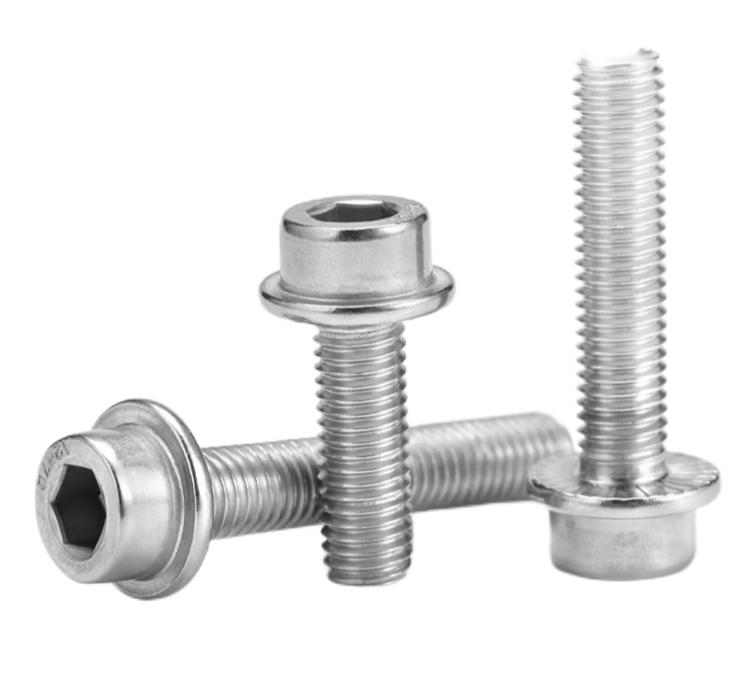

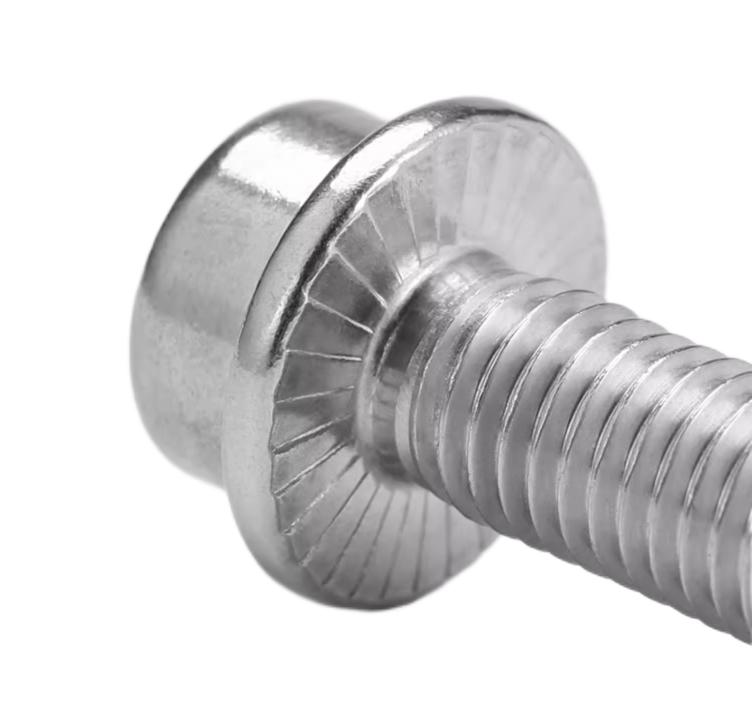

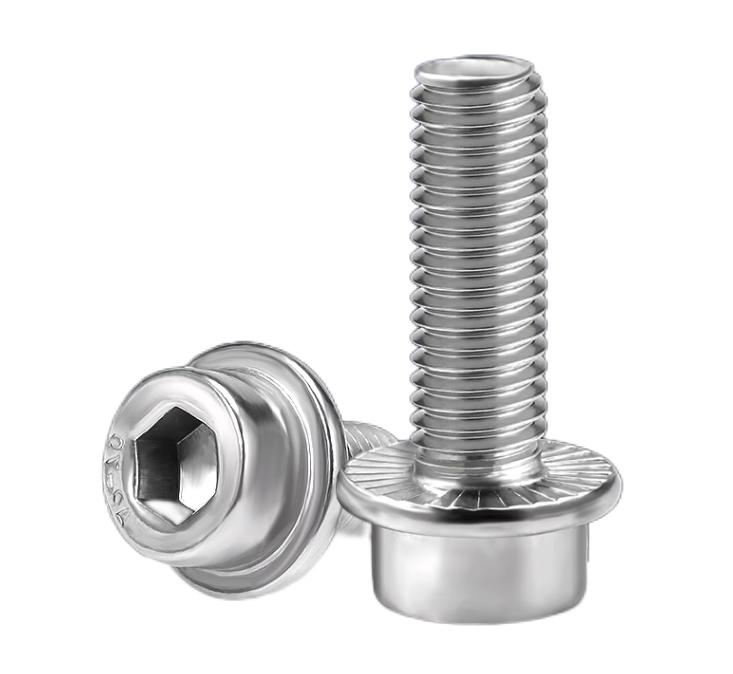

Hex Socket Cap Head Flange Screw
Specifications of Hex Socket Cap Head Flange Screw
| Specification(d) | Hexagonal Opposite Side(s) | Outer Diameter of the Cylindrical Head | Outer Diameter of Flange | Total Height of the Head |
| M5 | 4 | 8 | 10.6 | 5 |
| M6 | 5 | 9.8 | 12.2 | 6 |
| M8 | 6 | 12.6 | 16.5 | 8 |
| M10 | 8 | 15.6 | 20.5 | 9.5 |
| M12 | 10 | 17.8 | 23 | 11.6 |
Advantages of KENENG Hex Socket Cap Head Flange Screw
- High-quality material
- Complete specifications, a variety of options
- No fracture, crack, rust, etc
Applications of Hex Socket Cap Head Flange Screw
Hexagonal socket cap flange screws are widely used in industries such as home decoration, electronic products, automobiles, ships and so on, and are loved by consumers because of their glossy surface, delicate, beautiful appearance, good electrical conductivity and good corrosion resistance.
