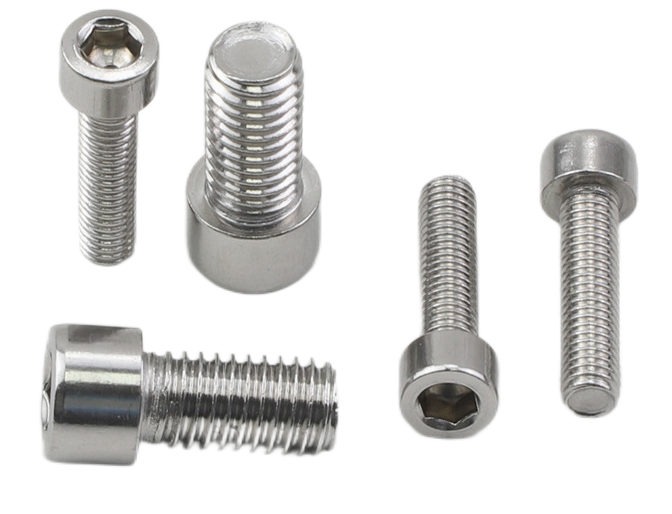

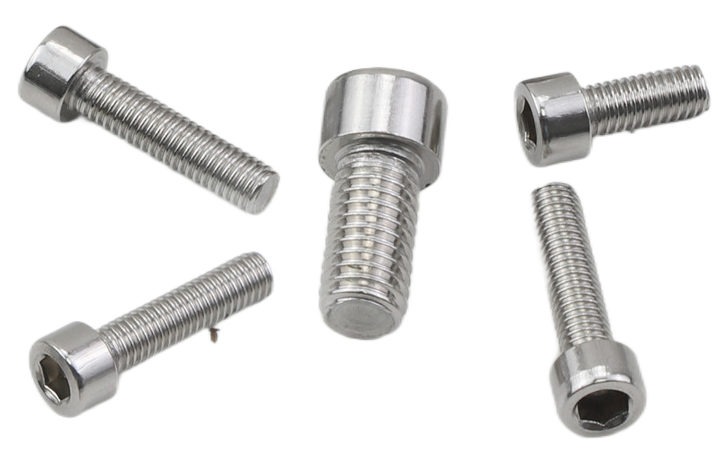

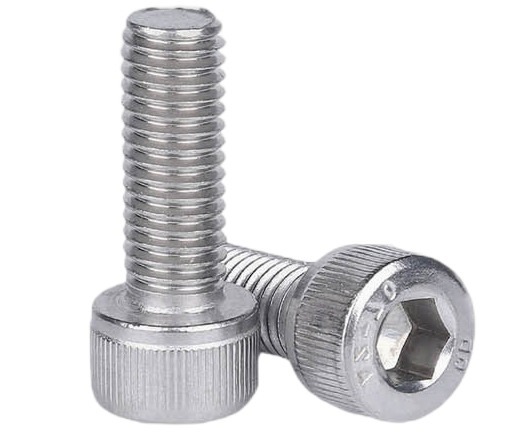

Custom Hex Socket Cap Screw

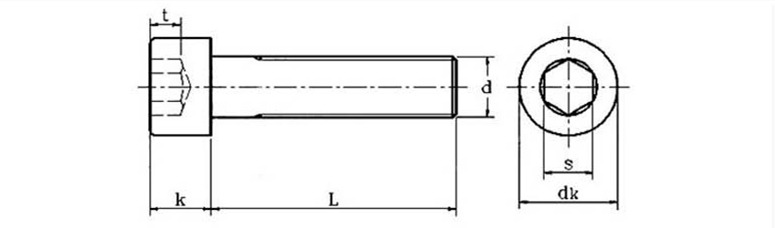

Specifications of Hex Socket Cap Screw

		dk	dk	k	k	s	s	t
Nominal diameter	Coarse pitch	max	min	max	min	max	min	min
M1.4	0.3mm	2.74mm	2.46mm	1.4mm	1.26mm	1.36mm	1.32mm	0.6mm
M1.6	0.35mm	3.14mm	2.86mm	1.6mm	1.46mm	1.56mm	1.52mm	0.7mm
M2	0.4mm	3.98mm	3.62mm	2mm	1.86mm	1.56mm	1.52mm	1mm
M2.5	0.45mm	4.68mm	4.32mm	2.5mm	2.36mm	2.06mm	2.02mm	1.1mm
M3	0.5mm	5.68mm	5.32mm	3mm	2.86mm	2.58mm	2.52mm	1.3mm
M4	0.7mm	7.22mm	6.78mm	4mm	3.82mm	3.08mm	3.02mm	2mm
M5	0.8mm	8.72mm	8.28mm	5mm	4.82mm	4.095mm	4.02mm	2.5mm
M6	1mm	10.22mm	9.78mm	6mm	5.7mm	5.14mm	5.02mm	3mm
M8	1.25mm	13.27mm	12.73mm	8mm	7.64mm	6.14mm	6.02mm	4mm
M10	1.5mm	16.27mm	15.73mm	10mm	9.64mm	8.175mm	8.025mm	5mm
M12	1.75mm	18.27mm	17.73mm	12mm	11.57mm	10.18mm	10.025mm	6mm
M14	2mm	21.33mm	20.67mm	14mm	12.57mm	12.21mm	12.032mm	7mm
M16	2mm	24.33mm	23.67mm	16mm	15.57mm	14.21mm	14.032mm	8mm
M18	2.5mm	27.33mm	26.67mm	18mm	17.57mm	14.21mm	14.032mm	9mm
M20	2.5mm	30.33mm	19.67mm	20mm	19.48mm	17.23mm	17.05mm	10mm
M22	2.5mm	33.39mm	32.61mm	22mm	21.48mm	17.23mm	17.05mm	11mm
M24	3mm	36.36mm	35.61mm	24mm	23.48mm	19.28mm	19.065mm	12mm
M27	3mm	40.39mm	39.61mm	27mm	26.48mm	19.28mm	19.065mm	13.5mm
M30	3.5mm	45.39mm	44.61mm	30mm	29.48mm	22.28mm	22.065mm	15.6mm

Advantages of KENENG Custom Hex Socket Cap Screw

We produce a wide range of products at reasonable prices and ensure product quality.

KENENG can produce fasteners including: screws, studs, nuts, flat washers and rivets of various specifications. Various non-standard CNC parts, stamping parts, injection molding parts, nylon screws, nylon nuts, nylon studs, etc.

Ordering process of Lathe parts (non standard parts): Receive CAD or 3D design → Quotation → Signing Pi → Receive deposit → Make sample, approval by customer → Mass production → Receive Balance → Delivery

Packing:

Small box/ plastic bag + carton + pallet, or according to customer requirements

Materials we can use on Custom Hex Socket Cap Screw

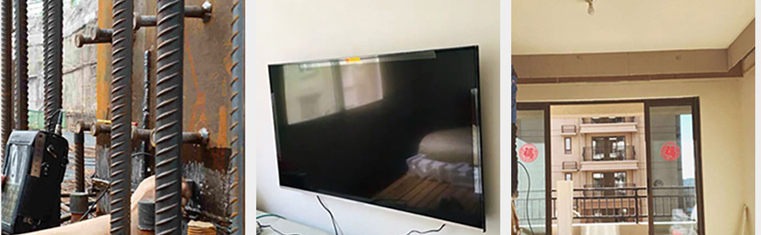

Applications of Hex Socket Cap Screw

For example:
