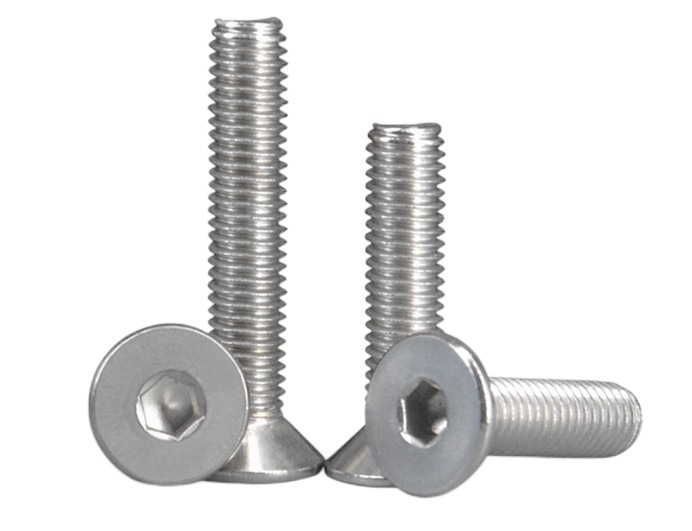

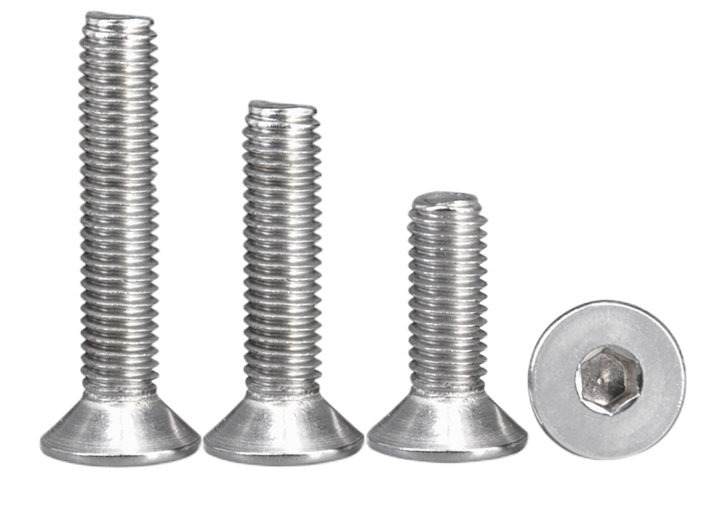

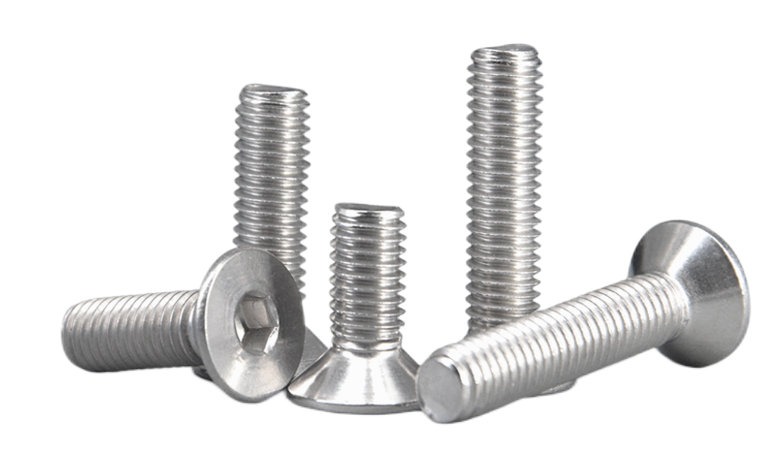

Custom Hex Socket Countersunk Screw
Specifications of Hex Socket Countersunk Screw
| dk | dk | s | s | s | |||
| nominal diameter | p | max | min | nominal | max | min | k |
| M2 | 0.4mm | 4mm | 3.65mm | 1.25mm | 1.37mm | 1.25mm | 1.5mm |
| M2.5 | 0.45mm | 5mm | 4.75mm | 1.5mm | 1.51mm | 1.37mm | 2mm |
| M3 | 0.5mm | 6mm | 5.75mm | 2mm | 2.1mm | 1.99mm | 2.4mm |
| M4 | 0.7mm | 8mm | 7.65mm | 2.5mm | 2.6mm | 2.45mm | 3mm |
| M5 | 0.8mm | 10mm | 9.77mm | 3mm | 3.1mm | 2.99mm | 3.8mm |
| M6 | 1mm | 12.2mm | 11.8mm | 4mm | 4.1mm | 4.02mm | 4.5mm |
| M8 | 1.25mm | 16mm | 15.5mm | 5mm | 5.1mm | 5.02mm | 6.1mm |
| M10 | 1.5mm | 20mm | 19.48mm | 6mm | 6.1mm | 6.02mm | 7.3mm |
| M12 | 1.75mm | 24mm | 23.48mm | 8mm | 8.1mm | 8.02mm | 9.6mm |
| M16 | 2mm | 30mm | 29.48mm | 10mm | 10.1mm | 10.02mm | 10.6mm |
| M20 | 2.5mm | 36mm | 35.38mm | 12mm | 12.1mm | 12.03mm | 11.4mm |
Why Choose KENENG Custom Hex Socket Countersunk Screw
KENENG has complete lathes, punches and thread rolling machines. Production and testing of parts can be carried out. We have excellent quality inspection capability: we can provide salt spray, film thickness and various inspection reports.
We have specialized designers and production personnel and complete production lines.
We produce a wide range of products at reasonable prices, and ensure product quality.
Packing:
Plastic bag + pallet + carton, or according to customer requirements.
