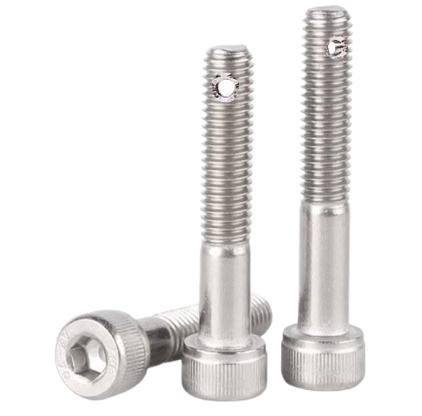

Hex Socket Cup Screw with hole in the tail

  • Size: M4~M20
  • Material: 304 stainless steel
  • Length: 30~150mm
  • Finishing: plain, passivated

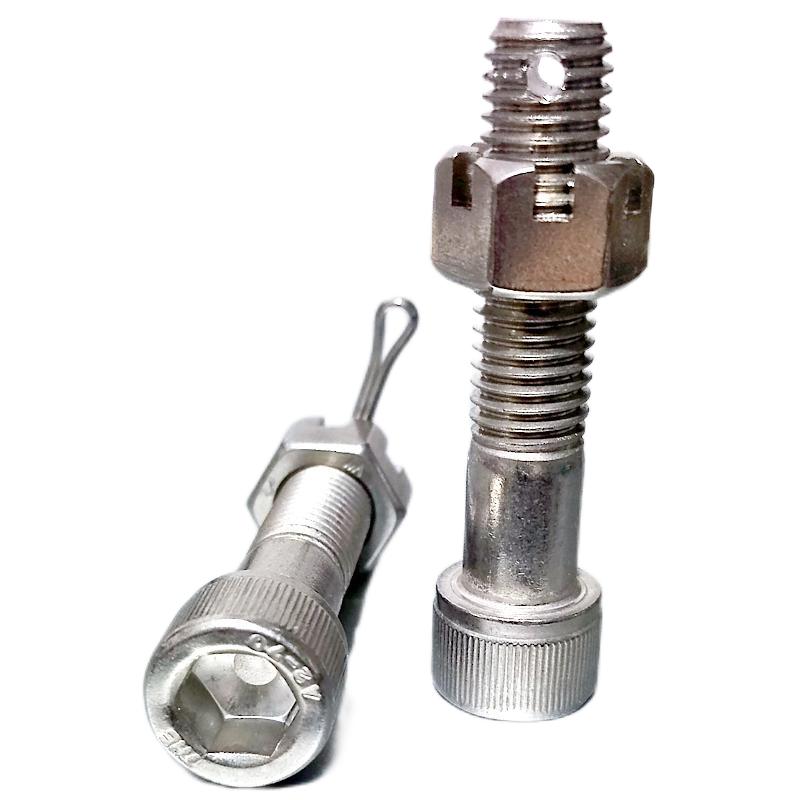

  • Application: use with cotter pin and slotted nut.

Are You an OEM Manufacturer?

Yes

Specifications of Hex Socket Cup Screw with hole in the tail

Thread Size
d 		M1.4 M1.6 M2 M2.5 M3 M4 M5 M6 M8 M10 M12 (M14) M16 (M18) M20
P Pitch Coarse thread 0.3 0.35 0.4 0.45 0.5 0.7 0.8 1 1.25 1.5 1.75 2 2 2.5 2.5
Fine thread pitch-1 – – – – – – – – 1 1.25 1.25 1.5 1.5 1.5 1.5
Fine thread pitch-2 – – – – – – – – – 1 1.5 – – 2 2
dk plain head max 2.6 3 3.8 4.5 5.5 7 8.5 10 13 16 18 21 24 27 30
knurled heads max 2.74 3.14 3.98 4.68 5.68 7.22 8.72 10.22 13.27 16.27 18.27 21.33 24.33 27.33 30.33
min 2.46 2.86 3.62 4.32 5.32 6.78 8.28 9.78 12.73 15.73 17.73 20.67 23.67 26.67 29.67
da max 1.8 2 2.6 3.1 3.6 4.7 5.7 6.8 9.2 11.2 13.7 15.7 17.7 20.2 22.4
ds max 1.4 1.6 2 2.5 3 4 5 6 8 10 12 14 16 18 20
min 1.26 1.46 1.86 2.36 2.86 3.82 4.82 5.82 7.78 9.78 11.73 13.73 15.73 17.73 19.67
e min 1.5 1.73 1.73 2.3 2.87 3.44 4.58 5.72 6.86 9.15 11.43 13.72 16 16 19.44
k max 1.4 1.6 2 2.5 3 4 5 6 8 10 12 14 16 18 20
min 1.26 1.46 1.86 2.36 2.86 3.82 4.82 5.7 7.64 9.64 11.57 13.57 15.57 17.57 19.48
S Nominal Size 1.3 1.5 1.5 2 2.5 3 4 5 6 8 10 12 14 14 17
min 1.32 1.52 1.52 2.02 2.52 3.02 4.02 5.02 6.02 8.025 10.025 12.032 14.032 14.032 17.05
max 1.36 1.56 1.56 2.06 2.58 3.08 4.095 5.14 6.14 8.175 10.175 12.212 14.212 14.212 17.23
t min 0.6 0.7 1 1.1 1.3 2 2.5 3 4 5 6 7 8 9 10
W min 0.5 0.55 0.55 0.85 1.15 1.4 1.9 2.3 3 4 4.8 5.8 6.8 7.8 8.6
Weight of per 1000 steel products(≈kg) – – – – – – – – – – – – – – –
Length of Thread b – – – – – – – – – – – – – –

Advantages of Hex Socket Cup Screw with hole in the tail

  1. Standard head type, uniform thread, not easy to slip.
  2. Smooth without burrs, smooth to use.

Materials we can use on Hex Socket Cup Screw with hole in the tail
