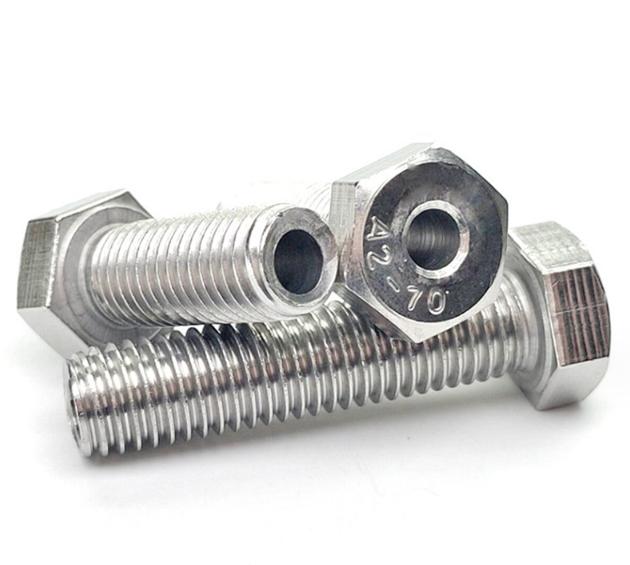

Hexagon Bolts With Wire Holes On Head

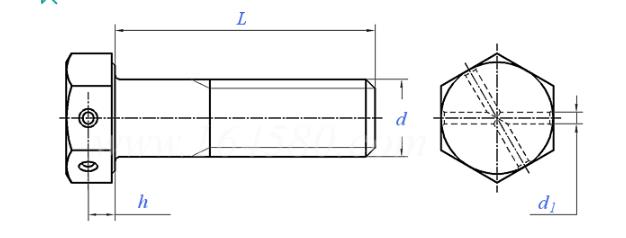

Specifications Of Hexagon Bolts With Wire Holes On Head
|
Thread d |
M6 | M8 | M10 | M12 | (M14) | M16 | (M18) | M20 | (M22) | M24 | (M27) | M30 | M36 | M42 | M48 | |
| P | Pitch | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3.5 | 4 | 4.5 | 5 |
| d1 | Nominal | 1.6 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 4 | 4 | 4 |
| Minimum | 1.6 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | |
| Maximum | 1.85 | 2.25 | 2.25 | 2.25 | 2.25 | 3.25 | 3.25 | 3.25 | 3.25 | 3.25 | 3.25 | 3.25 | 4.3 | 4.3 | 4.3 | |
| h | N | 2 | 2.6 | 3.2 | 3.7 | 4.4 | 5 | 5.7 | 6.2 | 7 | 7.5 | 8.5 | 9.3 | 11.2 | 13 | 15 |
Why Choose KENENG As a Trustworthy Supplier of Hexagon Bolts With Wire Holes On Head
- KENENG produce a wide range of bolts at reasonable prices, and ensure product quality.
- KENENG can produce fasteners including: screws, studs, nuts, flat washers and rivets of various specifications. Various non-standard CNC parts, stamping parts, injection molding parts, nylon screws, nylon nuts, nylon studs, etc.
