Hexagon Flange Nut with Flat Bottom

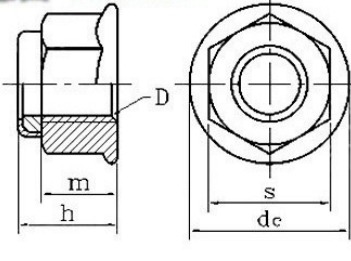

Specifications of Hexagon Flange Nut with Flat Bottom
| unit: mm | |||||||
|
Nominal Diameter D |
Pitch P |
dc max |
h | S |
Quality per 1000 steel products ≈kg |
||
| max | min | max | min | ||||
| M5 | 0.8 | 11.8 | 7.1 | 6.52 | 8 | 7.78 | 1.66 |
| M6 | 1 | 14.2 | 9.1 | 8.52 | 10 | 9.78 | 3.36 |
| M8 | 1.25 | 17.9 | 11.1 | 10.4 | 13 | 12.73 | 7 |
| M10 | 1.5 | 21.8 | 13.5 | 12.8 | 15 | 14.73 | 11.15 |
| M12 | 1.75 | 26 | 16.1 | 15.4 | 18 | 17.73 | 19.33 |
| M14 | 2 | 29.9 | 18.2 | 16.9 | 21 | 20.67 | 29.21 |
| M16 | 2 | 34.5 | 20.3 | 19 | 24 | 23.67 | 43.2 |
| M20 | 2.5 | 42.8 | 24.8 | 22.7 | 30 | 29.16 | 78.4 |
Key Functions of Hexagon Flange Nut with Flat Bottom
When using hexagonal flange nuts, they have better sealing properties, which can effectively prevent rain, moisture, dust and other harmful substances from penetrating into the nut body, prevent the nut body from rusting, and thus greatly extend the service life of the hexagonal flange nuts.
Materials we can use on Hexagon Flange Nut with Flat Bottom
Applications of Hexagon Flange Nut with Flat Bottom
Hexagon flange nuts with flat bottoms are widely used in lifting machines, pressure machines, and vibrations are generally used, and the car’s front and rear wheel shaft screws are also used.
