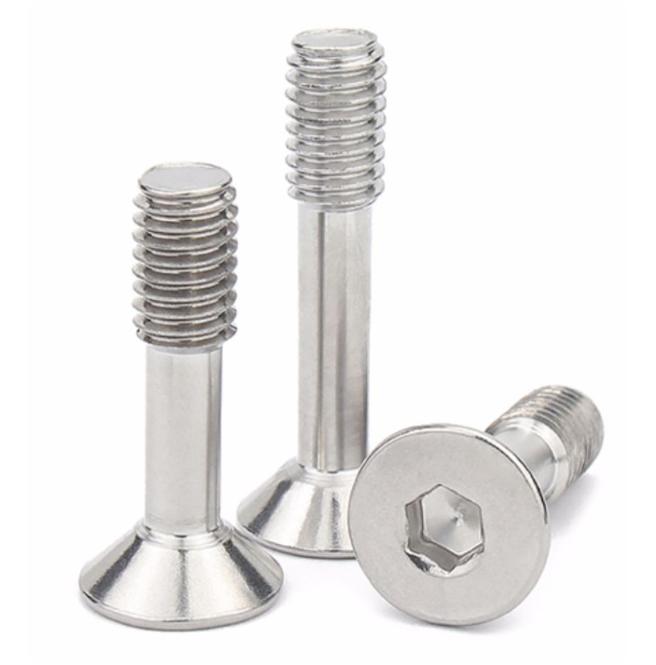

Hexagon Socket Countersunk Head Cap Screws

  • Material: Stainless steel 304
  • Finishing: Plain
  • Size: M3~M24
  • Processing type: Cold heading

Are You an OEM Manufacturer?

Yes

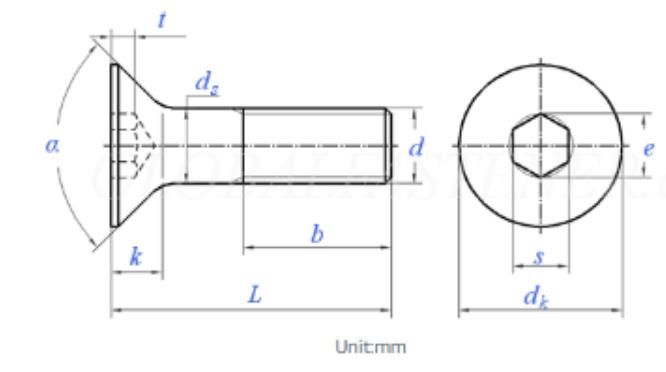

Specifications of Hexagon Socket Countersunk Head Cap Screws

Specifications of Hexagon Socket Countersunk Head Cap Screw
Screw Thread
d 		M3 M4 M5 M6 M8 M10 M12 (M14) M16 (M18) M20 (M22) M24
  P Pitch 0.5 0.7 0.8 1 1.25 1.5 1.75 2 2 2.5 2.5 2.5 3
  a tol(+2) 90° 90° 90° 90° 90° 90° 90° 90° 90° 90° 90° 60° 60°
  b L≤125 12 14 16 18 22 26 30 34 38 42 46 50 54
125<L≤200 / / / 24 28 32 36 40 44 48 52 56 60
L>200 / / / / / 45 49 53 57 61 65 69 73
  dk max=nominal sze 6 8 10 12 16 20 24 27 30 33 56 36 39
min 5.7 7.64 9.54 17.57 15.57 19.48 23.48 26.48 29.48 32.38 35.38 35.38 58.38
  ds max=nominal size 3 4 5 6 B 10 12 14 16 18 20 22 24
min 2.86 3.82 4.82 5.82 7.78 9.78 11.73 15.73 15.73 17.73 19.67 21.67 23.67
  e min 2.3 2.87 5.44 4.58 5.72 6.86 9.15 11.43 11.43 15.72 73.72 16 16
  k max 1.7 2.3 2.8 3.3 4.4 5.5 6.5 7 7.5 8 8.5 13.1 14
  s Nominal Size 2 2.5 3 4 5 6 8 10 10 12 12 14 14
min 2.02 2.52 3.02 4.02 5.02 6.02 8.025 10.025 10.025 12.032 12.032 14.032 14.032
max 2.1 2.6 3.1 4.12 5.14 6.14 8.175 10.175 10.175 12.212 12.212 14.212 14.212
  t max=noninal size 1.2 1.8 2.3 2.5 3.5 4.4 4.6 4.8 5.3 5.5 5.9 8.8 10.3
mn 0.95 1.55 2.05 2.25 3.2 4.1 43 4.5 5 5.2 5.6 8.44 9.87

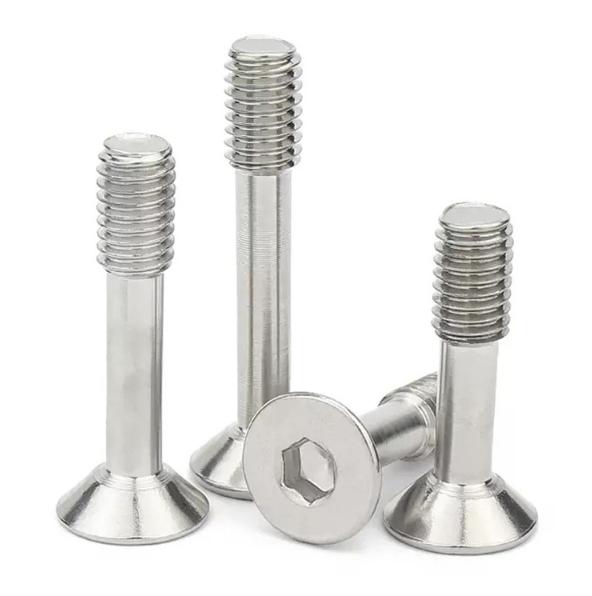

Advantages of KENENG Hexagon Socket Countersunk Head Cap Screws

  1. High-quality material.
  2. Complete specifications, a variety of options.
  3. No fracture, crack, rust, etc
  4. Corrosion resistance.

Applications of Hexagon Socket Countersunk Head Cap Screws

hexagon socket countersunk cap screws are widely used in musical instrument, audio, machinery, electrical appliances, electronics, etc.

Materials we can use on Hexagon Socket Countersunk Head Cap Screws
