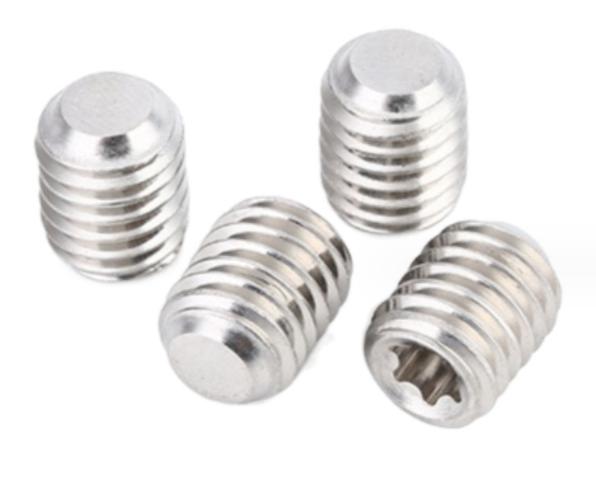

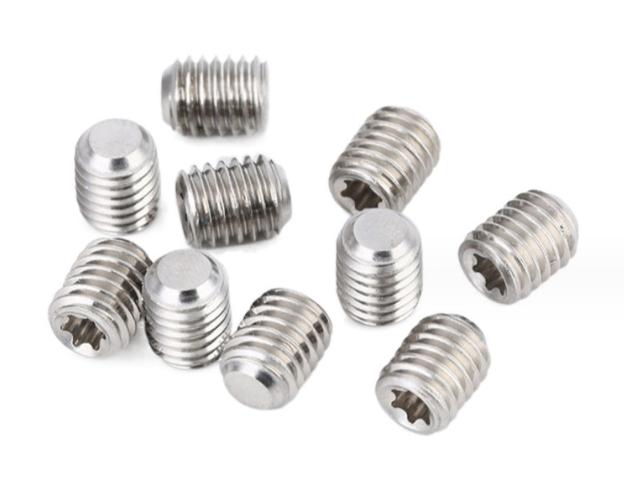

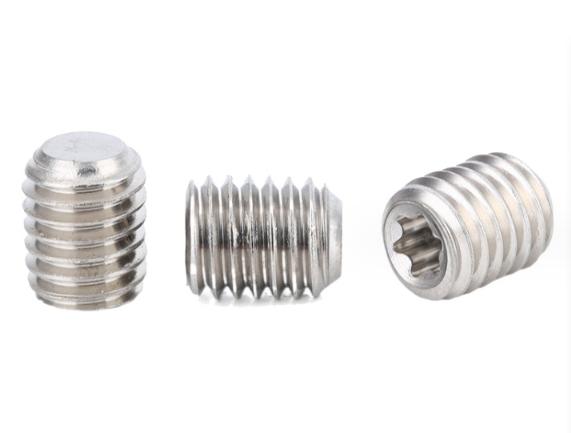

Hexalobular Socket Set Screws

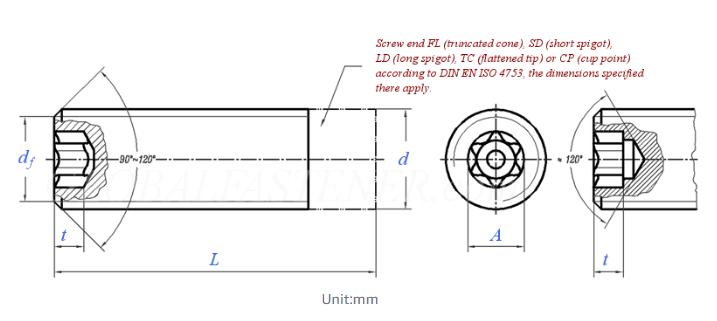

Specifications of Hexalobular Socket Set Screws
Screw Thread d |
M3 | M4 | M5 | M6 | M8 | M10 | M12 | M16 | M20 | M24 | |
P | 0.5 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 |
2.5 |
3 | |
Socket No. | 6 | 8 | 10 | 15 | 25 | 30 | 40 | 50 | 55 | 60 | |
A | Ref . | 1.75 | 2.4 | 2.8 | 3.35 | 4.5 | 5.6 | 6.75 | 8.95 |
11.35 |
13.45 |
t | min | 0.80 | 1 | 1.3 | 1.6 | 2.7 | 2.9 | 3.2 | 4.3 | 5.3 | 6.8 |
max | 0.95 | 1.2 | 1.55 | 1.9 | 3.1 | 3.3 | 3.6 | 4.75 | 5.75 | 7.25 |
Advantages of Hexalobular Socket Set Screws
- High quality material
- Complete specifications, a variety of options
- No fracture, crack, rust, etc
Applications of Hexalobular Socket Set Screws
Hexalobular Socket Set Screws are widely used in a variety of mechanical equipment and devices, such as automobiles, furniture, electronic equipment and other fields, commonly used to connect and fix components, and adjust the position.
