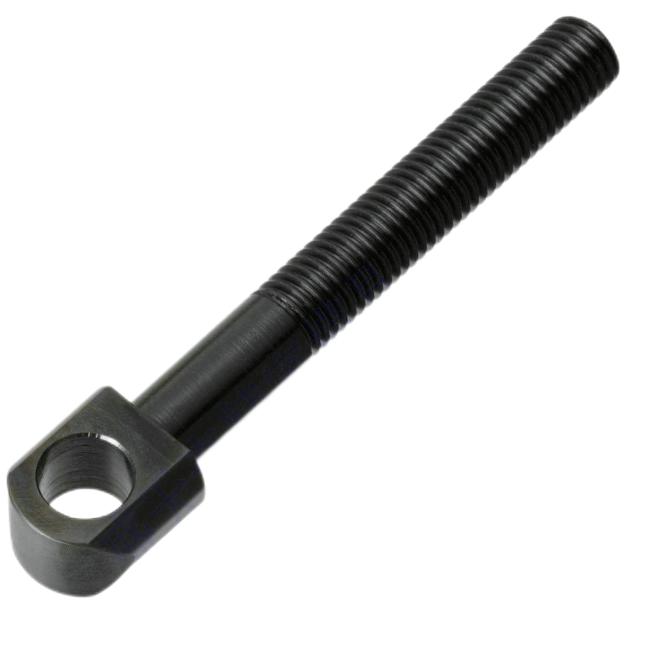

Hinge Bolt
Specifications of Hinge Bolt
| Types | D |
L Unit: 1mm |
W Unit:1mm |
M (coarse thread) |
I max |
L1 | L2 | E |
A min |
r | |
| Type | dH7 | ||||||||||
|
Standard type right thread HGBB HGBM HGBS Left thread HGBBL R type right thread HGBBR HGBMR HGBSR |
3 | 8 | 13~34 | 3~6 | 3 | l≤Mx5 | L+4 | – | 4 | 3 | 0.8 |
| 4 | 8 | 16~44 | 4~5 | 4 | 4 | ||||||
| 10 | 17~45 | 4~7 | L+5 | 5 | |||||||
| 5 | 10 | 19~55 | 5~6 | 5 | |||||||
| 12 | 20~56 | 5~9 | L+6 | 6 | |||||||
| 6 | 12 | 24~68 | 6~9 | 6 | L+8 | L+6 | 8 | ||||
| 15 | 6~12 | L+7.5 | |||||||||
| 8 | 15 | 28~88 | 8~11 | 8 | |||||||
| 20 | 30~90 | 8~17 | L+10 | 10 | |||||||
| 10 | 20 | 37~112 | 10~16 | 10 | L+10 | 12 | 5 | ||||
| 12 | 20 | 42~132 | 12~15 | 12 | 6 | ||||||
| 25 | 12~21 | L+12.5 | |||||||||
| 14 | 25 | 49~154 | 14~19 | 14 | L+12 | 14 | 7 | 1.6 | |||
| 30 | 14~25 | L+15 | |||||||||
| 16 | 30 | 53~174 | 16~24 | 16 | |||||||
| 34 | 16~28 | L+17 | |||||||||
| 20 | 30 | 65~216 | 20~21 | 20 | L+14 | L+15 | 16 | 9 | |||
| 34 | 20~25 | L+17 | |||||||||
| 36 | 20~28 | L+18 | |||||||||
| 40 | 20~30 | L+20 | |||||||||
| 25 | 36 | 73~240 | 22~23 | 22 | L+18 | L+18 | 20 | ||||
| 40 | 22~26 | L+20 | |||||||||
Outstanding Features of Hinge Bolt
- High-quality materials, environmentally friendly materials, hard, wear-resistant, not easily damaged, not prone to aging.
- Spiral thread, without burrs, clear and neat, with uniform force distribution.
- Standard outer hexagon, with clear edges and corners, ensuring tight and non slip fit.
- Professional technology, we have standardized management of automated production equipment, advanced testing equipment and instruments.
Why Choose KENENG as A Reliable Supplier of Hinge Bolt
1. KENENG has many years of experience in high-precision hardware CNC lathe machining.
2. We will use high-precision measuring tools and advanced testing equipment to inspect all parts and processes from incoming materials to final inspection. Keneng ensures that only qualified products are delivered to customers. Quality control is the top priority, and every step of the process is carefully controlled. Strict testing of products is carried out to ensure product quality
3. Competitive pricing: We have stable raw material suppliers who can quickly provide customers with competitive quotes.Mature technology and rich experience in surface strengthening treatment, strong pressure treatment, elimination of internal stress during use, making elasticity more stable.
4. Engineering support: No matter how many parts customers require, we have a professional team of engineers to provide technical support.
We accept customized services:
1. Provide us with parameters
1)Dimension Requirements: :diameter, length.
2) Surface treatment requirements (zinc plating, tin plating, nickel plating, etc.)
3)Other requirements.
2. You can also send us the sample or drawing and we will study it.
Applications of Hinge Bolt
Hinge bolts are widely used in the automotive industry, chemical industry, construction industry, shipbuilding industry, and machinery industry.
