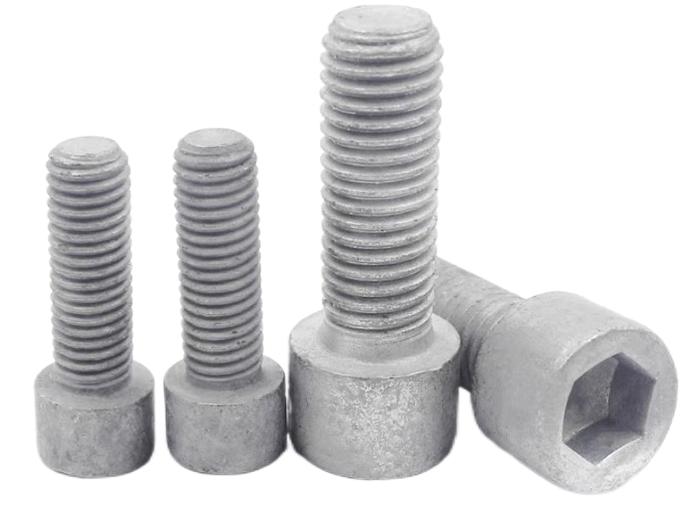

Hot Dip Galvanized(HDG) Socket Cup Head Bolt
Features and Applications of Hot Dip Galvanized(HDG) Socket Cup Head Bolt
The coating of hot-dip galvanized bolts is very thick, usually 30 to 60 microns, and the coating has a high corrosion resistance, suitable for long-term outdoor work in the rust prevention project, such as highway fences, power towers, construction, light industry, petrochemical, communications, new energy industry and large fasteners. In addition, older iron water pipes are also connected by hot-dip galvanized bolts.

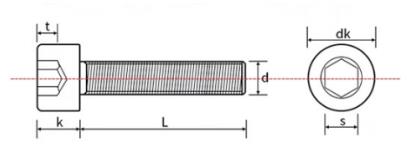

Specifications of Hot Dip Galvanized(HDG) Socket Cup Head Bolt
| Nominal diameter(d) | Coarse pitch thread (P) | dk | k | s | t | |||
| max | min | max | min | max | min | min | ||
| M1.4 | 0.3mm | 2.74mm | 2.46mm | 1.4mm | 1.26mm | 1.36mm | 1.32mm | 0.6mm |
| M1.6 | 0.35mm | 3.14mm | 2.86mm | 1.6mm | 1.46mm | 1.56mm | 1.52mm | 0.7mm |
| M2 | 0.4mm | 3.98mm | 3.62mm | 2mm | 1.86mm | 1.56mm | 1.52mm | 1mm |
| M2.5 | 0.45mm | 4.68mm | 4.32mm | 2.5mm | 2.36mm | 2.06mm | 2.02mm | 1.1mm |
| M3 | 0.5mm | 5.68mm | 5.32mm | 3mm | 2.86mm | 2.58mm | 2.52mm | 1.3mm |
| M4 | 0.7mm | 7.22mm | 6.78mm | 4mm | 3.82mm | 3.08mm | 3.02mm | 2mm |
| M5 | 0.8mm | 8.72mm | 8.28mm | 5mm | 4.82mm | 4.095mm | 4.02mm | 2.5mm |
| M6 | 1mm | 10.22mm | 9.78mm | 6mm | 5.7mm | 5.14mm | 5.02mm | 3mm |
| M8 | 1.25mm | 13.27mm | 12.73mm | 8mm | 7.64mm | 6.14mm | 6.02mm | 4mm |
| M10 | 1.5mm | 16.27mm | 15.73mm | 10mm | 9.64mm | 8.175mm | 8.052mm | 5mm |
| M12 | 1.75mm | 18.27mm | 17.73mm | 12mm | 11.57mm | 10.18mm | 10.052mm | 6mm |
| M14 | 2mm | 21.33mm | 20.67mm | 14mm | 12.57mm | 12.21mm | 12.032mm | 7mm |
| M16 | 2mm | 27.33mm | 23.67mm | 16mm | 15.57mm | 14.21mm | 14.032mm | 8mm |
| M18 | 2.5mm | 30.33mm | 26.67mm | 18mm | 17.57mm | 14.21mm | 14.032mm | 9mm |
| M20 | 2.5mm | 30.33mm | 19.67mm | 20mm | 19.48mm | 17.23mm | 17.05mm | 10mm |
| M22 | 2.5mm | 33.39mm | 32.61mm | 22mm | 21.48mm | 17.23mm | 17.05mm | 11mm |
| M24 | 3mm | 36.36mm | 35.61mm | 24mm | 23.48mm | 19.28mm | 19.065mm | 12mm |
| M27 | 3mm | 40.39mm | 39.61mm | 27mm | 26.48mm | 19.28mm | 19.065mm | 13.5mm |
| M30 | 3.5mm | 45.39mm | 44.61mm | 30mm | 29.48mm | 22.28mm | 22.065mm | 15.6mm |
Advantages of Hot Dip Galvanized(HDG) Socket Cup Head Bolt
1. The production cost of hot-dip galvanized bolts is relatively low.
2. High production efficiency and fast shipment of hot-dip galvanized bolts.
3. Hot-dip galvanized bolts have a wide range of applications.
4. Hot-dip galvanized bolts have super anti-corrosion performance.
