How to Choose Between Spring Washers and Flat Washers?

Washers are essential components in fastening systems, ensuring the stability, longevity, and reliability of mechanical joints. Among the various types of washers, spring washers and flat washers are the most commonly used, each offering unique benefits and functionalities. This article provides a comparative analysis of these two essential components, helping users choose the appropriate washer depends on your application’s specific requirements.

Understanding Spring Washers and Flat Washers

Spring Washers

Description

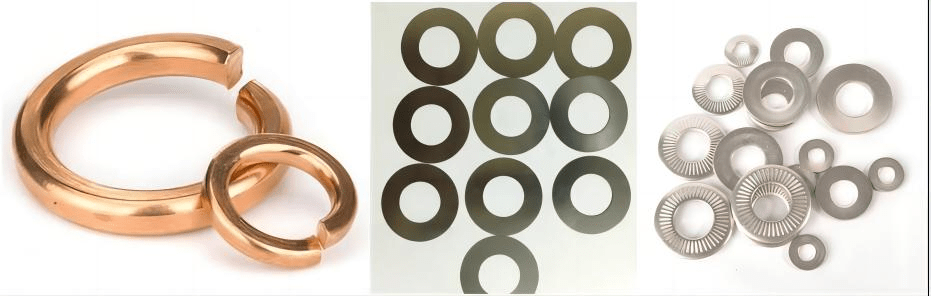

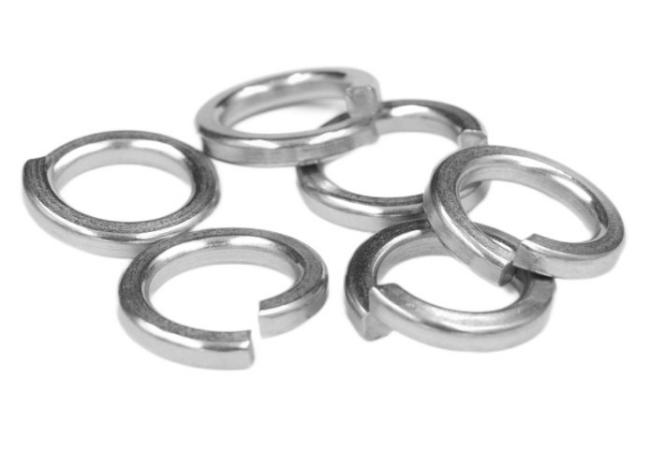

Spring washers, also known as lock washers, are designed to apply tension or maintain the tightness of a fastener assembly. They come in various shapes, such as split (helical), wave, or Belleville designs.

Primary Functions

Vibration Resistance: The spring-like structure prevents fasteners from loosening due to vibrations or dynamic forces.
Tension Maintenance: Ensures bolts and nuts remain tight under fluctuating loads.
Enhanced Grip: Provides additional friction between the fastener and surface.

Applications

Heavy Machinery: Commonly used in equipment prone to vibrations.
Automotive: Secure fasteners in engine components and suspension systems.
Aerospace: Applied in systems where reliability under dynamic conditions is crucial.

Advantages

Reduces the need for frequent maintenance in vibration-prone environments.
Enhances the overall durability of the fastening system.
Available in specialized designs for diverse industrial needs.

Limitations

Can scratch or deform soft or delicate surfaces due to concentrated pressure points.
Requires proper orientation for effective functioning; improper installation reduces performance.
Inefficient at evenly spreading the load compared to flat washers.
Susceptible to material fatigue over time, especially in high-vibration or high-stress environments.

Flat Washers

Description

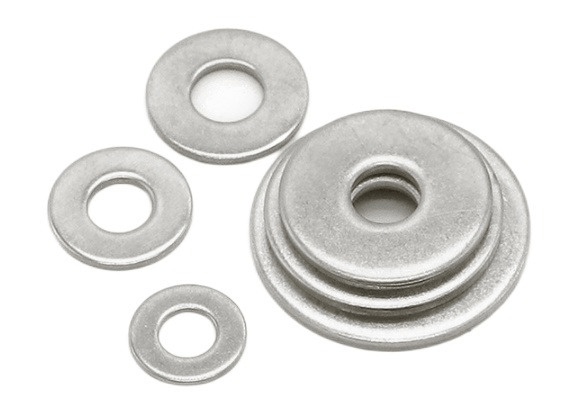

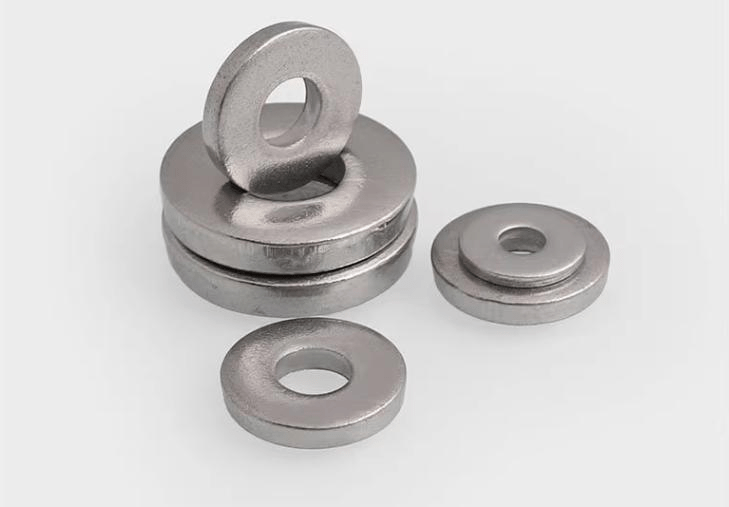

Flat washers are thin, flat discs with a central hole sized to fit a specific bolt or screw diameter. They are commonly made from materials like steel, stainless steel, plastic, or other alloys.

Primary Functions

Load Distribution: Flat washers evenly distribute the load of a fastener, preventing damage to the surface material.
Surface Protection: By acting as a buffer, they reduce wear and tear on the joint surface.
Alignment Aid: Flat washers help align bolts and nuts during assembly.

Applications

Construction: Used to prevent fastener heads from embedding into softer materials like wood.
Automotive: Ensure a secure and stable connection in vehicle assemblies.
General Maintenance: Applied in furniture, appliances, and lightweight structures.

Advantages

Simple design and easy installation.
Available in a wide range of sizes and materials.
Cost-effective solution for general-purpose use.

Limitations

Ineffective at preventing loosening caused by vibration or dynamic forces.
Offers no mechanism to maintain tension in joints, unlike spring washers.
May slip on smooth or hard surfaces without additional locking mechanisms.
May deform or fail under very high loads or in applications requiring high tensile strength.

Key Differences Between Spring Washers and Flat Washers

This chart highlights the functional and design differences between spring washers and flat washers, aiding in selecting the appropriate washer for specific needs.

Aspect	Flat Washers	Spring Washers
Primary Function	Distributes load and protects surfaces	Maintains tension and prevents loosening due to vibration
Design	Simple, flat circular disc	Spring-like design: split, wave, or conical shapes
Load Type	Best for static and evenly distributed loads	Suitable for dynamic loads and fluctuating forces
Vibration Resistance	Limited	High; resists loosening in vibration-prone environments
Surface Protection	Protects soft or delicate surfaces	May cause surface damage if tension is high
Material Options	Steel, stainless steel, brass, nylon, plastic	Alloy steel, stainless steel, phosphor bronze
Ease of Installation	Easy; no specific alignment required	Requires correct orientation for effectiveness
Applications	General fastening, surface protection	Heavy machinery, automotive, and aerospace
Cost	Lower; economical	Higher; designed for specialized purposes

Key Factors to Consider for Choosing Between Spring Washers and Flat Washers

Selecting the correct washer between spring washers and flat washers depends on the specific needs of your application.

1. Understand the Purpose

Spring Washers: Opt for spring washers when you need to:

Maintain tension in fasteners.
Prevent bolts or screws from loosening under vibration.
Secure fasteners in dynamic or high-load environments.

Flat Washers: Choose flat washers when you need to:

Distribute the load evenly to prevent damage to the surface.
Protect soft or delicate materials.
Improve alignment in assemblies.

2. Assess the Load Type

Dynamic Loads: Spring washers are better for fluctuating loads or systems subject to movement and vibrations.
Static Loads: Flat washers are ideal for applications with minimal movement or consistent pressure.

3. Consider the Operating Environment

Vibration-Prone Systems: Use spring washers to resist loosening caused by vibrations.
Surface Sensitivity: Use flat washers to protect surfaces from deformation or wear, especially for soft materials like wood or plastic.

4. Evaluate Material Compatibility

Spring washers are typically made of steel or alloys designed for strength and durability in dynamic applications.

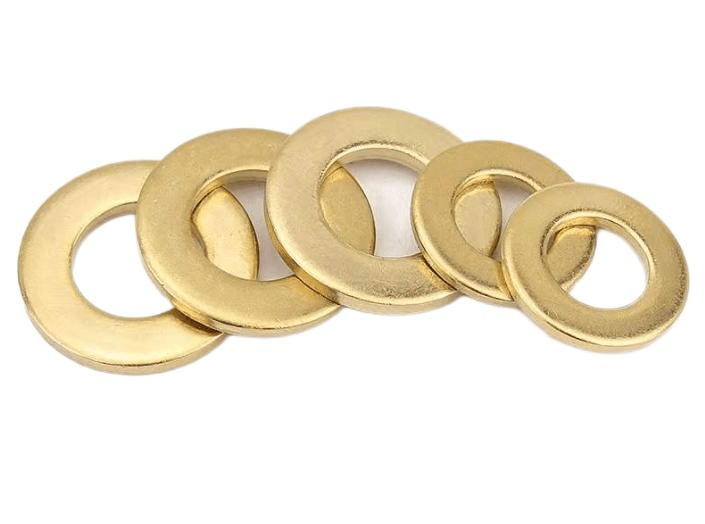

Flat washers are available in materials such as stainless steel, brass, and nylon, making them versatile for different environments.

5. Examine Cost vs. Performance

Spring washers are slightly more expensive but essential for critical applications where fastener security is vital.
Flat washers are more economical and suited for general-purpose use.

6. Match Washer Size to Fastener Dimensions

Ensure the washer’s inner diameter fits snugly around the bolt or screw.
Verify the outer diameter distributes the load appropriately or matches the application’s tension needs.

7. Factor in Installation Requirements

Spring washers may need proper positioning to function effectively, such as ensuring the split washer’s gap is oriented correctly.
Flat washers are simple to install and do not require specific alignment.

Summary

Flat washers and spring washers serve distinct yet complementary roles in fastening systems. While flat washers excel at distributing loads and protecting surfaces, spring washers are indispensable for maintaining tension and resisting vibration-induced loosening. Understanding their differences and strengths ensures the right choice for each application, contributing to the reliability and longevity of the fastening system.
