How to Enhance the Fatigue Resistance of Rivets Under Dynamic Loads?

Rivets are widely used in engineering applications, particularly in aerospace, automotive, and structural industries, where components are often subjected to dynamic loading conditions. Under such conditions, the fatigue resistance of rivets becomes a critical parameter to ensure the structural integrity and longevity of the assembly. This article explores the influencing factors, evaluation methods, and enhancement strategies for improving the fatigue resistance of rivets under dynamic load scenarios.

Understanding Fatigue in Riveted Joints

Fatigue refers to the progressive and localized structural damage that occurs when a material is subjected to cyclic loading. For riveted joints, fatigue typically manifests as cracks initiating at high-stress regions, such as the rivet hole edges, and propagating over time. Dynamic loads, such as vibrations, fluctuating forces, and repeated impacts, can accelerate this process.

Key Factors Influencing Fatigue Resistance of Rivets under Dynamic Loads

Material Properties: The choice of rivet material plays a pivotal role. High-strength alloys, such as titanium or aluminum alloys, offer better fatigue resistance compared to conventional steel. Material ductility also helps in dissipating stress concentrations.
Design and Geometry: Proper rivet sizing (diameter and length) ensures uniform load distribution and poorly aligned or rough rivet holes can act as stress concentrators, reducing fatigue life.
Surface Finish: Polished and smooth surfaces reduce the likelihood of crack initiation by minimizing stress concentrations.
Residual Stresses: Manufacturing processes, such as cold working, introduce beneficial residual compressive stresses around the rivet hole, improving fatigue life.
Load Conditions: The magnitude, frequency, and type of dynamic load significantly influence fatigue performance. Higher amplitude loads and complex multiaxial stresses tend to reduce fatigue life.

Evaluation Techniques for Assessing Fatigue Resistance of Rivets Under Dynamic Loads

Evaluating the fatigue resistance of rivets helps predict their lifespan, understand failure mechanisms, and improve joint design.

1. Experimental Techniques

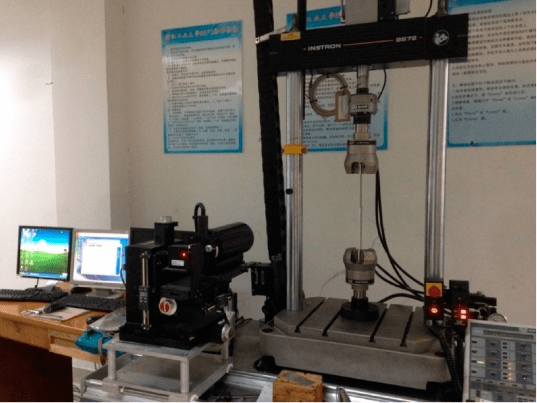

a. Fatigue Testing

Fatigue testing involves subjecting riveted joints to cyclic loads to simulate real-world dynamic conditions. Key approaches include:

Axial Fatigue Testing

Applies repeated axial tensile or compressive loads to measure fatigue life.
Focuses on stress concentrations around the rivet and rivet hole.

Shear Fatigue Testing

Simulates shear forces experienced in structural applications like bridges or aircraft skins.
Tests rivets under single or multiple lap joint configurations.

Load-Controlled vs. Strain-Controlled Tests

Load-controlled tests maintain constant amplitude, focusing on stress cycles.
Strain-controlled tests evaluate deformation effects in ductile materials.

b. Crack Growth Monitoring

Tracks the initiation and propagation of cracks in riveted joints under cyclic loading.

Techniques like compliance methods and direct imaging identify crack growth rates.

2. Computational Techniques

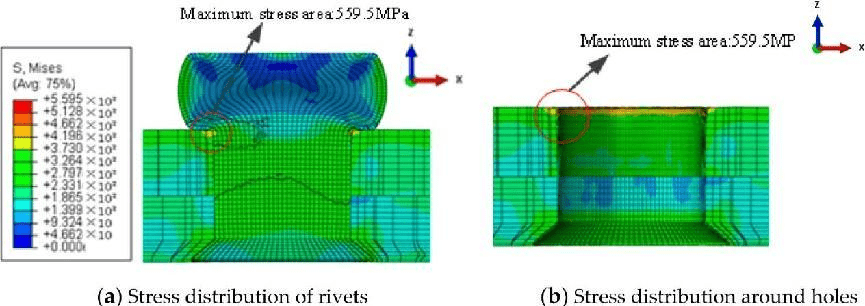

a. Finite Element Analysis (FEA)

FEA is a powerful simulation tool used to predict fatigue performance and understand stress distributions in riveted joints. Key aspects include:

Stress Analysis: Identifies high-stress regions, such as rivet hole edges, prone to fatigue failure.
Crack Propagation Modeling: Simulates crack growth using fracture mechanics principles.
Dynamic Loading Simulation: Incorporates real-world loading conditions, such as vibrations or impact forces, to assess fatigue behavior.

b. Fatigue Life Prediction Models

S-N Curve Analysis: Establishes a relationship between stress amplitude and the number of cycles to failure.
Paris’ Law: Models crack growth rate as a function of stress intensity factors.

3. Non-Destructive Evaluation (NDE)

NDE methods are used to inspect riveted joints without causing damage. They help detect early signs of fatigue, allowing preventive maintenance.

Ultrasonic Testing: Uses high-frequency sound waves to detect internal cracks or flaws around rivets.
Radiography (X-Ray): Provides detailed images of internal structures to identify cracks or voids in the material.
Eddy Current Testing: Detects surface and subsurface cracks using electromagnetic induction.
Acoustic Emission Testing: Monitors sound waves emitted during crack formation and propagation.

4. Advanced Techniques

Digital Image Correlation (DIC): Captures strain distribution in real-time during cyclic loading and helps visualize stress concentrations and crack initiation zones.
Thermographic Inspection: Monitors heat patterns caused by cyclic stresses to identify potential fatigue hotspots.
Laser Scanning Vibrometry: Analyzes vibrational modes of riveted joints to detect structural anomalies related to fatigue.

5. Hybrid Approaches

Combining experimental, computational, and NDE techniques provides a comprehensive evaluation of fatigue resistance. For instance:

FEA simulations guide experimental test setups.
NDE methods validate FEA-predicted failure zones.
Fatigue testing provides real-world data to refine computational models.

Strategies to Enhance Fatigue Resistance of Rivets Under Dynamic Loads

1. Optimizing Material Properties

The choice of material plays a vital role in fatigue resistance. Employing advanced materials and surface treatments can significantly improve performance:

High-Strength Alloys: Materials such as titanium, high-strength aluminum alloys, and tempered steels exhibit superior fatigue resistance due to their enhanced mechanical properties.
Surface Treatments: Techniques like anodizing, shot peening, and electroplating introduce residual compressive stresses and reduce surface roughness, which delays crack initiation.
Corrosion-Resistant Coatings: Protective coatings mitigate the effects of environmental degradation, further improving fatigue life.

2. Improving Rivet Design

Effective rivet design minimizes stress concentrations and distributes loads more evenly. Key design considerations include:

Optimized Geometries: Rounded or tapered head shapes and precise shank dimensions reduce peak stresses in critical areas.
Enhanced Hole Quality: Smooth and properly aligned rivet holes minimize the likelihood of stress concentrations that can lead to crack initiation.
Cold Expansion: Introducing beneficial residual stresses around rivet holes through cold expansion techniques can enhance fatigue resistance.

3. Advanced Manufacturing Techniques

Improved manufacturing processes can produce rivets with higher fatigue resistance:

Controlled Riveting: Automated riveting systems ensure uniform force application, reducing inconsistencies that might compromise fatigue performance.
Precision Drilling: Using high-accuracy drilling methods ensures proper hole alignment and fit, reducing the risk of stress concentrations.
Defect Elimination: Rigorous quality control during manufacturing eliminates defects such as burrs, voids, or misalignments that could compromise structural integrity.

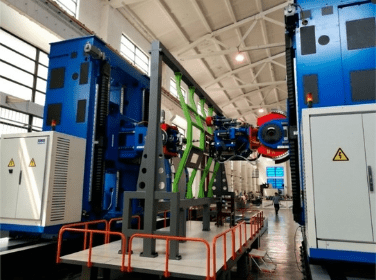

automatic riveting machine pressure riveting test

4. Load Mitigation Strategies

Reducing the intensity and variability of dynamic loads on rivets can significantly improve fatigue life:

Load Distribution: Incorporating multiple rivets in strategic patterns, such as staggered or diamond arrangements, ensures better load sharing.
Damping Systems: Adding damping materials or vibration isolators can reduce the amplitude of dynamic loads experienced by the rivets.
Stress Relieving: Applying thermal or mechanical stress-relief techniques post-installation reduces residual stresses that might exacerbate fatigue.

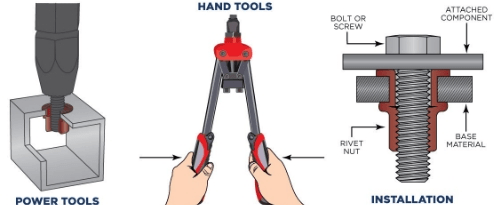

5. Improved Installation Processes

Controlled Riveting Techniques: Use automated riveting tools for consistent force application and uniform fastening and avoid over-tightening, which can introduce excessive pre-stresses that reduce fatigue life.
Cold Riveting: Apply cold-working techniques during installation of rivets to induce beneficial residual stresses.
Avoiding Defects: Inspect rivets and holes for defects such as burrs, voids, or misalignment during installation.

6. Innovations in Rivet Technology

Emerging technologies are redefining the capabilities of riveted joints:

Smart Rivets: Embedded with sensors, smart rivets can monitor stresses and environmental conditions in real-time, enabling predictive maintenance.
Hybrid Materials: Combining traditional metals with composites or advanced materials offers improved fatigue resistance while reducing weight.

Applications of Enhanced Fatigue Resistance of Rivets Under Dynamic Loads

This chart highlights the diverse applications where enhanced fatigue resistance of rivets under dynamic loads is critical, showcasing the importance of reliable riveted connections across industries.

Application Area	Description	Benefits of Enhanced Fatigue Resistance
Aerospace Engineering	Rivets used in aircraft fuselages, wings, and other structural components exposed to cyclic stresses.	Increased safety, reliability, and lifespan of critical aerospace structures.

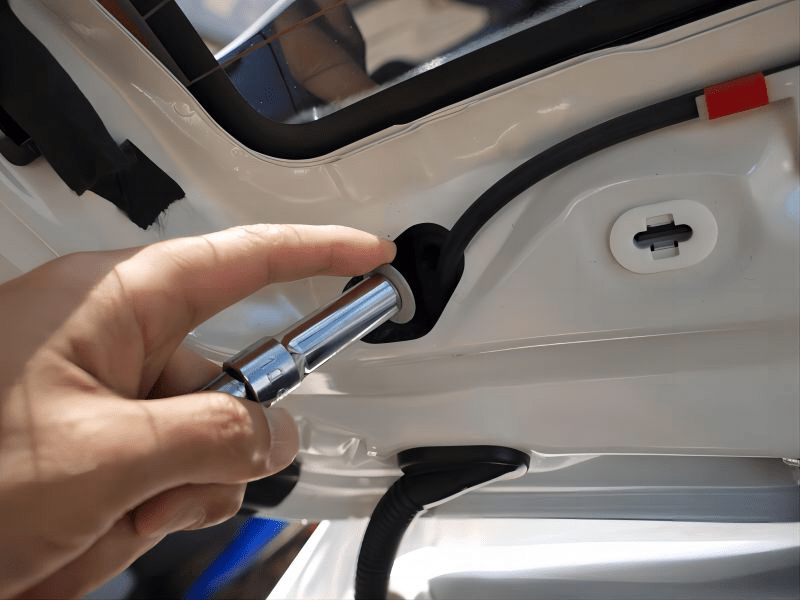

Automotive Industry	Riveting in vehicle chassis, suspensions, and body panels subjected to vibrations and road impacts.	Improved durability and performance of vehicles in dynamic conditions.
Marine Engineering	Rivets in ship hulls, decks, and superstructures exposed to wave-induced stresses and vibrations.	Greater resistance to fatigue failure in harsh marine environments.
Bridge Construction	Rivets in bridge joints and trusses enduring repetitive traffic and environmental loads.	Extended structural integrity and reduced maintenance requirements.
Railway Systems	Riveted connections in rail cars, tracks, and bridges subjected to high-frequency dynamic loads.	Enhanced safety and longer service life of rail infrastructure.
Wind Turbines	Rivets in turbine blades and towers exposed to cyclic wind loads and vibrations.	Better resistance to fatigue-induced failures in renewable energy applications.
Heavy Machinery	Rivets in equipment like cranes, excavators, and loaders exposed to dynamic mechanical forces.	Increased reliability and reduced downtime in industrial operations.
Defense Applications	Military vehicles, ships, and aircraft with rivets exposed to extreme dynamic and impact loads.	Enhanced performance and survivability in demanding operational environments.
Construction Equipment	Riveted joints in loaders, bulldozers, and forklifts experiencing repetitive motion and impacts.	Improved durability and operational efficiency in heavy-duty environments.
Renewable Energy Structures	Rivets in solar panel supports and offshore wind farm structures exposed to varying environmental forces.	Prolonged operational life and stability of renewable energy installations.

Summary

Evaluating and enhancing the fatigue resistance of rivets under dynamic load scenarios is vital for ensuring the longevity and safety of engineering structures. Through adopting advanced materials, innovative designs, and precise testing methods, engineers can address fatigue challenges effectively, which not only mitigates failure risks but also optimizes the performance of riveted assemblies across various industries.
