How to Enhance the Reliability of Battery Springs in Vibration Conditions?
Ensuring the reliability of battery springs in high-vibration environments, such as in automotive, aerospace, and industrial applications, is crucial for device performance and safety. This article explores the challenges, strategies, and best practices to enhance the reliability of battery springs under high-vibration conditions.

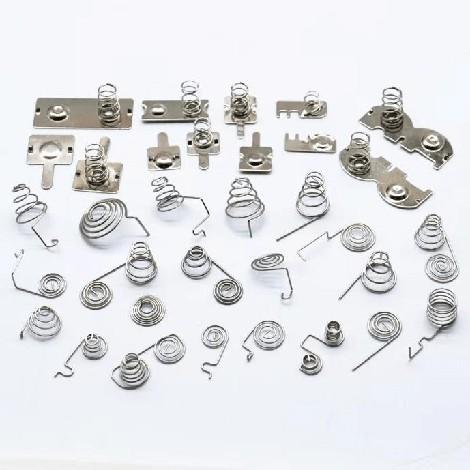

Understanding Battery Springs
Battery springs are crucial components in various electronic devices, ensuring consistent electrical contact between the battery and the device. These unassuming metal coils nestle within devices, pressing the battery terminals against the device’s contacts. This ensures a secure connection, allowing for smooth current flow and keeping your gadgets powered up.
Here’s a chart summarizing the key aspects of understanding battery springs
| Aspects | Details |
| Types of Battery Springs | Compression Springs: Compress when the battery is inserted, maintaining constant pressure and secure connection. Torsion Springs: Operate by twisting to create rotational force, holding the battery in place. Leaf Springs: Flat, flexible strips of metal used in devices with limited space to maintain contact. |
| Functions | Ensuring Electrical Contact: Maintains a reliable connection between the battery and device circuitry. Absorbing Vibration and Shock: Prevents battery dislodgment and power loss. Accommodating Tolerances: Ensures a secure fit for batteries with slight size variations. |
| Materials Used | Beryllium Copper (BeCu): Excellent conductivity, strength, fatigue resistance, and corrosion resistance. Phosphor Bronze: Good conductivity, strength, and wear resistance. Stainless Steel: Strong and corrosion-resistant, suitable for high durability needs. |
Challenges of Battery Springs Used in High-Vibration Environments
| Challenge | Description | Impact |
| Vibration-Induced Loosening | Constant vibration weakens the spring’s grip on the battery terminals. | 1. Intermittent power loss due to loose connection. 2. Increased electrical resistance at the contact point, reducing power output and potentially causing overheating. 3. In extreme cases, arcing can damage the battery terminals or the device itself. |
| Spring Fatigue | Repeated compression and relaxation due to vibration weakens the spring material. | 1. Reduced ability to maintain a secure connection as the spring weakens. 2. Lowered spring rate, leading to a weaker force against the battery and worsening connection issues. |
| Corrosion (in humid environments) | Moisture and humidity can cause the spring to corrode. | 1. Loss of material strength as the spring corrodes. 2. Increased surface roughness, leading to higher friction and potential power loss. |
| Balancing Needs | Designing a spring for high-vibration environments requires considering competing factors. | 1. Difficulty finding the optimal spring stiffness: a stiffer spring offers better vibration resistance but can damage terminals; a softer spring is gentler but less resistant to vibration. 2. Balancing fatigue resistance with conductivity: some materials resist fatigue better but may have lower conductivity, leading to higher resistance. |
Steps to Enhance the Reliability of Battery Springs in High-Vibration Environments
1. Material Selection
Choosing the right material for battery springs is the first step towards ensuring their reliability. Key considerations include:
- Fatigue Resistance: Select materials known for high fatigue resistance, such as stainless steel, beryllium copper, or phosphor bronze. These materials can withstand repeated stress cycles without significant degradation.
- Corrosion Resistance: In high-vibration environments, exposure to various elements can cause corrosion, which weakens the springs. Materials with inherent corrosion resistance or those that can be coated for added protection are preferable to battery springs.
- Conductivity: Ensure the material provides excellent electrical conductivity to maintain a stable connection.
2. Design Optimization
Proper design of battery springs is essential to their performance in high-vibration environments:
- Spring Shape: Use conical or hourglass shapes that distribute stress more evenly and reduce the likelihood of deformation under load.
- Wire Diameter: Opt for a thicker wire diameter to enhance durability and resistance to deformation.
- Coils and Turns: Increase the number of coils and turns to distribute the load more evenly and improve the spring’s ability to absorb shocks and vibrations.
3. Surface Treatment
Surface treatments can significantly enhance the performance and longevity of battery springs:
- Coatings: Apply coatings such as nickel, gold, or tin to improve conductivity, reduce friction, and prevent corrosion.
- Shot Peening: This process introduces compressive stress on the surface of the spring, improving fatigue strength and resistance to cracking.
4. Mounting and Housing Design
The way battery springs are mounted and housed can also impact their reliability:
- Secure Housing: Design the battery compartment to securely hold the springs in place, minimizing movement and reducing the impact of vibrations.
- Damping Materials: Incorporate damping materials around the springs to absorb vibrations and reduce the stress transferred to the springs.
5. Regular Maintenance and Inspection
Regular maintenance and inspection are vital to detect and address potential issues before they lead to failure:
- Routine Checks: Inspect battery springs regularly for signs of wear, corrosion, or deformation. Replace any compromised springs immediately.
- Cleaning: Ensure the battery contacts and springs are clean and free from debris that could interfere with electrical connectivity.
6. Testing and Validation
Thorough testing and validation ensure that battery springs can withstand the expected vibration levels:
- Vibration Testing: Conduct vibration testing under controlled conditions to simulate the operational environment. This helps in identifying potential weaknesses and areas for improvement.
- Fatigue Testing: Perform fatigue testing to understand how the springs behave under repeated stress cycles and to predict their lifespan.
7. Quality Control
Implement stringent quality control measures during manufacturing to maintain high standards:
- Material Inspection: Inspect materials for consistency and quality before they are used in production.
- Dimensional Accuracy: Ensure springs are manufactured to precise dimensions to maintain uniform performance.
- Final Inspection: Conduct final inspections to check for any defects or inconsistencies before the springs are shipped.
In summary, enhancing the reliability of battery springs in high-vibration environments requires a comprehensive approach encompassing material selection, design optimization, surface treatment, etc. Following these best practices, manufacturers can enhance the durability and performance of battery springs, ensuring that devices operate reliably even in high-vibration environments.
