How to Optimize Cycle Time in Injection Molding?
Injection molding is a widely used manufacturing process for producing plastic parts with high precision and repeatability. However, to maximize productivity and reduce costs, optimizing cycle time in injection molding is crucial. Cycle time, the total duration required to complete one molding cycle, directly impacts production efficiency and overall profitability. By refining each phase of the process, from injection to cooling and ejection, manufacturers can achieve faster turnaround times without compromising product quality.
Table of Contents

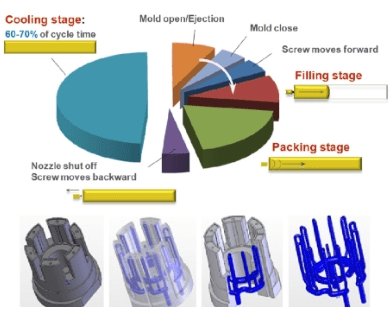

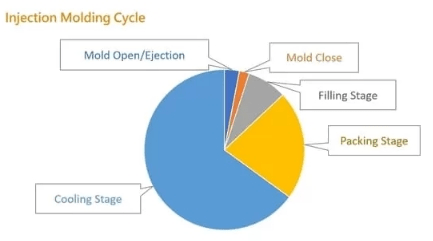

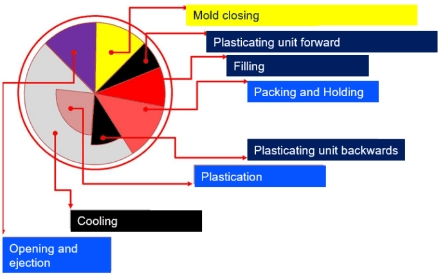

Key Stages of Cycle Time in Injection Molding

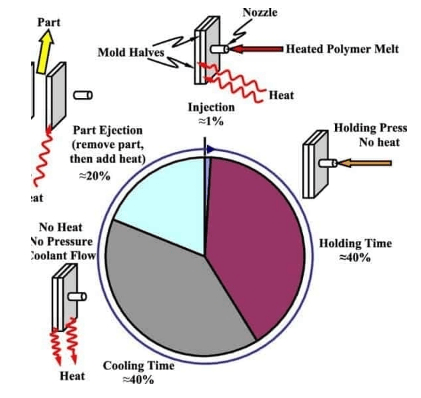

This chart provides a process flow diagram to highlight the time distribution across stages and identify areas for optimization of cycle time in injection molding.
| Stage | Description | Impact on Cycle Time |
| 1. Clamping | The mold is closed and secured under pressure. | Short but critical; improper clamping can lead to defects or machine damage. |
| 2. Injection | Molten plastic is injected into the mold cavity. | Speed and pressure must be optimized to ensure complete filling without defects. |
| 3. Packing & Holding | Additional pressure is applied to fill the mold and compensate for shrinkage. | Over-packing can increase cycle time, while under-packing can cause sink marks or voids. |
| 4. Cooling | The molten plastic solidifies into the desired shape. | Longest stage; efficient cooling design is key to reducing cycle time. |
| 5. Mold Opening | The mold is opened to prepare for part ejection. | Short but must be synchronized with ejection to avoid delays. |
| 6. Ejection | The finished part is removed from the mold. | Automated ejection systems can significantly reduce time and improve consistency. |
Key Strategies for Optimizing Cycle Time in Injection Molding
1. Improving Cooling Efficiency
Since the cooling phase accounts for the longest portion of the injection moulding cycle, optimizing this stage can drastically reduce overall cycle time. Implementing efficient cooling systems, such as pressurized water or oil-based cooling, accelerates heat dissipation. Utilizing thermal imaging analysis helps identify hotspots and allows for better placement of cooling channels.
Temperature control units (TCUs) ensure consistent cooling performance, preventing delays caused by temperature fluctuations. By enhancing cooling strategies, manufacturers can achieve shorter and more consistent cycle times without compromising product quality.
2. Optimizing Injection Speed and Pressure
Fine-tuning injection speed and pressure is essential for balancing fast mold filling with minimal defects. A high-speed injection approach helps fill the mold quickly, but excessive pressure can introduce air traps and warping. Advanced molding machines equipped with precision controls allow operators to adjust injection parameters dynamically.
Using high-flow resins that require lower injection pressure ensures smoother material distribution while reducing the time needed for packing and solidification. By optimizing these factors, manufacturers can significantly cut down injection and dwell times, leading to greater efficiency.
3. Automating Ejection and Part Removal
The ejection phase can introduce unnecessary delays if parts stick to the mold or require manual intervention. Implementing robotic automation for part removal reduces variability and ensures a quick, repeatable ejection process. Air-assisted ejection systems help minimize friction, allowing for a smoother release of the part from the mold.
Applying mold coatings or using release agents further facilitates ejection by reducing adhesion between the part and the mold. These improvements lead to a more streamlined process, preventing unnecessary slowdowns and reducing overall cycle time.
4. Using Advanced Materials
Material selection has a direct impact on cycle time, as certain plastics cool and solidify faster than others. High-performance thermoplastics with better thermal conductivity used in injection molding, reduce the required cooling time, enabling quicker demolding. Lower-viscosity resins flow more easily within the mold, allowing for reduced injection pressure and shorter fill times. By choosing materials that align with the production goals, manufacturers can optimize the entire molding process for speed and efficiency.
5. Implementing Real-Time Process Monitoring
Integrating smart manufacturing technologies and real-time monitoring systems enhances cycle time optimization by providing instant feedback on process parameters. Machine learning and artificial intelligence (AI) algorithms analyze data to predict and adjust settings for improved efficiency.
Thermal and pressure sensors track temperature and material flow to identify inefficiencies that could extend cycle time. Using data analytics, manufacturers can pinpoint problem areas and make necessary modifications to sustain optimal performance.
6. Predictive Maintenance
Unscheduled machine downtime can lead to prolonged cycle times and reduced productivity. Implementing predictive maintenance strategies ensures that molds and machinery remain in peak condition. Sensors that monitor wear and tear help detect potential failures before they occur, allowing for proactive maintenance rather than reactive repairs.
Regular cleaning and lubrication schedules also contribute to smoother machine operation, preventing sudden breakdowns that could disrupt production cycles.
Balancing Speed and Quality During the Process of Optimizing Cycle Time in Injection Molding
While reducing cycle time in injection moulding is critical for efficiency, it must not come at the expense of part quality. Over-optimizing can lead to defects such as warping, sink marks, or incomplete filling. To avoid these issues, optimizing process parameters, mold design, material selection, and automation, etc, can be adopted for ensuring that manufacturers can achieve high-speed production without compromising integrity the injection molding parts.
Optimizing Process Parameters
Injection speed, pressure, and temperature must be carefully calibrated to avoid defects while maintaining efficiency. Higher injection speeds reduce cycle times, but excessive speed can introduce flow marks or air entrapment.
Adjusting holding pressure ensures proper packing of the material, preventing shrinkage and improving dimensional stability. Temperature control in both the mold and the resin is also critical—consistent temperatures reduce variations in part quality and ensure uniform cooling, minimizing warpage.

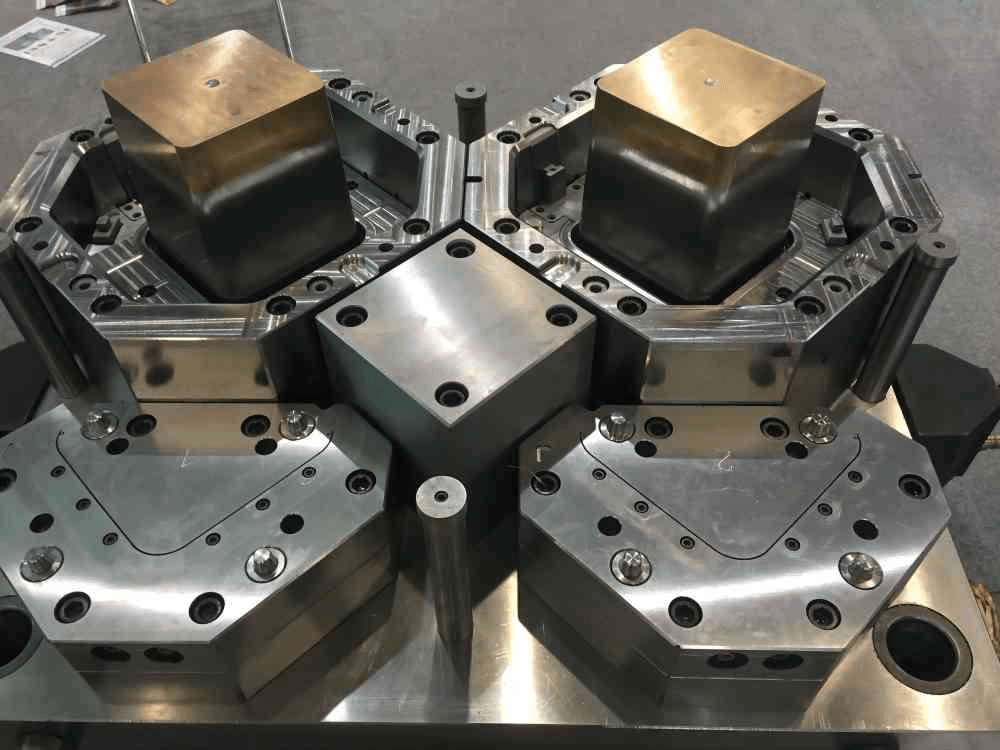

Enhancing Mold Design
Injection mould design plays a fundamental role in balancing speed and quality. Efficient gate and runner placement enable smoother material flow, reducing the risk of short shots or uneven filling. Hot runner systems minimize material waste and shorten cycle times by keeping the resin in a molten state. Additionally, using conformal cooling channels that follow the shape of the mold enhances cooling efficiency, reducing cycle times while maintaining part integrity.
Selecting the Right Materials
Material selection of injection molding significantly impacts cycle time and product quality. High-flow resins allow for faster filling at lower pressures, reducing energy consumption and minimizing defects. Materials with optimized shrinkage properties reduce post-molding dimensional variations, improving consistency.
Additives such as nucleating agents can enhance crystallization rates, reducing cooling time without affecting mechanical strength.
Using Automation for Precision and Repeatability
Automation plays a critical role in maintaining both speed and quality in injection molding. Robotic systems ensure consistent part removal, reducing cycle-to-cycle variations and minimizing damage during ejection. Real-time monitoring and data-driven control systems adjust injection parameters dynamically, ensuring optimal process conditions.
Automated quality inspection systems, such as vision-based defect detection, allow for rapid identification of defects, preventing defective parts from reaching the next production stage.
Final Thoughts
Optimizing cycle time in injection molding requires a combination of design improvements, process refinements, and technological advancements. By implementing these strategies, manufacturers can enhance efficiency, reduce waste, and maximize production capacity while maintaining product quality.
