How to Remove a Concrete Anchor Bolt

In the world of construction and maintenance, concrete anchor bolts are commonly used to firmly secure equipment, support frames, or various structures. They provide solid support for the entire project, ensuring everything remains stable and secure. However, as time passes, project requirements change, or renovations are needed, the removal of concrete anchor bolts becomes an inevitable task. However, how to remove a concrete anchor bolt? Today, we will take you into detail about concrete anchor bolt removal. Let’s go!

Part 1. Preparation for Remove Anchor Bolts from Concrete

Before removing concrete anchor bolts, let’s first prepare the right tools. The right tools not only make the removal process smoother but also significantly improve efficiency, preventing unnecessary issues and damage.

Imagine having the proper tools as if you were equipped with a key that unlocks the “code” to a quick and seamless removal. Below, we will introduce some common tools used for anchor bolt removal, each designed to help you complete the task efficiently and safely.

• Drill: Used to create holes or expand the area around the anchor bolt, helping to loosen it.
• Impact Wrench or Hammer: Used to loosen anchor bolt, especially when it has been tightened.
• Pliers: If the anchor bolt is already loose, pliers can help pull it out easily.
• Crowbar: When the anchor bolt is difficult to remove, a crowbar provides extra leverage.
• Drill Bits: Choose the appropriate drill bit that matches the size of the anchor bolt to ensure the hole is the right size.
• Safety Gear: Such as protective goggles, gloves, and earplugs to ensure safety during the operation.

Part 2. How to Remove a Concrete Anchor Bolt?

Now, let’s explore the detailed steps for removing anchor bolts from concrete. Removing concrete anchor bolts is a process that requires careful attention in each phase. Here is a more detailed explanation of the process:

Step 1. Identify the Type of Anchor Bolt

The first step in removing concrete anchor bolts is identifying the type of anchor bolt you are dealing with. Different types of anchor bolts require different removal methods. The common types include:

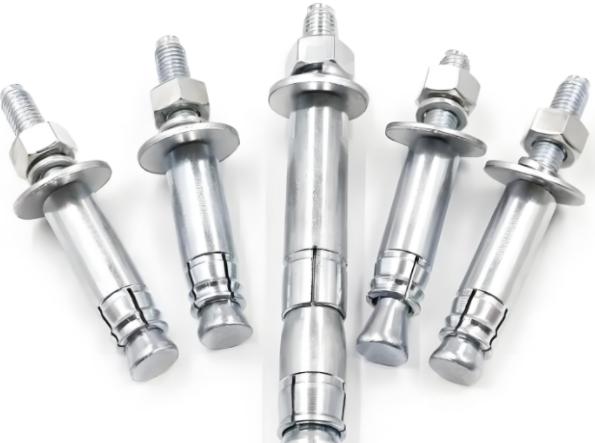

• Expansion Anchor Bolts: Expansion anchor bolts expand outward when tightened, securing themselves within the concrete.
• Bolt Anchors: These are usually fastened to the concrete with threads, creating a strong hold.
• Chemical Anchor Bolts: These rely on chemical adhesives or resins to bond the anchor securely in the concrete.

Each of these anchor bolts requires a slightly different approach, so it’s crucial to understand what you’re working with before proceeding.

Step 2. Clear the Surrounding Area

Ensure the work area is free of any debris, clutter, or obstacles that could interfere with your tools or pose a tripping hazard. A clean workspace helps to reduce the risk of accidents and ensures that your tools won’t slip, leading to mistakes or injuries.

It’s always wise to remove anything in the vicinity that could distract you or cause an unintended mishap.

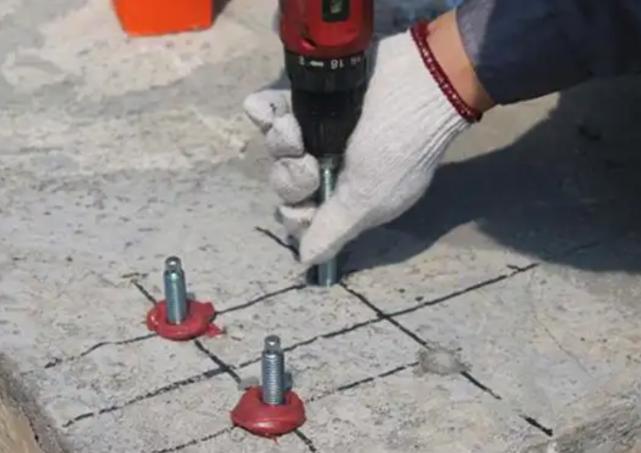

Step 3. Use a Drill to Expand the Hole

If you’re dealing with an expansion anchor bolt, you will first need to use a drill to create a small hole at the center of the anchor bolt. This step is essential because it helps to break the tension and ease the bolt from its tight grip within the concrete.

Drilling this pilot hole expands the area for the subsequent removal process and provides more contact surface for the drill bit, making it easier to loosen the anchor.

Ensure that the drill bit you use is the correct size for the anchor bolt. It is essential not to drill too large of a hole, as this could weaken the surrounding concrete and make removing the anchor bolt more difficult.

Conversely, a hole too small will limit your ability to effectively break the tension of the bolt.

Step 4. Loosen the Anchor Bolt

Once the hole is prepared, the next step is to start loosening the anchor bolt. If the bolt is an expansion anchor, this step can be a little tricky as the expansion mechanism holds it tightly in place.

Use an impact wrench or a hammer to apply gentle but firm force to the top of the anchor bolt. This will help break the grip of the expansion mechanism or the adhesive used in chemical anchors.

For bolt anchors, the process might be a bit simpler, as you can directly turn the bolt using the appropriate wrench or impact tool. If the bolt is tight or rusted, applying a few taps with a hammer can help loosen it.

If the bolt has already started to loosen, you can proceed with using pliers to grip the anchor and gently pull it out. The key here is to apply steady, even pressure, rather than suddenly yanking it, which could damage the surrounding concrete or cause the anchor to break.

Step 5. Remove the Anchor Bolt

After loosening the bolt, the next step is to fully remove it. If the anchor is still tightly stuck, you may need to use a crowbar to provide extra leverage and pry the bolt free from the concrete.

The crowbar can help in cases where the anchor is extremely stubborn and resists being pulled out manually. The additional force from the crowbar allows you to lift the anchor without putting excessive strain on the surrounding area.

For stubborn bolts that remain embedded deeply in the concrete, it may be necessary to drill further to expand the hole even more, making room for a better grip. If you’ve already drilled and the bolt hasn’t budged, try drilling a larger hole or making several small drill points around the anchor, breaking the concrete’s hold on it.

If necessary, take extra cautious during this step to avoid causing any undue damage to the surrounding surface, especially when using a crowbar or additional leverage tools.

Part 3. Common Issues & Solutions for Removing Concrete Anchor Bolts

During the process of removing concrete anchor bolts, you may encounter some challenges. Here are the most common issues and how to solve them effectively:

1. Damaged Anchor Bolt Head

One of the most frustrating problems when removing anchor bolts is when the bolt head becomes damaged or stripped, making it difficult to grab with standard tools. This can happen if the bolt has been over-tightened or if the head has worn down due to prolonged exposure to weather or heavy use.

Solution:

Use a Longer Bolt: If the anchor bolt has a long threaded section, you can insert a longer bolt into the same hole. Tighten this bolt into the anchor and use it to help twist or loosen the original bolt.

Drill and Expand the Hole: In some cases, drilling a larger hole around the anchor bolt can provide enough space to grip the remains of the bolt using pliers or other tools. Expanding the hole carefully and strategically can loosen the bolt’s grip on the concrete, making removal easier.

2. Difficulty Loosening the Anchor Bolt

Some anchor bolts may be extremely difficult to loosen, particularly if they’ve been in place for a long time or have rusted over the years. This is especially common with expansion anchor bolts or chemical anchors. The corrosion or bond formed between the anchor and the concrete can make the bolt stubborn and resistant to movement.

Solution:

Apply Rust Remover: For rusted anchor bolts, use a chemical rust remover or a penetrating oil. These products can help dissolve the rust and grease that have caused the bolt to seize up. Apply the rust remover generously to the anchor and let it sit for the recommended time.

Drill Around the Anchor: If applying rust remover doesn’t work, drilling additional holes around the anchor bolt can help break the bond between the bolt and the concrete. This will relieve some of the pressure, allowing the bolt to loosen more easily.

Increase Force Gradually: If the bolt refuses to budge even with the rust remover, gradually increase your force using an impact wrench or hammer. Tap the bolt gently but firmly to encourage it to break free, but be cautious to avoid damaging the surrounding concrete.

3. Anchor Bolt Won’t Come Out

If the anchor bolt is still stuck after loosening it, you may encounter the problem of it being nearly impossible to pull out. This can occur if the anchor has expanded too much within the concrete or if it has bonded with the concrete too tightly. In this case, simply pulling it out may not be enough.

Solution:

Use Leverage Tools: If the anchor bolt is stubborn, increase your leverage by using a crowbar or prying tool. These tools can provide the extra force needed to pull out a difficult bolt. Position the crowbar under the anchor or at edge of the bolt, and apply steady pressure to pull it out.

Apply Heat: If the anchor is particularly difficult to remove due to rust, corrosion, or tight expansion, heating the anchor bolt can sometimes help loosen it.

Use a heat gun or torch to gently heat the anchor bolt, which will cause it to expand and contract, breaking the bond between the anchor and the concrete. Be careful not to overheat the surrounding concrete, as this could cause cracks.

Drill Further: If the bolt is still firmly stuck, you may need to drill deeper into the anchor. Using a larger drill bit, carefully create a bigger hole around the anchor.

This will allow more space for the anchor to grip the tools and help loosen it. Sometimes drilling at multiple points around the bolt or drilling out the core of the anchor can provide the necessary clearance to remove it.

Final Words

Removing concrete anchor bolts is a task that requires patience and skill. Proper handling can effectively prevent damage to the concrete and ensure safety. By understanding the types of anchor bolts, preparing the right tools, and following the steps, you can efficiently complete the removal process.

If you’re looking for reliable anchor bolts, as a professional anchor bolt manufacturer, KENENG is committed to providing high-quality, durable anchor bolt products. Whether you’re engaged in construction or equipment installation, KENENG can offer customized solutions to meet your needs.
