Integrating Battery Springs into EV Battery Systems

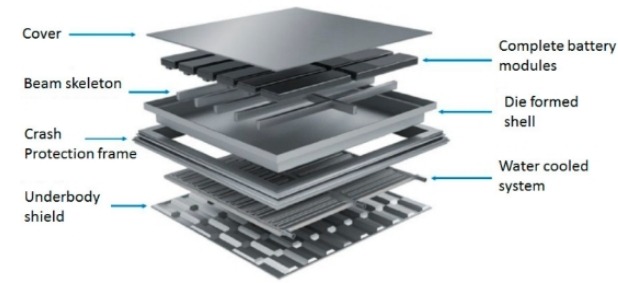

Battery system is a critical component that dictates the efficiency, performance, and safety of EVs. Among the various elements that constitute an EV battery system, battery springs play an essential role. This article explores the importance of integrating battery springs into EV battery systems and how they contribute to overall electric vehicle performance.

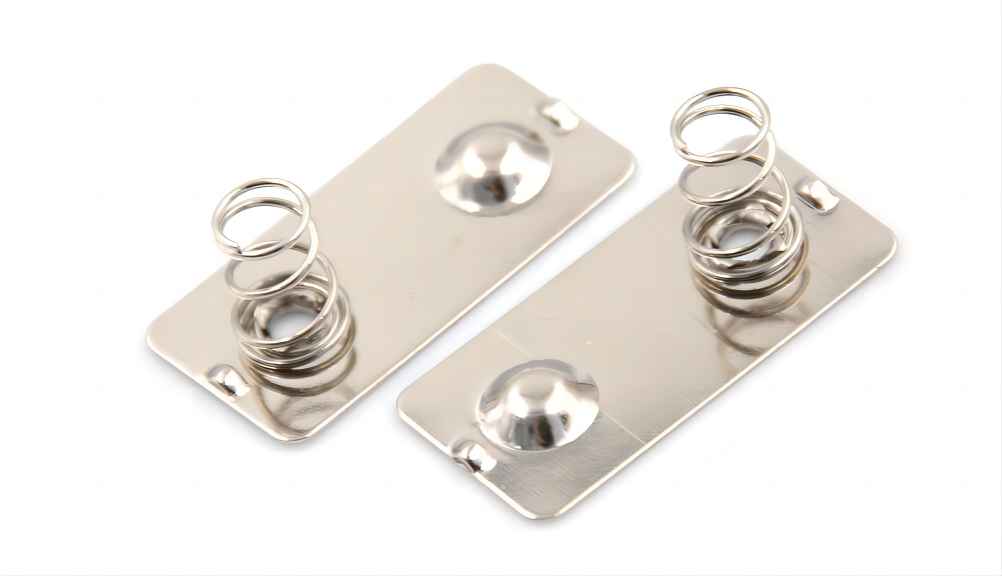

What Are Battery Springs
Battery springs are specialized mechanical components designed to maintain electrical contact between the battery cells and the corresponding terminals. These springs ensure a consistent and reliable connection, which is crucial for the efficient transfer of power. They are typically made from high-quality, conductive materials that can withstand the operational stresses of an electric vehicle’s battery system.
Key Functions of Battery Springs in EV Battery Systems
1. Ensuring Reliable Electrical Contact
Battery springs play a pivotal role in maintaining a consistent and secure electrical connection between individual battery cells and the overall system. These springs exert a constant, even pressure on the contact points, preventing disruptions caused by vibrations, shocks, or temperature fluctuations. This reliable electrical contact is paramount for optimal energy transfer, preventing power losses, and ensuring consistent vehicle performance. A compromised connection can lead to decreased efficiency, system instability, and potential safety hazards.
2. Accommodating Thermal Expansion and Contraction
Lithium-ion batteries undergo significant volume changes due to temperature variations during charging, discharging, and ambient temperature shifts. Battery springs, with their inherent flexibility, accommodate these expansions and contractions without compromising the electrical connection. By preventing excessive stress on the battery cells and terminals, springs help maintain the structural integrity of the battery pack and prolong its lifespan.
3. Enhancing Safety
The secure and stable electrical connection provided by battery springs is crucial for preventing electrical hazards. Loose connections or intermittent contact can generate heat, increasing the risk of short circuits and thermal runaway. By maintaining consistent pressure on the contact points, springs minimize these risks, contributing to overall battery pack safety.
4. Improving Durability and Longevity
Battery springs play a crucial role in extending the lifespan of the battery pack. By absorbing vibrations and maintaining consistent contact pressure, springs reduce wear and tear on the battery cells and terminals. This helps prevent corrosion, fatigue, and other forms of degradation, ultimately leading to a longer battery life and reduced maintenance costs.
5. Absorbing Shock and Vibration
EVs are subjected to various shocks and vibrations during operation, which can impact the battery pack’s performance and longevity. Battery springs act as shock absorbers, mitigating the effects of these forces on the battery cells and terminals. By reducing stress and preventing damage, springs contribute to the overall durability and reliability of the battery pack.
6. Facilitating Easy Assembly and Maintenance
Battery springs simplify the assembly and disassembly of battery packs. Their design allows for easy installation and removal of battery cells, reducing labor costs and increasing efficiency. Additionally, springs enable quick and convenient access to battery components for maintenance, inspection, or replacement, minimizing downtime and repair costs.
7. Supporting Structural Integrity
Battery springs contribute to the overall structural integrity of the battery pack by maintaining the correct positioning of battery cells. They prevent movement and misalignment, which can lead to internal damage and reduced performance. By providing essential support, springs help ensure the long-term reliability and safety of the battery pack.

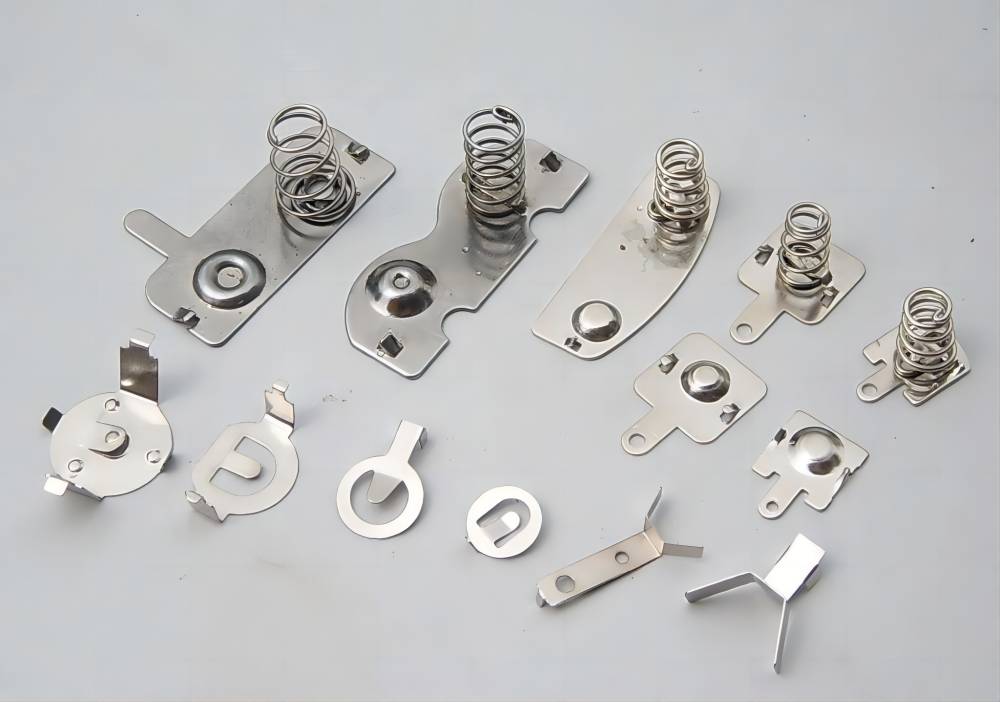

Types of Battery Springs Used in EV Battery Systems
Different types of battery springs are utilized depending on the specific requirements of the battery pack. Here’s an overview of the main types of battery springs used in EV battery systems.

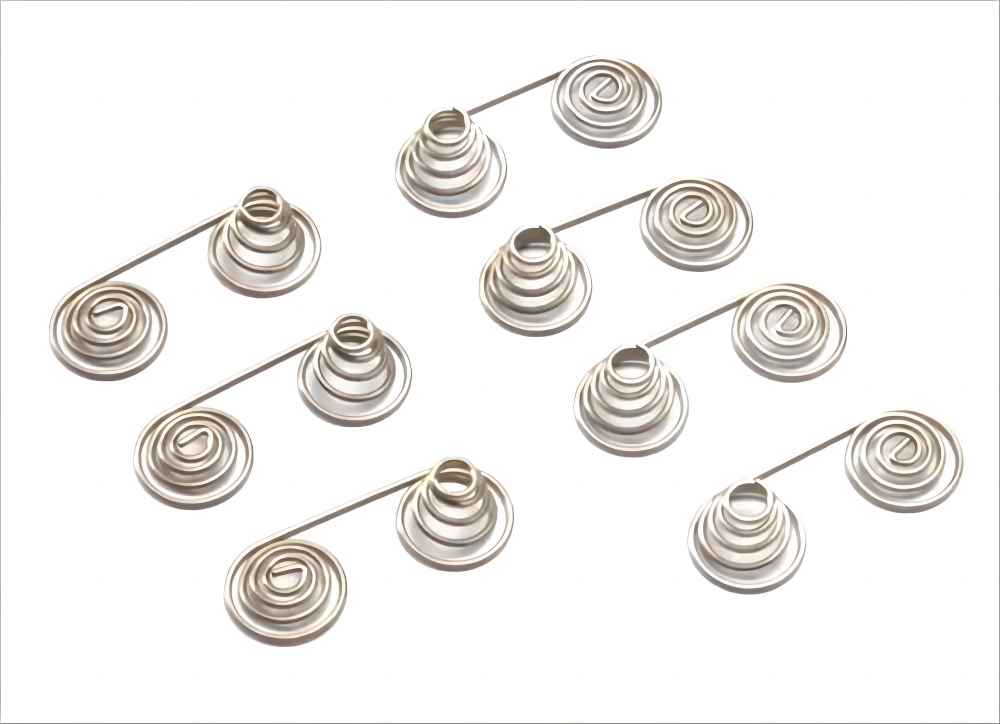

1. Compression Springs
Compression springs are coiled wire structures designed to resist compressive forces. In EV battery packs, they exert consistent pressure on battery terminals, ensuring reliable electrical contact. Their ability to absorb shock and vibration makes them suitable for battery packs subjected to rigorous conditions.
Key applications:
- Maintaining constant pressure on battery terminals
- Absorbing vibrations and shocks
- Compensating for thermal expansion and contraction
2. Torsion Springs
Torsion springs are coiled springs that resist twisting or rotational forces. In EV battery packs, they are employed to apply specific torque to connectors or terminals. This controlled force ensures stable connections in dynamic battery configurations.
Key applications:
- Applying precise torque to connectors
- Maintaining pressure on rotating components
- Counteracting rotational forces
3. Leaf Springs
Leaf springs are flat, elongated springs that provide uniform pressure along their length. Their durability and load-bearing capacity make them suitable for compact battery packs with limited space.
Key applications:
- Providing even pressure distribution in compact battery packs
- Accommodating varying cell shapes and sizes
- Maintaining consistent electrical contact
4. Contact Springs
Contact springs are specialized springs designed for optimal electrical conductivity. They often incorporate conductive materials and precise geometries to minimize resistance and maximize current flow.
Key applications:
- Ensuring low-resistance electrical connections
- Handling high current loads
- Providing reliable contact between battery components
5. Flat Springs
Flat springs are thin, flat metal strips designed to flex and return to their original shape. Their compact design and ability to exert force make them suitable for space-constrained applications.
Key applications:
- Providing pressure in limited space environments
- Maintaining contact in compact battery pack designs
- Offering flexibility in battery pack configurations
6. Piano Wire Springs
Piano wire springs are high-carbon steel springs renowned for their strength, durability, and resistance to deformation. They are employed in demanding battery pack applications requiring exceptional resilience.
Key applications:
- Withstanding high loads and stresses
- Providing long-term durability
- Ensuring reliable performance in harsh conditions
The choice of battery spring type depends on factors such as battery cell configuration, pack size, operating conditions, and desired performance characteristics. Careful consideration of these factors is essential for optimizing battery pack performance and longevity.
Challenges and Future Solutions in Integrating Battery Springs into EV Battery Systems
Integrating battery springs into EV battery systems presents several challenges, as the future technology to advance, the industry can overcome these obstacles and enhance the performance, reliability, and cost-effectiveness of battery springs in electric vehicles.
| Challenge | Description | Future Solutions |
| Material Selection | Choosing materials that are highly conductive, durable, and capable of withstanding operational stresses. | Development of advanced materials with better conductivity and durability.Research into new alloys and composites. |
| Design Complexity | Designing battery springs to meet the specific requirements of EV battery packs, including size, shape, and mechanical properties. | Use of advanced simulation tools for precise design.Modular and customizable spring designs to fit various battery configurations. |
| Manufacturing Precision | Ensuring high-precision manufacturing to meet stringent performance requirements. | Adoption of advanced manufacturing techniques such as 3D printing and precision stamping. Implementation of stringent quality control measures. |
| Thermal Management | Managing the thermal expansion and contraction of battery cells to maintain consistent contact. | Integration of temperature-resistant materials.Development of advanced thermal management systems. |
| Space Constraints | Integrating battery springs into compact battery packs with limited space. | Innovations in miniaturization.Development of flexible or adaptive spring designs that can fit into constrained spaces. |
| Wear and Tear | Reducing wear and tear on springs due to repetitive thermal cycles and mechanical stress. | Use of high-durability materials and coatings.Implementation of designs that minimize mechanical stress. |
| Vibration and Shock Absorption | Ensuring springs can absorb shocks and vibrations without degrading performance. | Development of shock-absorbing materials and designs.Incorporation of damping features in spring systems. |
| Real-Time Monitoring | Implementing systems to monitor the status of battery springs in real-time for better performance and safety management. | Integration of smart sensors and IoT technology.Development of real-time data analysis and feedback systems. |
| Cost Efficiency | Balancing the cost of advanced battery springs with overall system cost and performance benefits. | Optimization of manufacturing processes to reduce costs. Economies of scale through mass production and material sourcing. |
Conclusion
Battery spring integration is a critical aspect of electric vehicle design, playing a vital role in ensuring reliable electrical contact, accommodating thermal expansion, enhancing safety, and improving the durability of battery packs. While challenges exist, ongoing innovations promise to address these issues and further enhance the performance of battery springs in EVs. As the electric vehicle industry continues to evolve, the importance of robust and reliable battery spring systems will only grow, contributing to the broader adoption of EVs.
