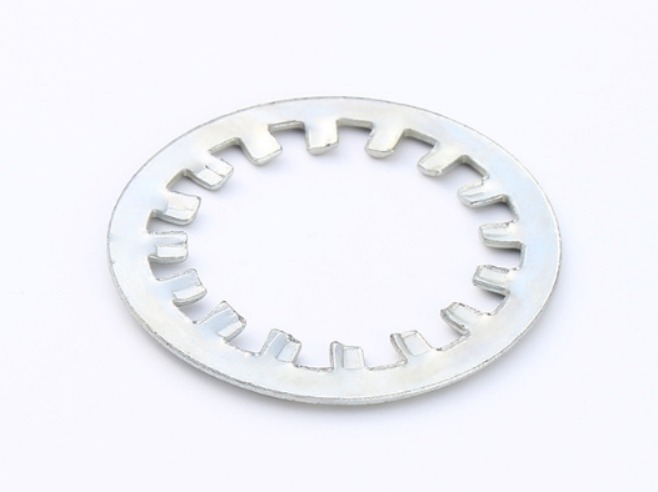

Internal Tooth washer

  • Size: 2.2-31
  • Material: Carbon steel
  • Application: It is installed on bolts with nut together, it acts a bit like a spring washer

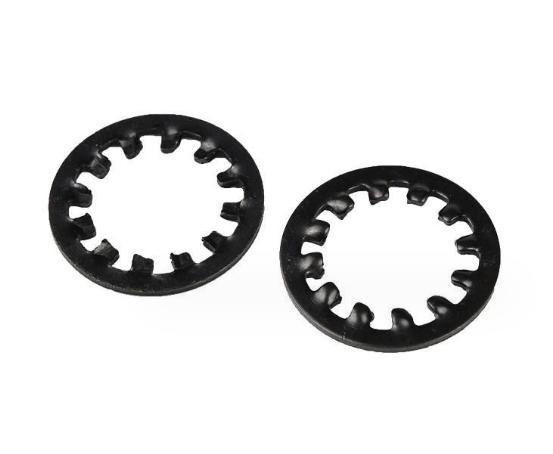

  • Finishing: Zinc plating, Blackening
  • Standard: DIN6797
  • Processing type:  Punching

Are You an OEM Manufacturer?

Yes

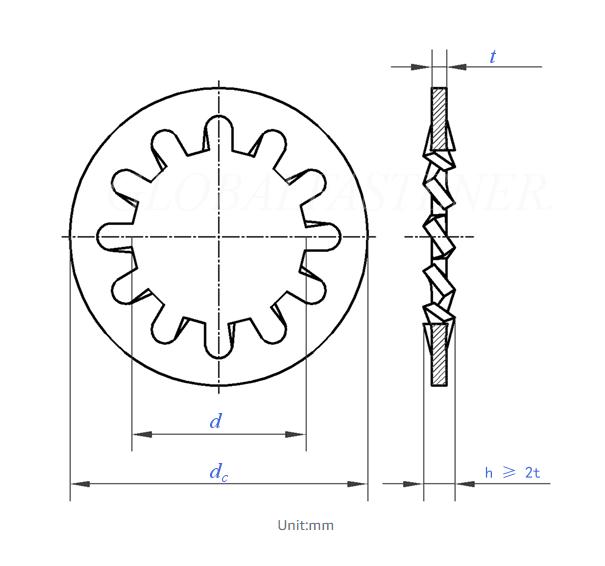

Specifications of Internal Tooth Washer

Size 2.2 2.7 3.2 3.7 4.3 5.3 6.4 7.4 8.4 10.5
d min=nominal size 2.2 2.7 3.2 3.7 4.3 5.3 6.4 7.4 8.4 10.5
max 2.34 2.84 3.38 3.88 4.48 5.48 6.62 7.62 8.62 10.77
dc max=nominal size 4.5 5.5 6 7 8 10 11 12.5 15 18
min 4.2 5.2 5.7 6.64 7.64 9.64 10.57 12.07 14.57 17.57
t 0.3 0.4 0.4 0.5 0.5 0.6 0.7 0.8 0.8 0.9
Number of Teeth 6 6 6 6 8 8 8 8 8 9
per 1000 units≈kg 0.04 0.045 0.045 0.085 0.1 0.2 0.25 0.35 0.55 0.9
For Nominal Thread Diameter M2 M2.5 M3 M3.5 M4 M5 M6 M7 M8 M10
Size 13 15 17 19 21 23 25 28 31
d min=nominal size 13 15 17 19 21 23 25 28 31
max 13.27 15.27 17.27 19.33 21.33 23.33 25.33 28.33 31.39
dc max=nominal size 20.5 24 26 30 33 36 38 44 48
min 19.98 23.48 25.48 29.48 32.38 35.38 37.38 43.38 47.38
t 1 1 1.2 1.4 1.4 1.5 1.5 1.6 1.6
Number of Teeth 10 10 12 12 12 14 14 14 14
per 1000 units≈kg 1.2 1.9 2.4 3.7 4.1 6 6.5 8.5 9.5
For Nominal Thread Diameter M12 M14 M16 M18 M20 M22 M24 M27 M30


Why Choose KENENG Internal Tooth Washer

1. Simple structure, easy installation, can quickly fix the bearing;

2. It has good compressive resistance and wear resistance, and can withstand large axial forces;

3. The clamp structure can effectively prevent the bearing from sliding or loosening during operation ;

4. It has good reuse performance and can be installed and disassembled many times.
