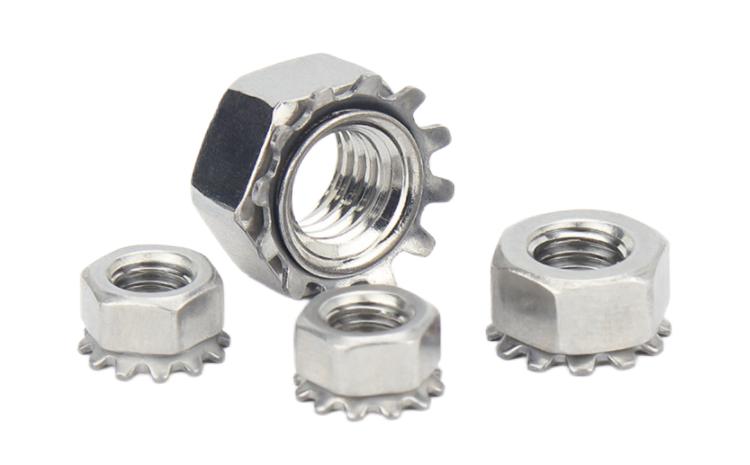

Kep Nut(External Tooth K Nut)
- Size: M3 M4 M6 M8 M10 #4-40 #6-32 #8-32 #10-24 1/4” 5/16”
- Material: Carbon steel, stainless steel 304
- Surface Treatment: Plain, Zinc plated (blue, white, black, yellow)
- Application fields: Heavy Industry, Mining, Water Treatment, Retail Industry
- Standard : ISO, DIN, ANSI/ASME, GB
- Manufacturing process: Cold forging

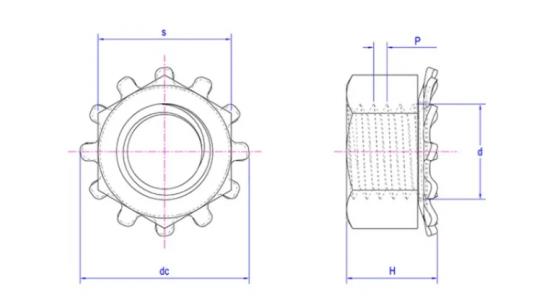

Specification of Kep Nut
| Unit: mm | |||||||||||||||||
| specification | M3 | M4 | M5 | M6 | M8 | M10 | M12 | #4 | #6 | #8 | #10 | #12 | 1/4 | 5/16 | 3/8 | 1/2 | |
| p | 0.5 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 40 | 32 | 32 | 24|32 | 24 | 20|28 | 18 | 16 | 13 | |
| H min | 2.9 | 3.8 | 4.8 | 5.8 | 7.5 | 9.3 | 11.7 | 0.106 | 0.13 | 0.15 | 0.152 | 0.193 | 0.224 | 0.319 | 0.382 | 0.736 | |
| H max | 3.3 | 4.2 | 5.2 | 6.2 | 7.9 | 9.7 | 12.2 | 0.118 | 0.148 | 0.165 | 0.167 | 0.209 | 0.24 | 0.225 | 0.398 | 0.484 | |
| dc min | 7 | 7.85 | 9.05 | 10.85 | 14.7 | 18.7 | 21.9 | 0.276 | 0.339 | 0.37 | 0.394 | 0.494 | 0.494 | 0.579 | 0.651 | 0.862 | |
| dc max | 7.26 | 8.15 | 9.3 | 11.15 | 15 | 19 | 22.2 | 0.286 | 0.346 | 0.378 | 0.406 | 0.504 | 0.5 | 0.591 | 0.665 | 0.874 | |
| s min | 5.3 | 6.78 | 7.78 | 9.78 | 12.73 | 16.73 | 18.67 | 0.241 | 0.302 | 0.332 | 0.365 | 0.428 | 0.428 | 0.489 | 0.551 | 0.736 | |
| s max | 5.5 | 7 | 8 | 10 | 13 | 17 | 19 | 0.25 | 0.312 | 0.344 | 0.375 | 0.438 | 0.438 | 0.5 | 0.562 | 0.75 |
Advantages of Kep Nut
- Excellent materials.
- Good corrosion resistance, heat resistance, rust resistance, good mechanical properties.
- Standard hexagon, smooth surface.
Why Choosing KENENG Kep Nut
• Professional and experienced design and sales team
• Response within 24 hours
• Full stock for almost standard fasteners
• Fast delivery and response
• Samples available
