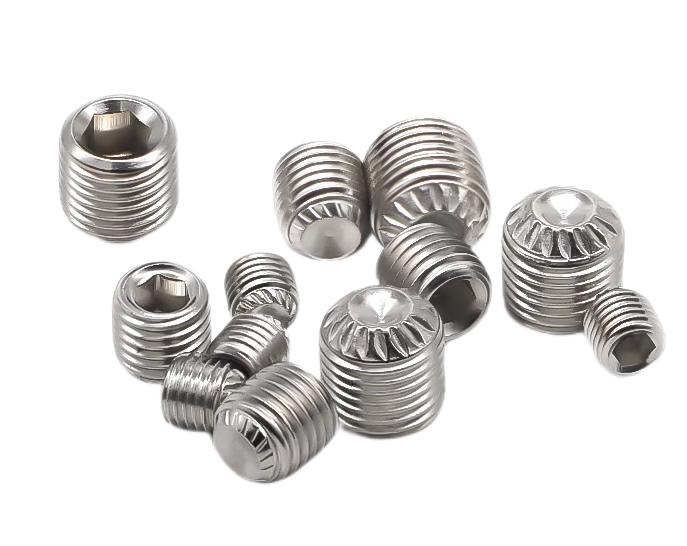

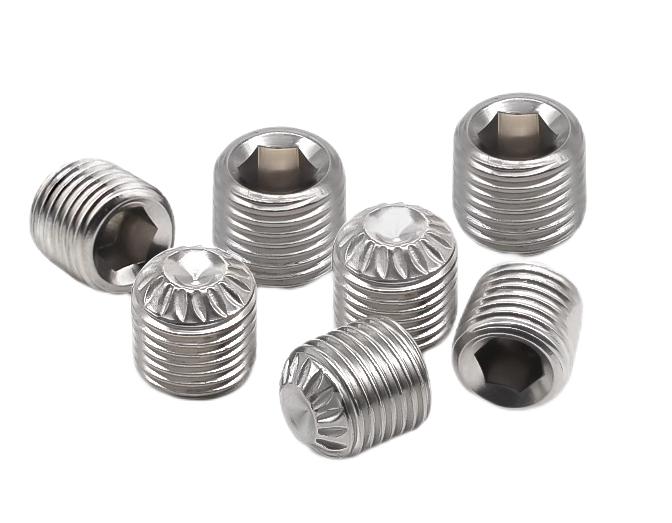

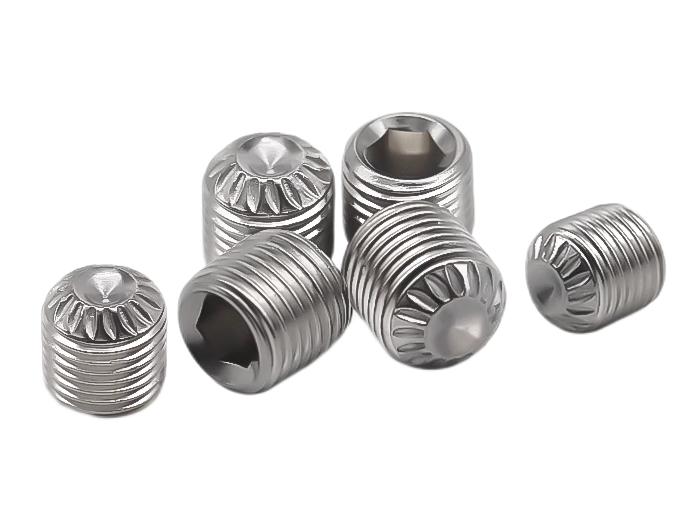

Knurled Hexagon Socket Set Screws with Cup Point

  • Material: 304 /316 Stainless steel
  • Finishing: Plain
  • Grade: A2-70
  • Size: M1.4~M20
  • Manufacture Process: cold forge–thread rolling

Are You an OEM Manufacturer?

Yes

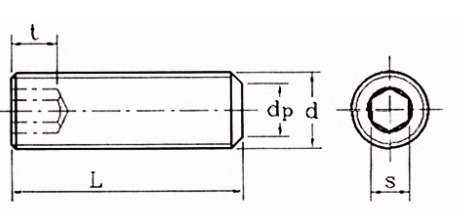

Specifications of Knurled Hexagon Socket Set Screws with Cup Point

Specifications of Knurled Hexagon Socket Set Screws with Cup Point
Units: mm
Thread Specifications (d) M1.4 M1.6 M1.8 M2 M2.5 M3 M4 M5
Pitch(p) 0.3 0.35 0.35 0.4 0.45 0.5 0.7 0.8
S nominal 0.7 0.7 0.7 0.9 1.3 1.5 2 2.5
max 0.724 0.724 0.724 0.902 1.295 1.545 2.045 2.56
min 0.711 0.711 0.711 0.889 1.27 1.52 2.02 2.52
t 0.6 0.7 0.8 0.8 1.2 1.2 1.5 2
Thread Specifications (d) M6 M8 M10 M12 M14 M16 M18 M20
Pitch(p) 1 1.25 1.5 1.75 2 2 2.5 2.5
S nominal 3 4 5 6 6 8 10 10
max 3.08 4.095 5.095 6.095 6.095 8.115 10.12 10.12
min 3.02 4.02 5.02 6.02 6.02 8.025 10.03 10.03
t 2 3 4 4.8 5.6 6.4 7.2 8

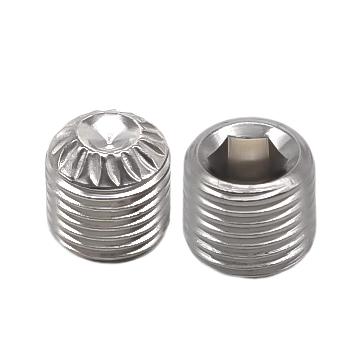

Advantages of KENENG Knurled Hexagon Socket Set Screws with Cup Point

  1. Smooth and round, high hardness
  2. Clear thread, smooth end, no burrs
  3. Durable, not easy to rust

Materials we can use on Knurled Hexagon Socket Set Screws with Cup Point
