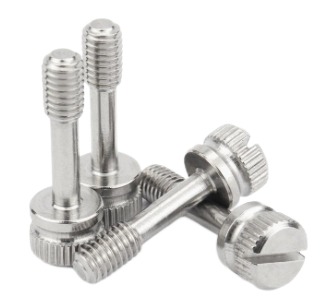

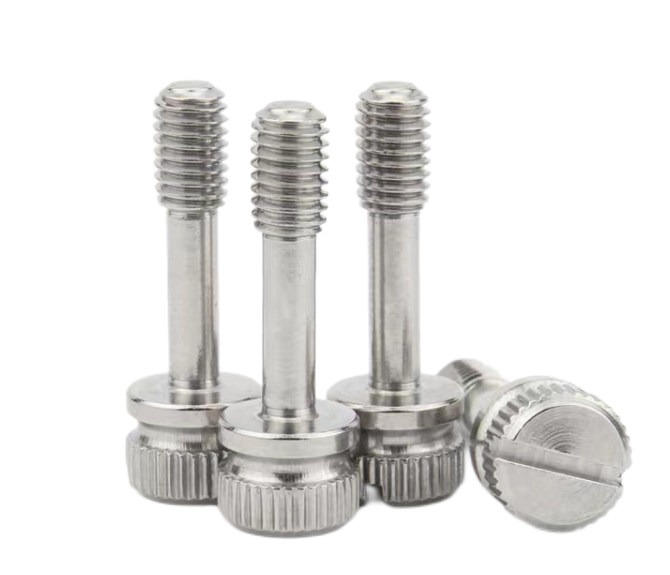

Custom Knurled Screw

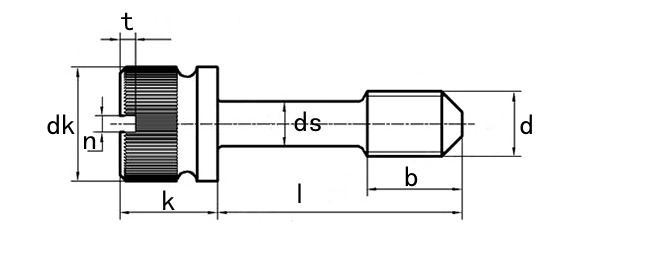

Specifications of Knurled Screw
| Thread specification | p | ds | ds | dk | Before knurling | k | k | n | n | n | t | b |
| d | pitch | max | min | max | min | max | min | Nominal | max | min | min | thread length |
| M3 | 0.5mm | 2mm | 1.86mm | 5mm | 4.82mm | 4.5mm | 4.32mm | 0.8mm | 1mm | 0.86mm | 0.7mm | 4mm |
| M4 | 0.7mm | 2.8mm | 2.66mm | 8mm | 7.78mm | 6.5mm | 6.32mm | 1.2mm | 1.51mm | 1.26mm | 1mm | 6mm |
| M5 | 0.8mm | 3.5mm | 3.32mm | 9mm | 8.78mm | 7mm | 6.78mm | 1.2mm | 1.51mm | 1.28mm | 1.2mm | 8mm |
| M6 | 1mm | 4.5mm | 4.32mm | 11mm | 10.73mm | 10mm | 9.64mm | 1.6mm | 1.91mm | 1.66mm | 1.4mm | 10mm |
| M8 | 1.25mm | 5.5mm | 5.32mm | 14mm | 13.73mm | 12mm | 11.57mm | 2mm | 2.31mm | 2.06mm | 1.9mm | 12mm |
| M10 | 1.5mm | 7mm | 6.78mm | 17mm | 16.73mm | 13.5mm | 13.07mm | 2.5mm | 2.81mm | 2.56mm | 2.4mm | 15mm |
Advantages of KENENG Custom Knurled Screw
KENENG’s monthly production capacity exceeds 10 million pieces.
KENENG can produce fasteners including: screws, studs, nuts, flat washers and rivets of various specifications. Various non-standard CNC parts, stamping parts, injection molding parts, nylon screws, nylon nuts, nylon studs, etc.
Ordering process of Lathe parts (non standard parts): Receive CAD or 3D design → Quotation → Signing Pi → Receive deposit → Make sample, approval by customer → Mass production → Receive Balance → Delivery
Packing:
Plastic bag + pallet + carton, or according to customer requirements
