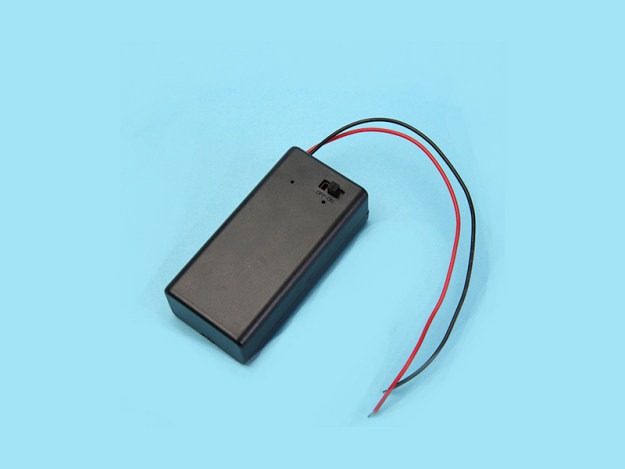

KY-35004-1-1C (9V battery box with cover and switch)
Product Introduction
This 9V battery holder with switch can hold one 9V battery. The battery can output 9V voltage and this holder can be used as power supply for measuring meters, wireless walkie-walkie, wireless microphone, radio etc. Keyu brand 9V battery holder with switch is made of high quality materials, combined with advanced production equipment and strict quality control, for you to produce 100% good products.
Product Parameter (Specification)
| Product name | 9V battery holder with switch |
| Type | Rectangle battery holder |
| Model No. | KY-35004-1-1C |
| Material | ABS Resin+Brass tin plated |
| Size | 66.6*33.5*24.6mm |
| Rating | 9.0V |
| Color | Black |
| Number of cells | 1 cells |
| Cell Arrangement | \ |
| Port | Shenzhen , Guangzhou |
| MOQ | 2000pcs |
Product Feature And Application
- This 9V battery holder with switchcan be made to 9.0V battery output
- The opposite side is the same as the picture shown.
- The perfect external power source for electronic DIY.
- Holds one 9V battery.
- Easy install, convenient to use.
- High-quality plastic material.
- The perfect external power source for measuring meters, wireless walkie-walkie, wireless microphone, radio etc.
Product Details

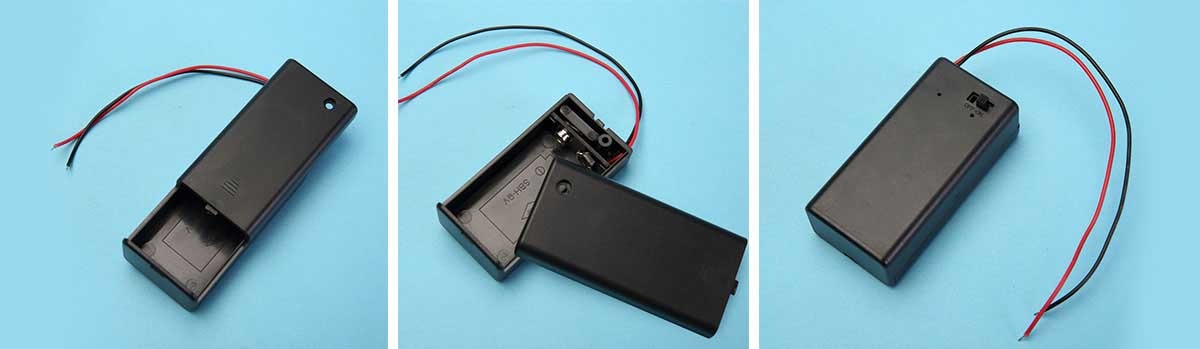

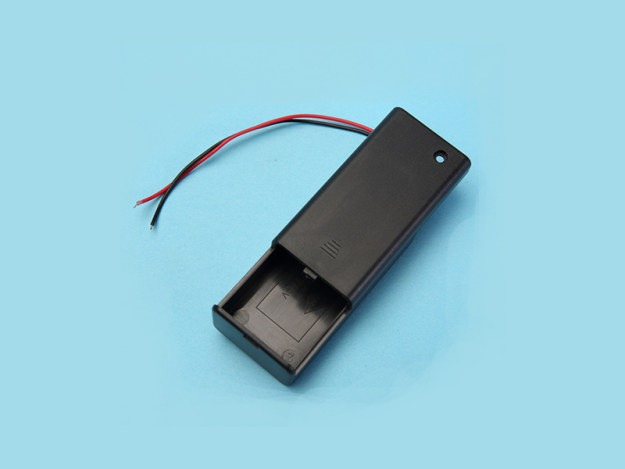

9V battery holder with switch detail:
Battery Type: Rectangle plastic battery holder
Place of Origin: Dongguan, China
Color: Black
Material: ABS Resin+Brass tin plated+26AWG1007 UL/CSA approved wire
Product name: 9V battery holder with switch
Style: Holder(open)
Mounting Type: Custom
Operating Temperature: -10-100℃
Size: 66.6*33.5*24.6mm
Termination Style: wire
Nominal Voltage: 9.0V
Product Qualification
All of our 9V battery holder with switch with ISO9001, ROHS, Dun & Bradstreet certifications.
