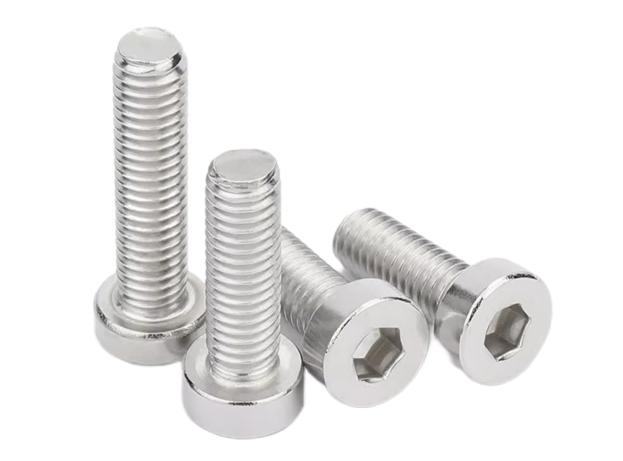

Low head Hexagon Socket Head Cap Screws

Low head Hexagon Socket Head Cap Screws

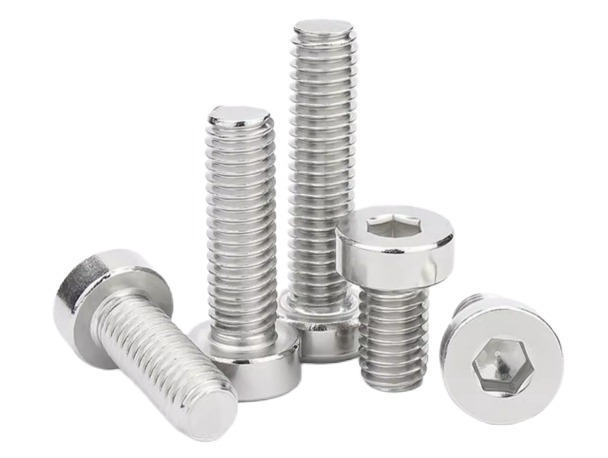

Low head Hexagon Socket Head Cap Screw Suppliers

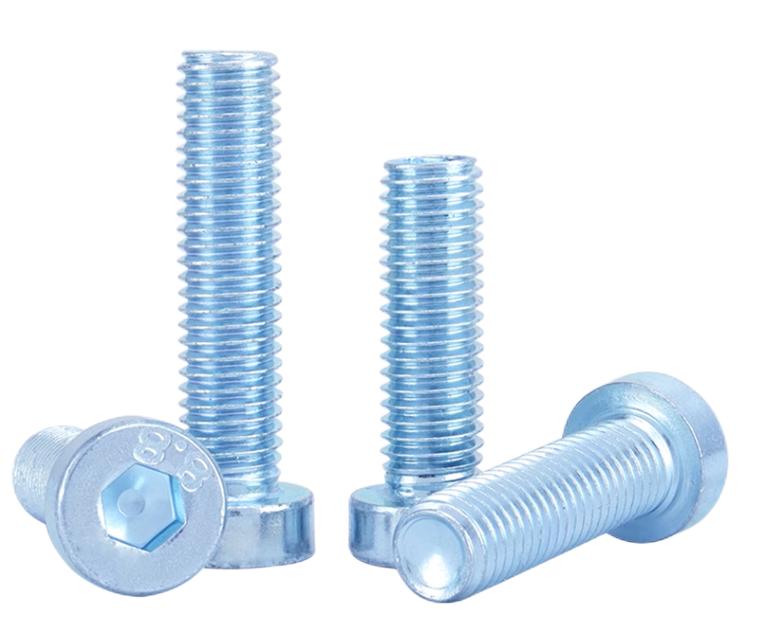

Low head Hexagon Socket Head Cap Screw

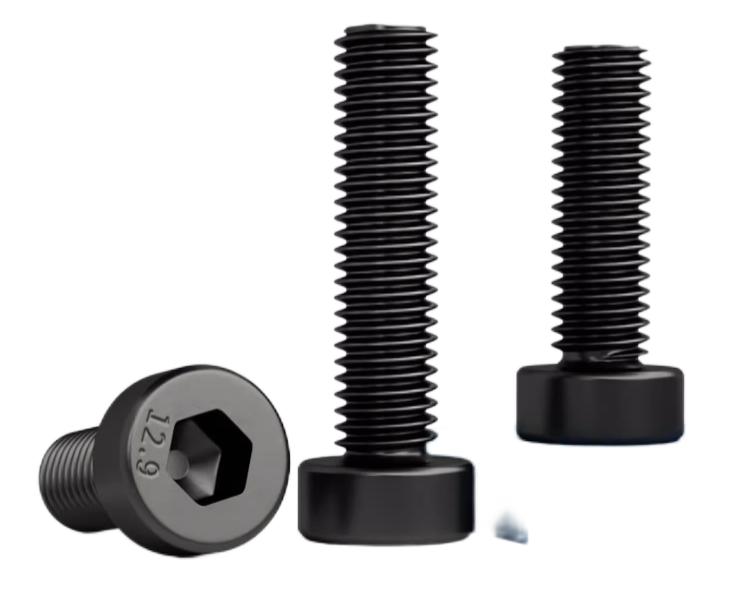

Low head Hexagon Socket Head Cap Screws Factory
  • Low head Hexagon Socket Head Cap Screws
  • Low head Hexagon Socket Head Cap Screw Suppliers
  • Low head Hexagon Socket Head Cap Screw
  • Low head Hexagon Socket Head Cap Screws Factory
    • Size: M2-M24
    • Grade: 4.8, 8.8, 10.9, 12.9, A2-70, A4-70
    • Material: carbon steel, alloy steel
    • Standard: DIN7984, DIN6912
    • Finishing: Galvanized, black oxide
    • Application: Widely used in construction, furniture, machinery,medical and many other industries field.

    Are You an OEM Manufacturer?

    Yes

    Specifications of Low head Hexagon Socket Head Cap Screws

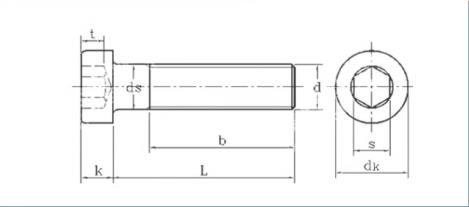

    specifications of Low head Hexagon Socket Head Cap Screw
    Nominal diameter（d）pitch(p)bdkkst
    L≤125125≤L≤200L＞200maxminmaxminmaxminmaxmin
    M30.5mm12mm//5.5mm5.32mm2mm1.86mm2.1mm2.02mm1.62mm1.38mm
    M40.7mm14mm//7mm6.78mm2.8mm2.66mm2.6mm2.52mm2.42mm2.18mm
    M50.8mm16mm//8.5mm8.28mm3.5mm3.32mm3.1mm3.02mm2.82mm1.58mm
    M61mm18mm//10mm9.78mm4mm3.82mm4.12mm4.02mm3.12mm2.88mm
    M81.25mm22mm28mm/13mm12.73mm5mm4.82mm5.14mm5.02mm3.95mm3.65mm
    M101.5mm26mm32mm/16mm15.73mm6mm5.82mm7.175mm7.025mm4.65mm4.35mm
    M121.75mm30mm36mm/19mm17.73mm7mm6.78mm8.175mm8.025mm5.15mm4.85mm
    M142mm34mm40mm/21mm20.67mm8mm7.78mm10.175mm10.025mm5.45mm5.12mm
    M162mm38mm44mm57mm24mm23.67mm9mm8.78mm12.212mm12.032mm5.65mm5.32mm
    M182.5mm38mm48mm61mm27mm26.67mm10mm9.78mm12.212mm12.032mm6.68mm6.32mm
    M202.5mm46mm52mm65mm30mm29.67mm11mm10.73mm14.212mm14.032mm7.68mm7.32mm
    M222.5mm50mm56mm69mm33mm32.61mm12mm11.73mm14.212mm14.032mm8.18mm7.82mm
    M243mm54mm60mm73mm36mm35.61mm13mm12.73mm17.23mm17.05mm8.18mm7.82mm

    Why Choose KENENG Low head Hexagon Socket Head Cap Screws

    KENENG has complete lathes, punches and thread rolling machines. Production and testing of parts can be carried out. We have excellent quality inspection capability: we can provide salt spray, film thickness and various inspection reports.

    We have specialized designers and production personnel and complete production lines.

    We produce a wide range of products at reasonable prices, and ensure product quality.

    Materials we can use on Low head Hexagon Socket Head Cap Screws
