Methods of Quality Control in CNC Milling Processes

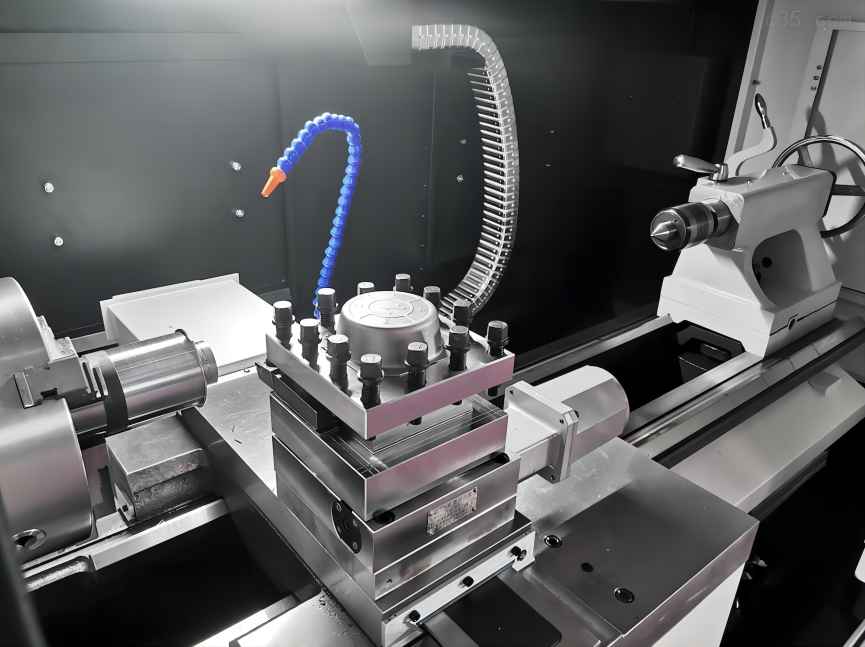

CNC milling processes allow for the creation of intricate components with remarkable accuracy. However, maintaining and enhancing this precision requires robust quality control measures throughout the CNC milling processes.
Key Aspects of Quality Control in CNC Milling
At its core, quality control in CNC milling is about upholding standards of accuracy, consistency, and reliability in the production of machined parts. It involves a systematic approach to monitoring and optimizing every aspect of the milling process, from machine calibration to final inspection.

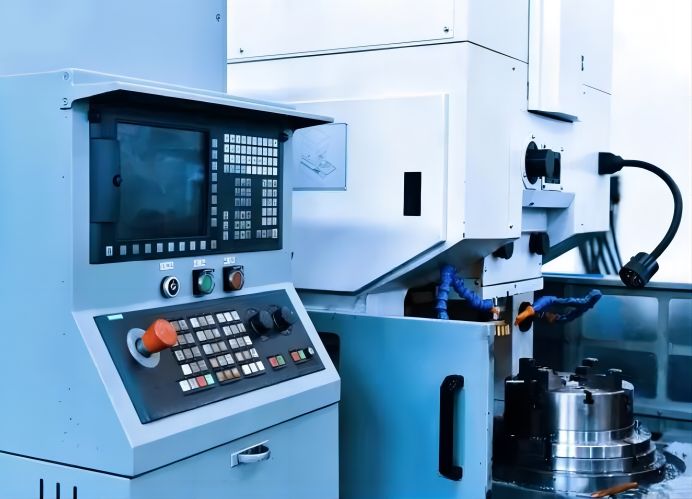

1. Machine Calibration and Maintenance
- Regular calibration and maintenance of CNC milling machines are essential to ensure they operate within specified tolerances.
- Calibration involves verifying the accuracy of machine axes, spindle speed, tool offsets, and positional accuracy through precise measurements and adjustments.
- Scheduled maintenance tasks, such as lubrication, cleaning, and inspection of machine components, help prevent wear, reduce machine downtime, and maintain optimal performance.

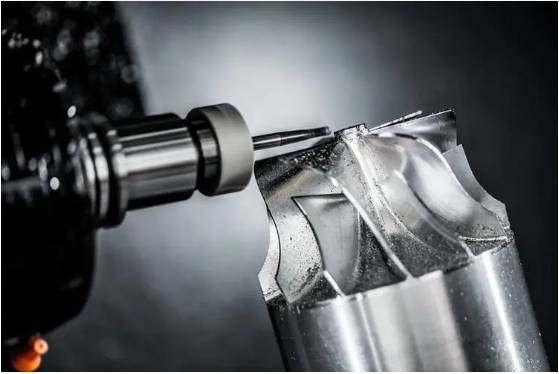

2. Tooling Inspection and Management
- Proper selection, inspection, and management of cutting tools are critical for achieving high-quality machined parts.
- Tools should be inspected for wear, damage, or defects before each use to ensure they meet quality standards and produce accurate cuts.
- Tool life management systems and predictive maintenance techniques can help optimize tool usage, minimize tool breakage, and maintain consistent machining performance.

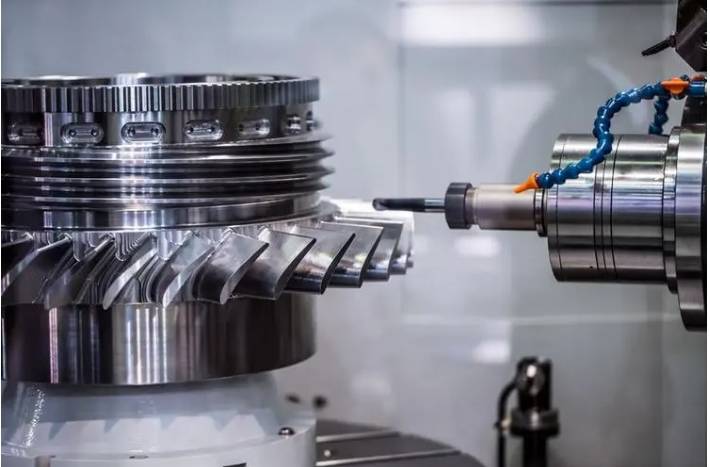

3. Workpiece Measurement and Inspection
- Precision measurement of workpieces is essential to verify dimensional accuracy, surface finish, and geometric tolerances.
- Coordinate measuring machines (CMMs), surface roughness testers, and optical inspection systems are commonly used for workpiece inspection.
- In-process measurement techniques, such as probing and laser scanning, enable real-time monitoring of machining operations and adjustment of process parameters to maintain quality.

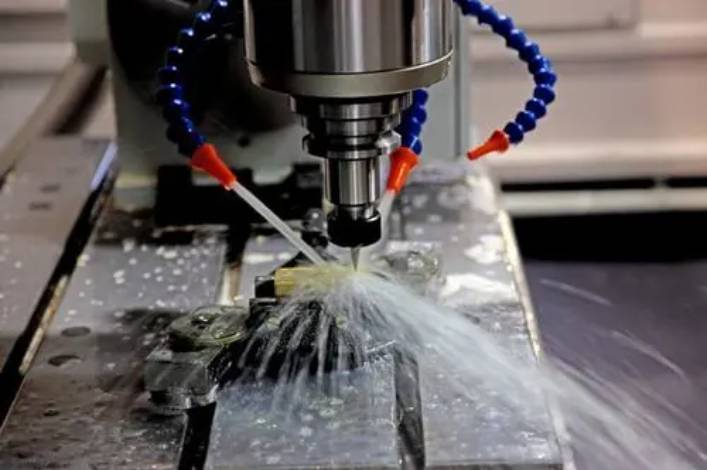

4. Process Monitoring and Control
- Continuous monitoring of machining parameters, such as cutting forces, spindle speed, feed rate, and coolant flow, helps detect deviations from desired performance and prevents machining defects.
- Closed-loop feedback systems and adaptive control algorithms can automatically adjust machining parameters based on real-time sensor data to optimize process stability and quality.
5. Quality Assurance Documentation
- Maintaining comprehensive documentation of CNC machining processes, including machine setup parameters, tooling specifications, inspection results, and quality control procedures, is essential for quality assurance and traceability.
- Quality control documents, such as inspection reports, process capability studies, and deviation logs, provide evidence of compliance with quality standards and regulatory requirements.
6. Operator Training and Skills Development
- Well-trained operators with proficient skills in CNC programming, machine operation, tool handling, and quality control techniques are essential for ensuring consistent and reliable machining outcomes.
- Ongoing training programs, skill assessments, and knowledge sharing initiatives help enhance operator competency and promote a culture of quality within the organization.
7. Root Cause Analysis and Continuous Improvement
- Implementing root cause analysis techniques, such as fishbone diagrams, 5 Whys, and failure mode and effects analysis (FMEA), helps identify and address underlying factors contributing to machining defects.
- Continuous improvement initiatives, such as lean manufacturing practices, Six Sigma methodologies, and Kaizen events, drive systematic process optimization, waste reduction, and quality enhancement.
Commonly Used Quality Control Tools in CNC Milling
This chart provides an overview of various tools used to ensure precision and quality in CNC milling processes.
| Tool | Purpose | Application |
| Calipers | Measure dimensions with high accuracy | Checking external and internal dimensions of parts |
| Micrometers | Measure precise dimensions | Measuring thicknesses, diameters, and depths |
| Height Gauges | Measure vertical dimensions and depth | Checking height, depth, and marking layouts |
| Dial Indicators | Measure small linear distances and detect deviations | Checking runout, flatness, and alignment |
| Gauge Blocks | Provide precise reference dimensions | Calibrating measurement tools and verifying sizes |
| Optical Comparators | Compare part features against a standard | Checking profiles, shapes, and features visually |
| Surface Plates | Provide a flat reference surface | Inspecting and measuring flatness and alignment |
| CMM (Coordinate Measuring Machine) | Measure exact coordinates in 3D space | Precise measurement of complex geometries |
| Probes | Measure specific features and dimensions | Used in conjunction with CMMs for detailed inspection |
| Tool Presetters | Measure and set tool dimensions and offsets | Ensuring tools are correctly sized and positioned |
| Laser Scanners | Capture detailed 3D shapes | Creating detailed 3D models and checking complex geometries |
Factors Impact on Selecting Right Quality Control Tools in CNC Milling
| Factor | Description |
| Accuracy | The precision of the tool in measuring dimensions and tolerances. |
| Repeatability | The ability of the tool to produce the same results under the same conditions repeatedly. |
| Compatibility | How well the tool integrates with existing CNC systems and software. |
| Measurement Range | The range of dimensions the tool can measure, ensuring it meets the requirements of the workpieces. |
| Resolution | The smallest increment the tool can detect, and critical for high-precision milling. |
| Ease of Use | How user-friendly the tool is, including setup, operation, and data interpretation. |
| Durability and Longevity | The tool’s resistance to wear and tear in CNC machining, ensures long-term reliability and performance. |
| Calibration | The frequency and ease of calibration required to maintain accuracy. |
| Cost | The overall cost of the tool, including initial purchase, maintenance, and potential downtime costs. |
| Data Output | The ability of the tool to provide detailed and useful data for analysis and documentation. |
| Speed | The time required to perform measurements, affecting overall workflow efficiency. |
| Brand and Support | The reputation of the manufacturer and the availability of technical support and service. |
| Environmental Tolerance | The tool’s ability to function accurately in different environmental conditions (e.g., temperature, humidity). |
| Versatility | The range of applications the tool can be used for, including different types of materials and geometries. |

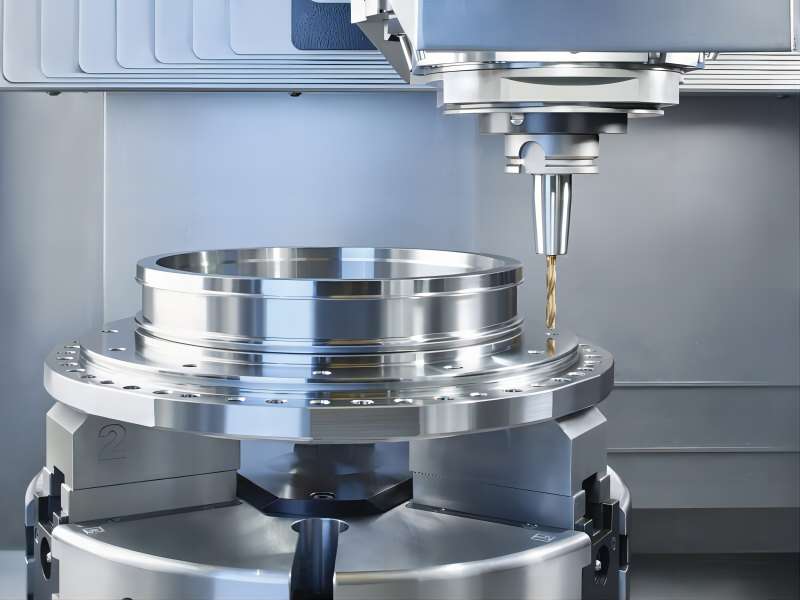

Benefits of Quality Control in CNC Milling
1. Precision and Accuracy
Quality control ensures that machined parts meet tight tolerances and specifications, resulting in precise and accurate components. This leads to improved product performance and reliability.
2. Consistency and Reliability
By minimizing variation and defects, quality control enhances the consistency and reliability of machined parts. Consistent quality builds trust with customers and reduces the likelihood of product failures or recalls.
2. Cost Reduction
Identifying and addressing quality issues early in the milling process reduces scrap, rework, and warranty costs. By minimizing waste and maximizing efficiency, quality control contributes to overall cost savings.
3. Process Optimization
Continuous monitoring and analysis of machining data enable process optimization. By identifying areas for improvement and implementing corrective actions, quality control drives efficiency, productivity, and competitiveness.
4. Customer Satisfaction
High-quality CNC machined parts lead to greater customer satisfaction. Meeting or exceeding customer expectations for quality strengthens relationships, enhances brand reputation, and promotes repeat business.
5. Compliance and Regulatory Requirements
Quality control helps ensure compliance with industry standards, regulations, and customer specifications. Meeting quality standards is essential for maintaining market access and regulatory compliance.
7. Continuous Improvement
Quality control fosters a culture of continuous improvement within the organization. By identifying opportunities for enhancement and implementing best practices, organizations can drive ongoing improvements in quality and performance.
In summary, from machine calibration to final inspection, every step in the CNC milling process contributes to ensuring the highest levels of quality and customer satisfaction. Quality control in CNC milling processes has been a driving force behind innovation, efficiency, and excellence.
