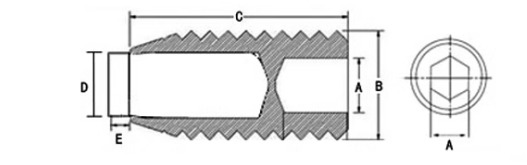

| Units:mm | ||||
| Thread diameter | A | B | D | E |
| M3 | 1.5 | M3*0.5 | 1.7 | 1 |
| M4 | 2 | M4*0.7 | 2.5 | 1.2 |
| M5 | 2.5 | M5*0.8 | 3 | 1 |
| M6 | 3 | M6*1.0 | 4 | 2 |
| M8 | 4 | M8*1.25 | 5 | 2 |
| M10 | 5 | M10*1.5 | 6 | 2 |
| M12 | 6.5 | M12*1.75 | 8 | 2 |
