Single-stage vs. Multi-stage Stamping Dies: How to Choose the Right Type

Stamping dies are used to shape or cut materials into desired forms. These dies are used in a wide range of industries, including automotive, electronics, and appliances. Stamping dies can be classified into two main types: single-stage and multi-stage dies. Each has distinct advantages, and the choice between the two largely depends on the specific requirements of the manufacturing process. This article focus on the topic of single-stage vs. multi-stage stamping dies, along with how to choose between the two types of stamping dies.

What Are Stamping Dies

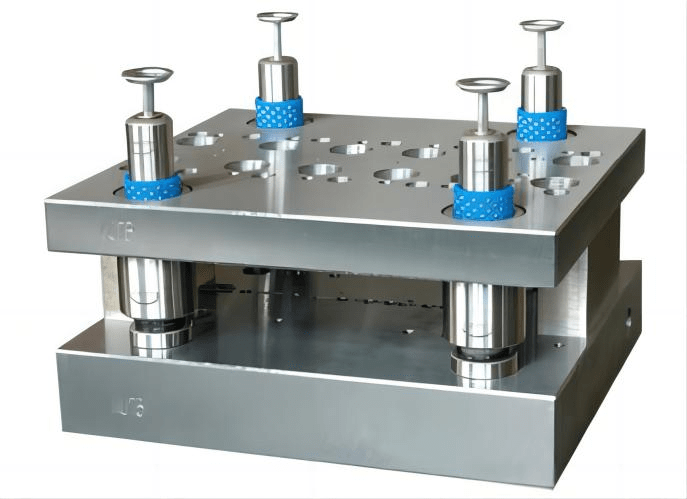

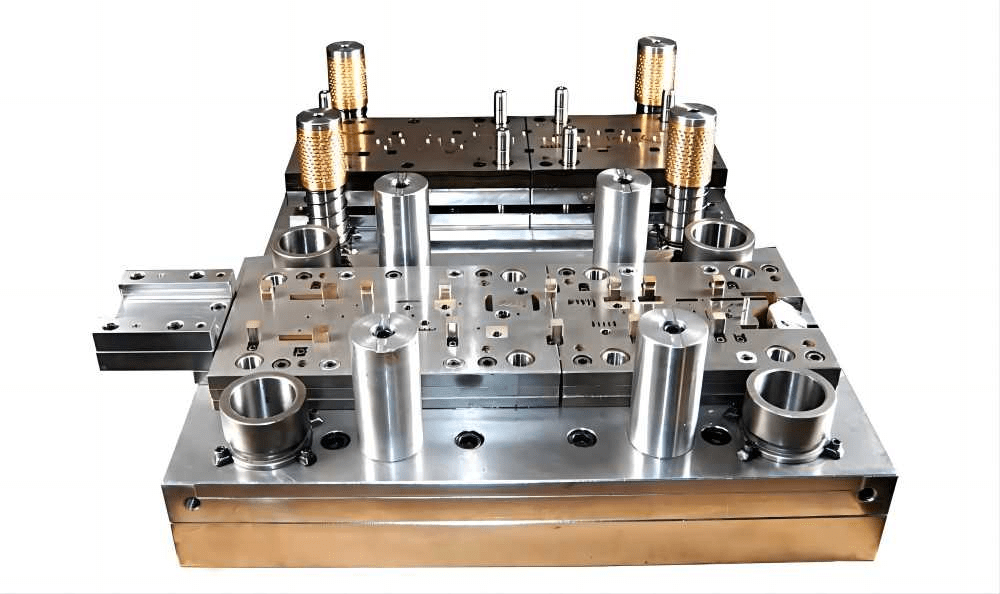

Before delving into the differences of single-stage and multi-stage stamping dies, it’s essential to understand what stamping dies are. A stamping die is a tool used to cut, form, or shape materials, primarily metal, by applying pressure to a work piece. The die is typically mounted in a stamping press , and the material is fed into the die for shaping. The precision of the die determines the quality of the whole metal stamping process, affecting final product’s accuracy, surface finish, and overall quality.

What are Single-stage Stamping Dies

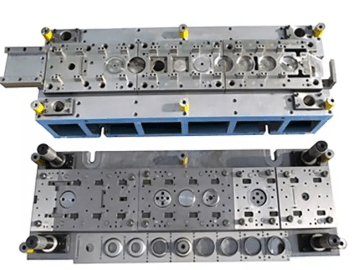

Single-stage stamping dies are tools used in manufacturing processes to perform a single operation during each press stroke. These dies are typically employed for simpler tasks such as cutting, punching, or forming parts. In a single-stage die, a workpiece is placed into the die, and the press applies force to perform the specific operation in one step, resulting in a finished part or a semi-finished part for further processing.

How them Work

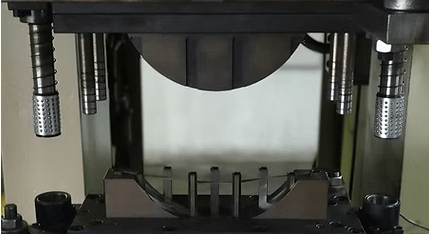

In a single-stage stamping die, the material is fed into the die, and a single stroke of the press performs one operation, such as shearing, blanking, or punching. The material is usually moved by a feeding mechanism, and the die is designed with only one set of tools, making the process straightforward. These dies are often used for parts that require only a single shaping process, such as cutting or simple hole punching.

Advantages

Simplicity: The design of single-stage dies is relatively simple and requires fewer components, making them easier to construct and maintain.
Cost-Effective: Due to their simpler design and lower number of steps involved, single-stage dies are less expensive to manufacture, making them ideal for small production runs or less complex parts.
Quick Setup: Setting up a single-stage die is faster compared to multi-stage dies. This can be particularly beneficial for prototyping or when producing small quantities of parts.
Less Maintenance: Fewer moving parts and simpler components mean that single-stage dies require less maintenance over time.

Applications

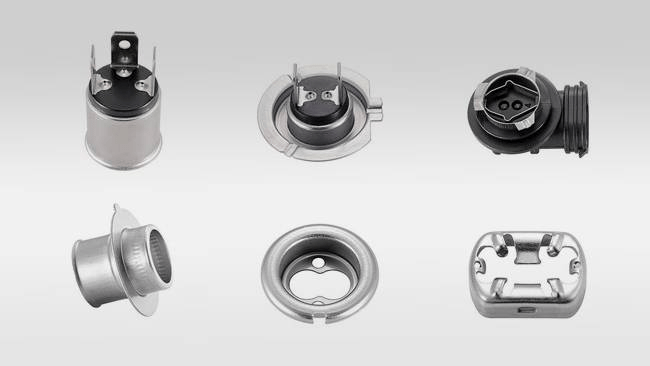

Single-stage stamping dies are commonly used in a variety of industries where simple, high-volume parts are needed. Some typical applications include:

Automotive Components: Parts like washers, brackets, and small connectors can be produced using single-stage stamping dies.
Consumer Electronics: Simple metal parts for electronics enclosures or components can be efficiently made with single-stage dies.
Appliance Manufacturing: Household appliance parts, such as frames and covers, often use single-stage dies for their production.
Prototyping: For new product designs or small production runs, single-stage dies are a fast and cost-effective solution.

What are Multi-stage Stamping Dies

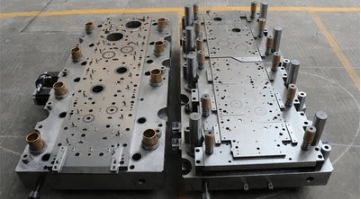

Multi-stage stamping dies are advanced tools used in manufacturing processes where multiple operations are required to produce a finished part. Unlike single-stage stamping dies, multi-stage dies perform several operations in one pass of the material through the die. These dies are designed with multiple sets of tools arranged in a series of stages, each stage performing a specific function, such as cutting, bending, punching, or forming, until the final shape is achieved.

How them Work

In a multi-stage stamping die, the material is fed through the die, which contains a series of stages that each perform a different operation. The part is progressively formed or shaped in each stage until it reaches its final shape. The workpiece is typically advanced from one stage to the next, with each stage adding a new feature or modifying the part. This process allows complex parts to be created in one continuous press cycle.

Each stage of the die is equipped with specialized tools for specific operations. For example:

First Stage: This could involve blanking, where the initial shape of the part is cut from the sheet metal.
Second Stage: A bending operation may follow, where the part is bent into the desired angle or shape.
Subsequent Stages: Additional operations, such as punching holes, trimming edges, or forming intricate features, may occur in later stages.

Advantages

Increased Efficiency: Since multiple operations are performed in one cycle, multi-stage dies can produce parts much faster than single-stage dies, especially when complex parts are involved.
Cost-Effective for High-Volume Production: Although the initial setup and tooling costs for multi-stage dies are higher, they become more cost-effective in the long run when used for high-volume production due to the reduced handling, fewer press cycles, and minimized downtime.
Complex Part Design: Multi-stage dies are ideal for manufacturing intricate, complex parts that would require multiple individual processes when using single-stage dies. Parts with deep forms, multiple bends, or a combination of cuts and holes are ideal candidates for multi-stage dies.
Consistency and Precision: The use of several operations in a single pass ensures high consistency and precision across all parts produced, making multi-stage dies ideal for mass production of components where uniformity is crucial.
Reduced Handling: The part progresses from one operation to the next without needing to be handled or repositioned, reducing the chance for errors or delays in production.

Applications

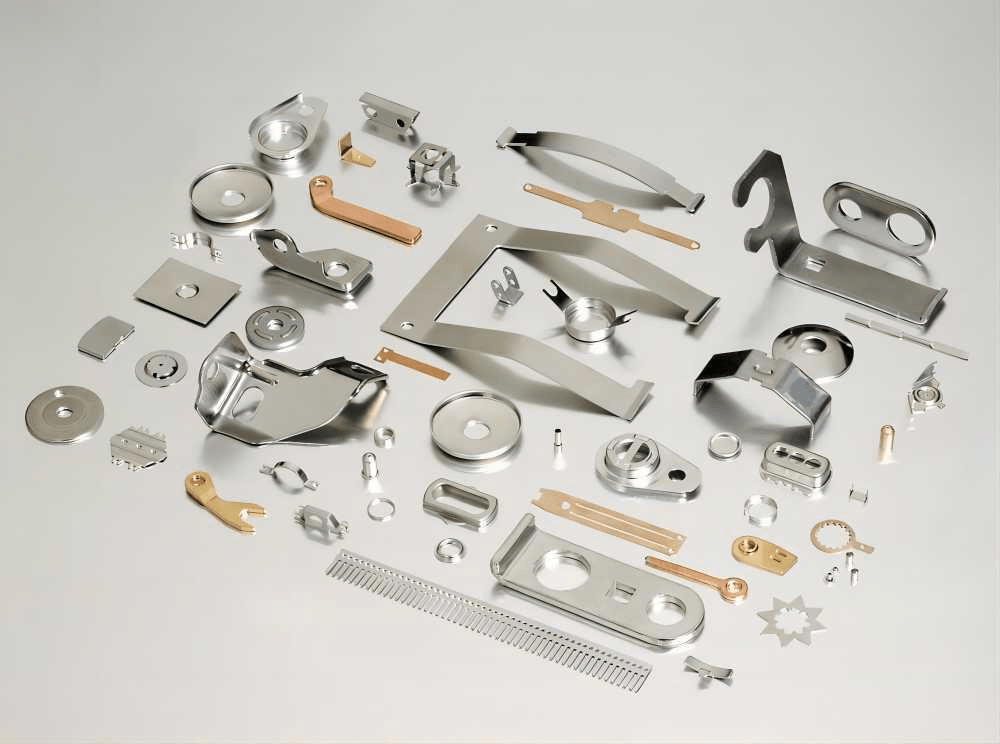

Multi-stage stamping dies are particularly useful in industries where complex and high-volume parts need to be produced.

Automotive Industry: Multi-stage dies are widely used to manufacture complex automotive components, such as body panels, brackets, and structural parts. These parts often require multiple steps like blanking, punching, and bending.
Electronics Manufacturing: Components for electronic devices that require precise, intricate shapes, such as connectors, enclosures, and housings, are often produced using multi-stage dies.
Aerospace: Aerospace parts often require high precision and the ability to handle complex geometries, making multi-stage stamping dies ideal for components such as aircraft brackets and structural parts.
Appliance Manufacturing: Household appliances, such as washing machines, refrigerators, and microwaves, often require parts with multiple bends, holes, and features, which are efficiently produced using multi-stage dies.

Key Differences Between Single-stage and Multi-stage Stamping Dies

This chart provides a clear comparison between single-stage and multi-stage stamping dies, making it easier to understand their respective advantages and limitations based on production needs.

Aspect	Single-stage Stamping Dies	Multi-stage Stamping Dies
Operation	Performs only one operation per press cycle.	Performs multiple operations in a sequence per press cycle.
Complexity	Best for simple parts with minimal features.	Ideal for complex parts requiring multiple forming steps.
Setup Time	Quicker setup time due to simpler design.	Longer setup time due to the complexity of multiple stages.
Tooling Costs	Generally lower tooling costs.	Higher tooling costs due to more complex die design.
Production Volume	Suitable for low to medium-volume production.	Best for high-volume, continuous production.
Precision	Suitable for parts with moderate precision requirements.	Offers higher precision and tighter tolerances.
Flexibility	More flexible for different part designs or short runs.	Less flexible, designed for high-volume production of similar parts.
Maintenance	Easier to maintain with fewer operations.	Requires more maintenance due to the number of operations.
Cycle Time	Slower cycle time for high-volume production.	Faster cycle time due to simultaneous multi-operation processes.
Tool Wear	Less wear on tools as fewer operations are involved.	Greater wear on tools due to multiple operations per cycle.

Key Considerations for Choosing Between Single-Stage and Multi-Stage Stamping Dies

1. Part Complexity

One of the most important factors in choosing between single-stage and multi-stage stamping dies is the complexity of the metal stamping part being produced.

Single-Stage Stamping Dies: These dies are best suited for producing simple parts that require only one operation, such as blanking, punching, or shearing. If the part does not have multiple bends, cuts, or intricate shapes, a single-stage die is sufficient to achieve the desired result in one pass.
Multi-Stage Stamping Dies: Multi-stage dies are designed for parts with more intricate designs. If the part requires a series of operations (such as cutting, bending, punching, or forming) to achieve the final shape, a multi-stage die is the better option. These dies allow several operations to be performed in sequence, reducing handling time and increasing precision.

Decision Tip: If the part is simple and involves a single operation, choose a single-stage die. For more complex parts with multiple features or forming requirements, multi-stage dies are more suitable.

2. Production Volume

Single-Stage Stamping Dies: Single-stage dies are well-suited for low to medium-volume production runs. They have a relatively quick setup time and are less costly to manufacture, making them ideal for smaller production quantities, prototypes, or custom parts.
Multi-Stage Stamping Dies: For high-volume production, multi-stage dies offer a significant advantage. They are designed to process large quantities of parts efficiently, reducing the time per cycle and allowing multiple operations to be completed in one press pass. As a result, they are more cost-effective for large-scale manufacturing.

Decision Tip: For small or medium runs, single-stage dies are ideal. For high-volume production, multi-stage dies are more cost-effective due to faster cycle times and reduced labor costs.

3. Tooling and Setup Costs

Tooling and setup costs are an important consideration, especially when evaluating the initial investment and time required to get the production line up and running.

Single-Stage Stamping Dies: These dies typically have lower initial tooling and setup costs. They require fewer components, making them easier and faster to produce, which is beneficial for manufacturers with limited budgets or shorter timelines.
Multi-Stage Stamping Dies: The tooling and setup costs for multi-stage dies are generally higher due to the complexity of the die design and the number of operations involved. It takes longer to set up and calibrate the die, but this cost is often offset by the higher production efficiency and lower per-unit costs for large runs.

Decision Tip: If minimizing initial investment is a priority, single-stage dies are the better choice. However, if long-term production efficiency is the focus, multi-stage dies offer a more cost-effective solution in the long run.

4. Precision and Tolerance Requirements

Some parts demand high precision and tight tolerances, especially when complex features need to align accurately across multiple operations.

Single-Stage Stamping Dies: These dies are suitable for parts that require moderate precision, but they are generally not the best option when parts require tight tolerances across multiple operations.
Multi-Stage Stamping Dies: Multi-stage dies are designed to achieve high precision and maintain consistent tolerances throughout the entire production run. Since the part moves through a series of stages in one press cycle, the chances for misalignment are minimized, ensuring uniformity across parts.

Decision Tip: For parts requiring tight tolerances or complex features, multi-stage dies provide superior precision and consistency.

5. Tool Wear and Maintenance

The rate of tool wear and maintenance requirements are also critical considerations when choosing between single-stage and multi-stage dies.

Single-Stage Stamping Dies: Single-stage dies generally experience less wear and tear since only one operation is being performed at a time. They are easier to maintain, and tool replacement is typically less frequent.
Multi-Stage Stamping Dies: Due to the higher number of operations involved, multi-stage dies tend to experience more wear on tools, especially when handling complex or high-strength materials. This leads to more frequent maintenance and tool replacements.

Decision Tip: For parts with lower complexity and where tool maintenance is a concern, single-stage dies are a more appropriate choice. However, multi-stage dies may still be the better option for high-volume production, even with higher maintenance needs.

6. Material Considerations

Single-Stage Stamping Dies: These stamping dies are effective for processing materials with consistent thicknesses and properties. They are ideal for softer or less complex materials that require simple cutting or shearing operations.
Multi-Stage Stamping Dies: Multi-stage dies are more effective for handling materials that require multiple forming operations, such as thicker or harder metals. They can handle materials that require bending, punching, or forming at various stages, making them suitable for more complex material types.

Decision Tip: For simpler or softer materials, single-stage dies are sufficient. However, if the material is thicker or requires several stages of forming, multi-stage dies are more appropriate.

7. Flexibility and Product Changeover

Manufacturers often need to adjust their production to accommodate different parts or designs, so flexibility is an important consideration.

Single-Stage Stamping Dies: These dies offer greater flexibility as they can be easily reconfigured or modified for different parts. They allow for quicker changeovers between part designs, making them suitable for smaller production runs or custom parts.
Multi-Stage Stamping Dies: Multi-stage dies are less flexible due to their complexity. Once a multi-stage die is set up, changing the part design or operation can require more time and effort. They are better suited for high-volume production runs of identical or similar parts.

Decision Tip: If frequent changes in part design are needed, single-stage dies provide more flexibility. Multi-stage dies are more suited for consistent, long-term production of similar parts.

Summary

Single-stage stamping dies are ideal for simpler, low-to-medium volume jobs, offering quick setup and lower initial costs.
Multi-stage stamping dies are designed for high-volume production of complex metal stamping parts, providing excellent efficiency, consistency and precision, but they come with higher initial setup costs and maintenance requirements.

Final Thoughts

Both single-stage and multi-stage stamping dies offer distinct advantages and are suited to different manufacturing needs. Understanding the specific requirements of the part, production volume, and cost constraints is crucial for choosing the most appropriate stamping die for your application. Through carefully considering these factors, manufacturers can ensure that they select the right tooling for their metal stamping operations, improving both efficiency and product quality.
