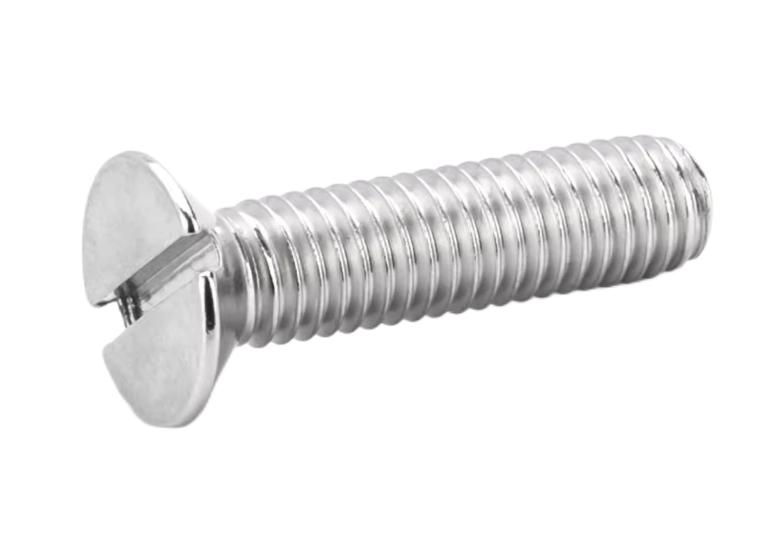

Slotted Countersunk Head Screw

  • Material: Stainless steel (304, 316 )
  • Finishing: Plain
  • Size: M1.6~M10
  • Processing type: Cold forge
  • Application: It is widely used in machinery, equipment, medical device, furniture, construction, and other industries.

Are You an OEM Manufacturer?

Yes

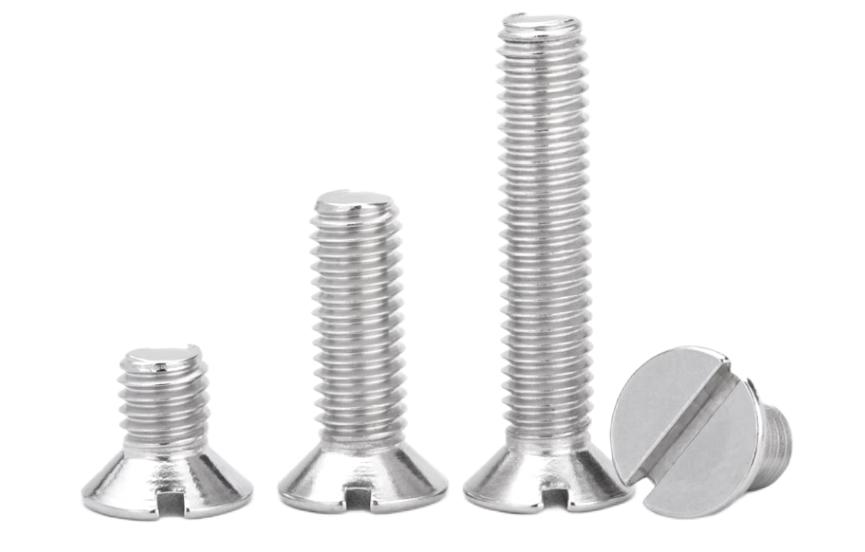

Specifications of Slotted Countersunk Head Screw

specifications of slotted countersunk head screw

Size:diameter (d) total length(L),(unit:mm)
Nominal diameter (d) Pitch(P)  head diameter (dk) Head thickness(k) slot width(n) slot depth (t)
max min max min max min
M1.6 0.35 3 2.7 1 0.6 0.46 0.5 0.32
M2 0.4 3.8 3.5 1.2 0.7 0.56 0.6 0.4
M2.5 0.45 4.7 4.4 1.5 0.8 0.66 0.75 0.5
M3 0.5 5.5 5.2 1.65 1 0.86 0.85 0.6
M3.5 0.6 7.3 6.94 2.35 1.2 1.06 1.2 0.9
M4 0.7 8.4 8.04 2.7 1.51 1.26 1.3 1
M5 0.8 9.3 8.94 2.7 1.51 1.26 1.4 1.1
M6 1 11.3 10.87 3.3 1.91 1.66 1.6 1.2
M8 1.25 15.8 15.37 4.65 2.31 2.06 2.3 1.8
M10 1.5 18.3 17.78 5 2.81 2.56 2.6 2

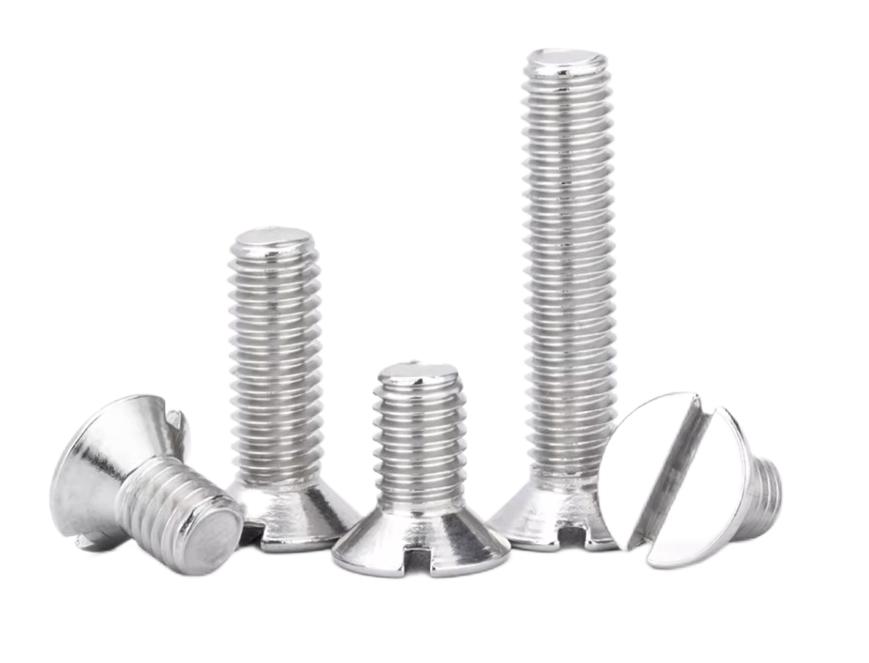

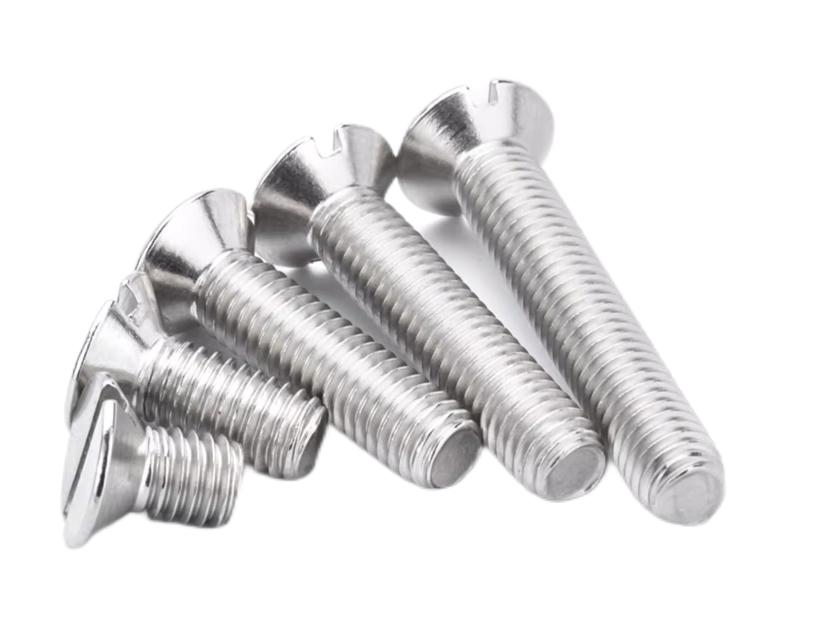

Custom Service of Slotted Countersunk Head Screw Provided by KENENG

Slotted countersunk head screws can be customized with good quality to win the trust of customers, with good service to meet customers, you can send us the sample or drawing .

Advantages of KENENG Slotted Countersunk Head Screw

  1. Thread is clear and smooth.
  2. Surface without burrs or sharp edges, smooth to use.
  3. A variety of specifications, can be customized.
  4. Corrosion resistance.

Materials we can use on Slotted Countersunk Head Screw
