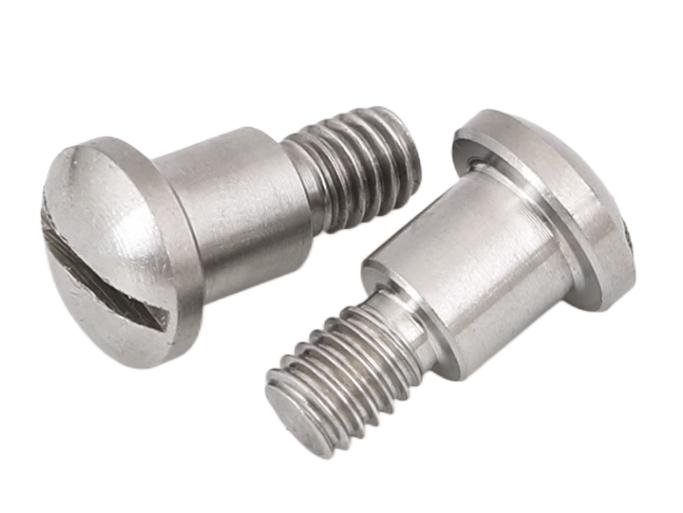

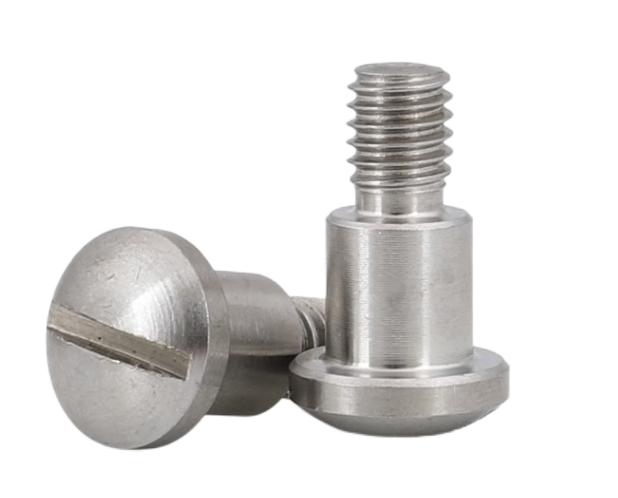

Slotted Oval Head Shoulder Screw

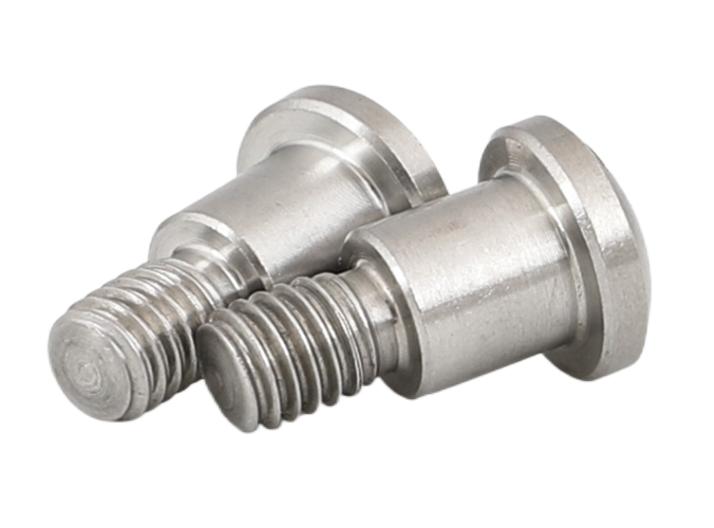

KENENG Slotted Oval Head Shoulder Screw
Slotted Oval Head Shoulder Screw Supplier
Slotted Oval Head Shoulder Screws
Slotted Oval Head Shoulder Screw
  • KENENG Slotted Oval Head Shoulder Screw
  • Slotted Oval Head Shoulder Screw Supplier
  • Slotted Oval Head Shoulder Screws
  • Slotted Oval Head Shoulder Screw
    • Product: Slotted Oval Head Shoulder Screw
    • Material: 304 Stainless steel
    • Finish: Plain
    • Applications: Electronic equipment, machinery, etc.
    • Manufacture Process: Forging

    Are You an OEM Manufacturer?

    Yes

    Specifications of Slotted Oval Head Shoulder Screw

    Nominal diameter(d) M1.6 M2 M2.5 M3 M4 M5 M6 M8 M10
    Pitch 0.35 0.4 0.45 0.5 0.7 0.8 1 1.25 1.5
    ds max  2.48 2.98 3.47 3.97 4.97 5.97 7.96 9.96 11.95
    min  2.42 2.92 3.395 3.895 4.895 5.895 7.87 9.87 11.84
    dk max  3.5 4 5 6 8 10 12 15 20
    min  3.2 3.7 4.7 5.7 7.64 9.64 11.57 14.57 19.48
    k max  1.2 1.6 1.8 2 2.8 3.5 4 5 6
    min  1.06 1.46 1.66 1.86 2.66 3.32 3.82 4.82 5.82
    n nominal  0.4 0.5 0.6 0.8 1 1.2 1.6 2 2.5
    min  0.46 0.56 0.66 0.86 1.26 1.26 1.66 2.06 2.56
    max 0.6 0.7 0.8 0.8 1.51 1.51 1.91 2.31 2.81
    t min  0.6 0.7 0.9 0.9 1.4 1.7 2 2.5 3
    b Tooth length  2.5 3 3.5 4 5 6 8 10 12
