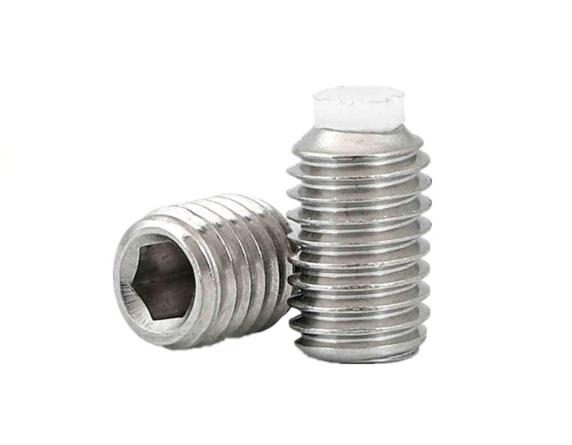

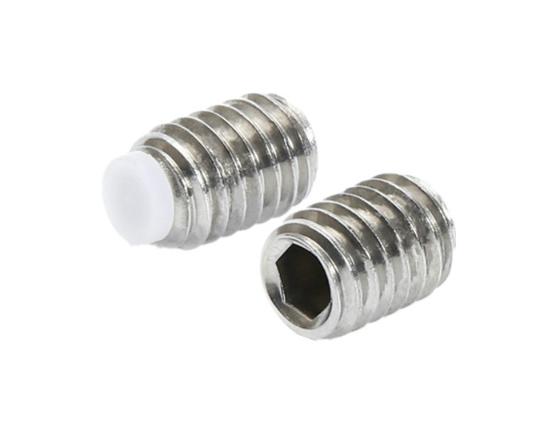

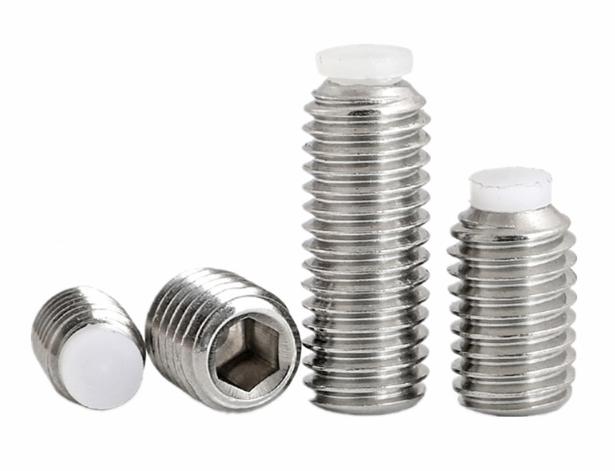

Socket Head Set Screw with Plastic End

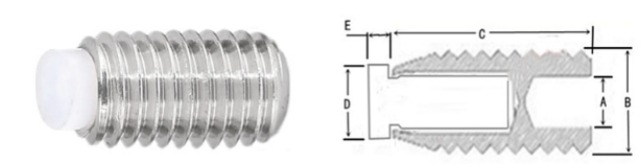

Specifications of Socket Head Set Screw with Plastic End
| Size | Parts Demensions(units:mm) | ||||
| A | B | C | D | E | |
| M3*8 | 1.5 | M3*0.5 | 8 | 1.7 | 1 |
| M4*10 | 2 | M4*0.7 | 10 | 2.5 | 1.2 |
| M5*12 | 2.5 | M5*0.8 | 12 | 3 | 1.5 |
| M6*12 | 3 | M6*1.0 | 12 | 4 | 2 |
| M8*16 | 4 | M8*1.25 | 16 | 5 | 2 |
| M10*16 | 5 | M10*1.5 | 16 | 6 | 2.5 |
| M12*20 | 6 | M12*1.75 | 20 | 8 | 2.5 |
| M16*25 | 8 | M16*2.0 | 25 | 12 | 3 |
Why Choose KENENG Socket Head Set Screw with Plastic End
1. High-quality material
2. Complete specifications, a variety of color options
3. No fracture, crack, rust, etc
Applications of Socket Head Set Screw with Plastic End
Socket head set screw with plastic end is widely used in model aircraft, hardware, lighting, toys, bathroom, furniture, medical, sports machinery and other purposes.
