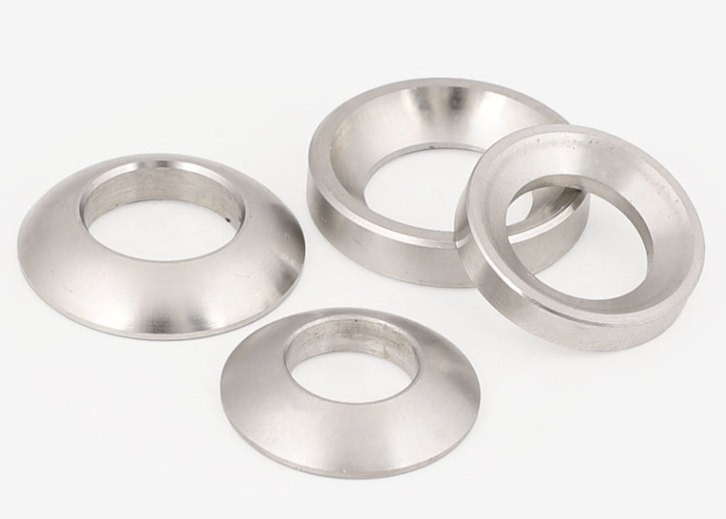

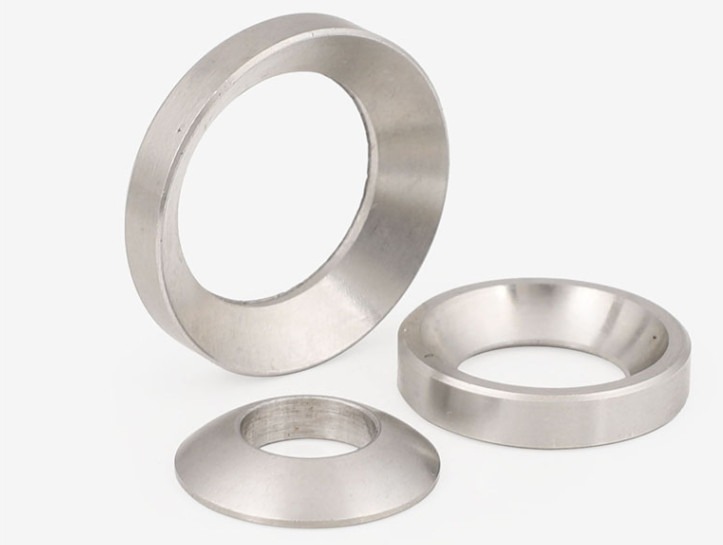

Custom Spherical Washer
Specifications of Spherical Washer
| d | d | dc | dc | h | h | d1 | |
| Specification | max | min | max | min | max | min | |
| 6 | 8.36mm | 8mm | 12.5mm | 12.07mm | 2.6mm | 2.35mm | 12mm |
| 8 | 10.36mm | 10mm | 17mm | 16.57mm | 3.2mm | 2.9mm | 16mm |
| 10 | 12.93mm | 12.5mm | 21mm | 20.48mm | 4mm | 3.7mm | 18mm |
| 12 | 16.43mm | 16mm | 24mm | 23.48mm | 4.7mm | 4.4mm | 23.5mm |
| 16 | 20.52mm | 20mm | 30mm | 29.48mm | 5.1mm | 4.8mm | 29mm |
| 20 | 25.52mm | 25mm | 37mm | 36.38mm | 6.6mm | 6.24mm | 34mm |
| 24 | 30.52mm | 30mm | 44mm | 43.38mm | 6.8mm | 6.44mm | 38.5mm |
| 30 | 36.62mm | 36mm | 56mm | 55.26mm | 9.9mm | 9.54mm | 45.2mm |
| 36 | 43.62mm | 43mm | 66mm | 65.26mm | 14.3mm | 13.87mm | 64mm |
| 42 | 50.62mm | 50mm | 78mm | 77.26mm | 14.4mm | 13.97mm | 69mm |
| 48 | 60.72mm | 60mm | 92mm | 91.13mm | 17.4mm | 16.97mm | 78.6mm |
Applications of Spherical Washer
Advantages of KENENG Custom Spherical Washer
We produce a wide range of products at reasonable prices, and ensure product quality.
KENENG can produce fasteners including: screws, studs, nuts, flat washers and rivets of various specifications. Various non-standard CNC parts, stamping parts, injection molding parts, nylon screws, nylon nuts, nylon studs, etc.
Ordering process of Lathe parts (non standard parts): Receive CAD or 3D design → Quotation → Signing Pi → Receive deposit → Make sample, approval by customer → Mass production → Receive Balance → Delivery
