Spring Cotters

Material: : stainless steel 304 ,316 ,316L, Carbon steel
Size: φ1~φ6

Are You an OEM Manufacturer?

Yes

Description

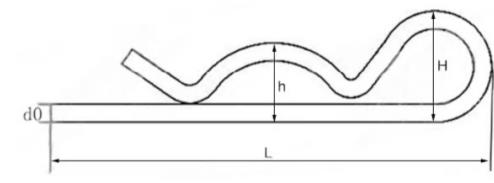

Specifications of Spring Cotters

Specifications	do	h	H	L	Thousand pieces of weight	L1
1*17	1	3.5	5.1	16.7	0.23kg	7.6
1.2*21	1.18	4.26	6.65	21.17	0.41kg	9.2
1.2*25	1.14	4.41	8	24.8	0.48kg	10.5
1.6*28	1.56	5.5	8.57	28.3	0.95kg	12.5
1.8*32	1.74	6.13	10.52	31.94	1.38kg	12.38
1.8*35	1.75	6.23	10.42	35.5	1.53kg	14.7
1.8*37	1.75	6.44	12.95	37.73	1.68kg	15
2*30	1.98	5.97	9.5	30	1.6kg	12
2*40	1.94	7.39	13.02	40.32	2.24kg	16.52
2*45	1.98	7.67	13.88	44.18	2.35kg	16.9
2*50	1.94	7.82	14.65	50.1	4.2kg	18.84
2.5*45	2.47	7.70	14.17	45.16	3.76kg	18.84
2.5*50	2.47	8.55	17.21	50	4.5KG	21
2.8*50	2.73	9.7	15.37	50.8	5.3kg	21.35
3*60	2.98	9.96	20.3	60.13	7.2kg	23.65
3*65	3	10.52	20.8	65.4	7.85kg	25
3.5*75	3.5	11.75	24.64	74.7	12.2kg	29.38
4*75	3.94	13	25.66	75.4	16.5kg	28.3
4*85	3.91	14.13	29.28	86	18.95kg	34.6
5*100	4.94	16.48	35.37	101	33.4kg	39.92
6*120	5.81	21.73	39.45	120	54.8kg	45

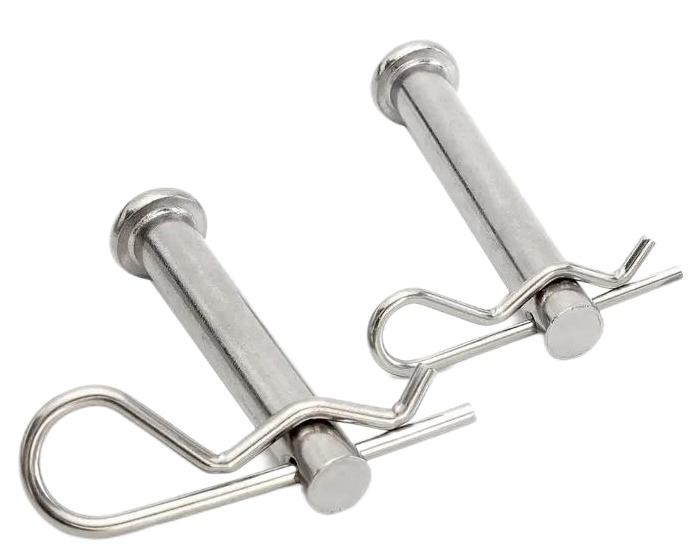

Applications of Spring Cotters

Spring cotter pins are widely used in a variety of mechanical equipment and devices, such as automobiles, furniture, electronic equipment and other fields, commonly used to connect and fix components, adjust the position.
