Spring Positioning Ball

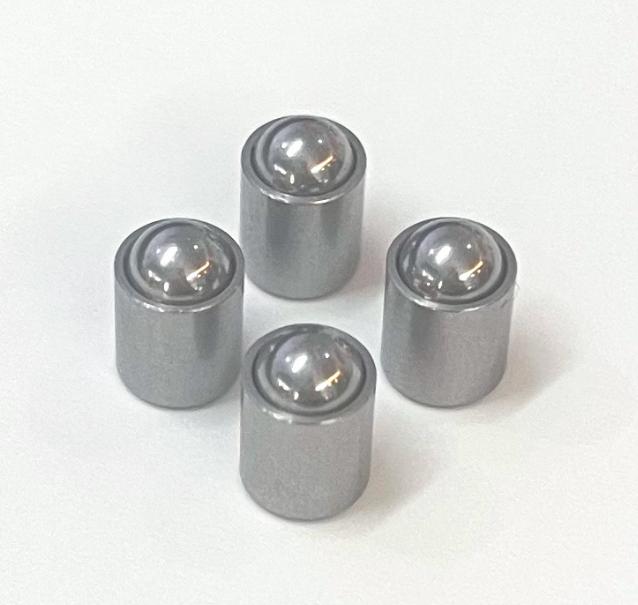

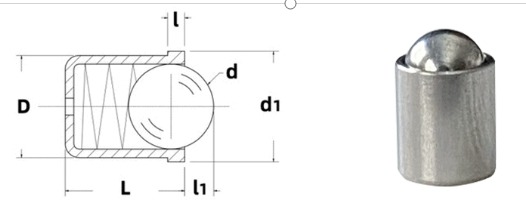

Specifications of Spring Positioning Ball
| unit:mm | |||||||
| Specifications | Outer diameter of shell(D) | Length of shell(L) | Outer diameter of shoulder(d1) | Shoulder thickness(l) | stroke(l1) | Ball diameter(d) | Common spring force value(N) |
| D3X4 | 3 | 4 | 3.5 | 0.8 | 0.85 | 2.38 | 6N/10N/15N/20N |
| D4X5 | 4 | 5 | 4.5 | 0.8 | 1.05 | 3 | 5N/10N/15N/20N/25N |
| D5X6 | 5 | 6 | 5.5 | 1 | 1.35 | 4 | 10N/25N/35N |
| D6X7 | 6 | 7 | 6.5 | 1 | 1.9 | 5 | 15N/30N/45N |
| D8X9 | 8 | 9 | 8.5 | 1.35 | 2.35 | 6 | 12N/27N/40N/70N |
| D10X13 | 10 | 13 | 11 | 2 | 3.2 | 8 | 27N/40N/70N |
| D12X16 | 12 | 16 | 13 | 2 | 3.5 | 10 | 27N |
Superior Features of Spring Positioning Ball
- The shell head is smooth and beautiful. After the positioning bead is pressed into the work piece, only the bead is exposed, making the overall appearance of the product smooth and beautiful.
- CNC machining. The second generation of CNC machining shell size is more stable (tolerance is as fine as +0.03mm), which solves the installation efficiency problem caused by the large size tolerance of the first generation cold heading shell that cannot effectively match the installation hole.
- Can be customized upon customers’ request.
Materials we can use on Spring Positioning Ball
Applications of Spring Positioning Ball
Spring Positioning Ball is a combination of bare shell, ball and spring. It is now widely used in lighting, electronic appliances, mold fixtures, mechanical equipment, furniture, door locks, accessories, packaging, medical equipment, decoration and other industries.
