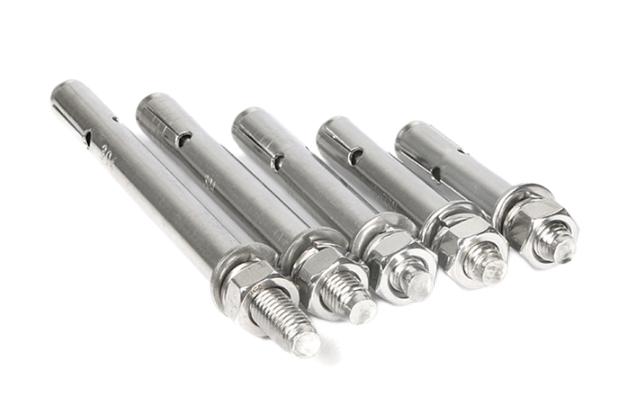

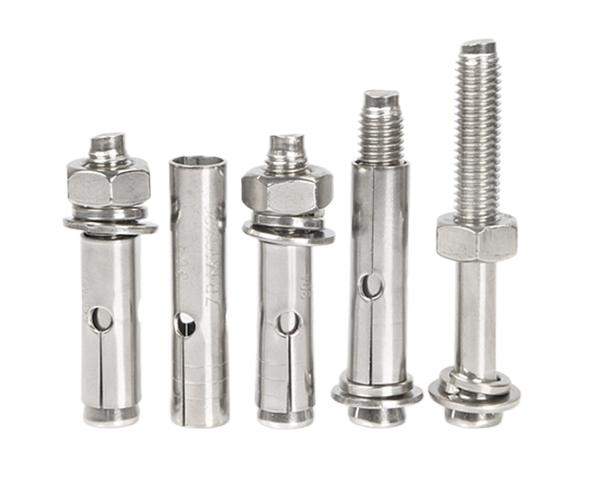

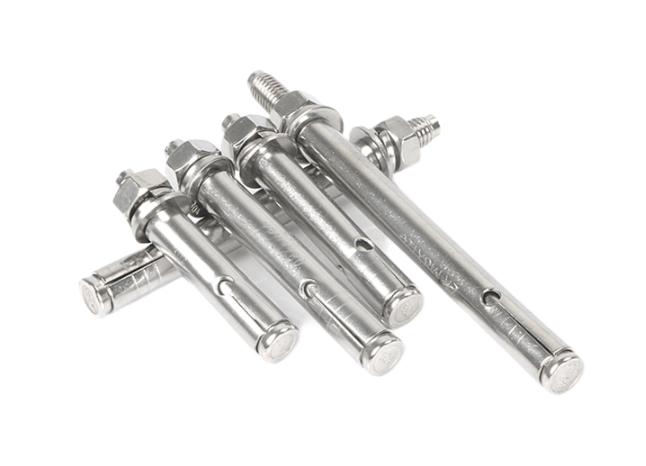

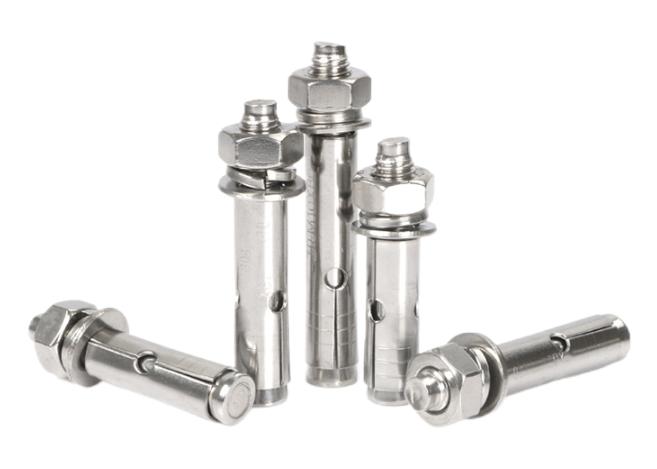

Stainless Steel Anchor Bolt
Specifications of Stainless Steel Anchor Bolt
| Specifications | Parameter | drill bit type | |||
| Total length(L) | Sleeve length (L1) | Screw diameter(D) | Casing diameter(d) | ||
| M6*50 | 50 | 35 | 6 | 8 | Φ8 |
| M6*60 | 60 | 40 | 6 | 8 | |
| M6*70 | 70 | 50 | 6 | 8 | |
| M6*80 | 80 | 60 | 6 | 8 | |
| M6*100 | 100 | 80 | 6 | 8 | |
| M8*60 | 60 | 40 | 8 | 10 | Φ10 |
| M8*70 | 70 | 50 | 8 | 10 | |
| M8*80 | 80 | 60 | 8 | 10 | |
| M8*90 | 90 | 70 | 8 | 10 | |
| M8*100 | 100 | 75 | 8 | 10 | |
| M8*120 | 120 | 95 | 8 | 10 | |
| M8*150 | 150(lengthening) | 120 | 8 | 10 | |
| M10*60 | 60 | 35 | 10 | 12 | Φ12 |
| M10*70 | 70 | 45 | 10 | 12 | |
| M10*80 | 80 | 55 | 10 | 12 | |
| M10*90 | 90 | 65 | 10 | 12 | |
| M10*100 | 100 | 75 | 10 | 12 | |
| M10*110 | 110 | 85 | 10 | 12 | |
| M10*120 | 120 | 90 | 10 | 12 | |
| M10*150 | 150(lengthening) | 120 | 10 | 12 | |
| M12*80 | 80 | 50 | 12 | 15 | Φ16 |
| M12*90 | 90 | 60 | 12 | 15 | |
| M12*100 | 100 | 70 | 12 | 15 | |
| M12*110 | 110 | 80 | 12 | 15 | |
| M12*120 | 120 | 90 | 12 | 15 | |
| M12*150 | 150(lengthening) | 120 | 12 | 15 | |
| M12*200 | 200(lengthening) | 150 | 12 | 15 | |
| M14*80 | 80 | 55 | 14 | 18 | Φ18 |
| M14*100 | 100 | 60 | 14 | 18 | |
| M14*120 | 120 | 80 | 14 | 18 | |
| M14*150 | 150(lengthening) | 100 | 14 | 18 | |
| M14*200 | 200(lengthening) | 150 | 14 | 18 | |
| M16*80 | 80 | 55 | 16 | 20 | Φ20 |
| M16*100 | 100 | 60 | 16 | 20 | |
| M16*120 | 120 | 80 | 16 | 20 | |
| M16*150 | 150(lengthening) | 100 | 16 | 20 | |
| M16*200 | 200(lengthening) | 150 | 16 | 20 | |
| M20*120 | 120 | 80 | 20 | 25 | Φ25 |
| M20*150 | 150(lengthening) | 100 | 20 | 25 | |
| M20*200 | 200(lengthening) | 150 | 20 | 25 | |
| M20*250 | 250(lengthening) | 185 | 20 | 25 | |
Advantages of KENENG Stainless Steel Anchor Bolt
KENENG produces a wide range of products at reasonable prices and ensure product quality.
KENENG can produce fasteners including: screws, studs, nuts, flat washers and rivets of various specifications. Various non-standard CNC parts, stamping parts, injection molding parts, nylon screws, nylon nuts, nylon studs, etc.
Ordering process of Lathe parts (non standard parts): Receive CAD or 3D design → Quotation → Signing Pi → Receive deposit → Make sample, approval by customer → Mass production → Receive Balance → Delivery
Packing:
Small box + carton + pallet, or according to customer requirements
Applications of Stainless Steel Anchor Bolt
Stainless steel anchor bolt is generally used in engineering construction, bridges, ships and automobiles. Due to the small drilling, large tension, more beautiful after use, expansion screws can be removed when not in use, and it can also keep the wall flat, is a convenient and practical small thing, so it is widely used in various decoration occasions.
