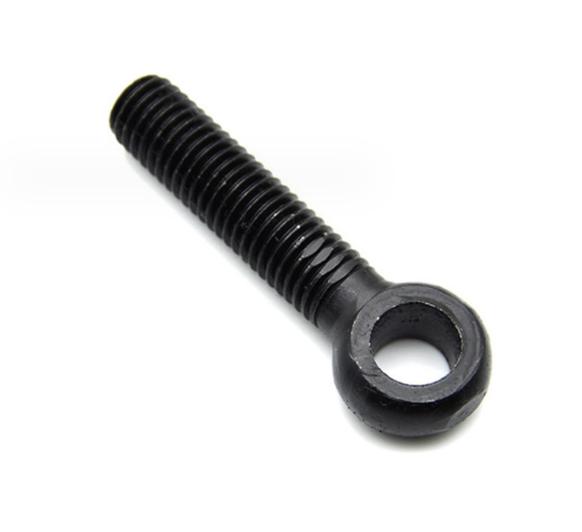

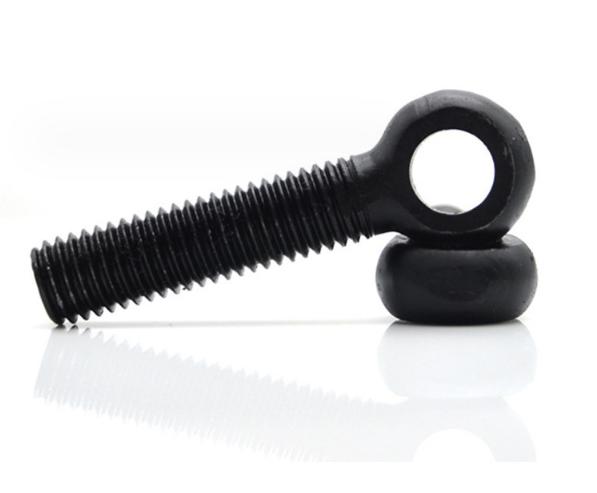

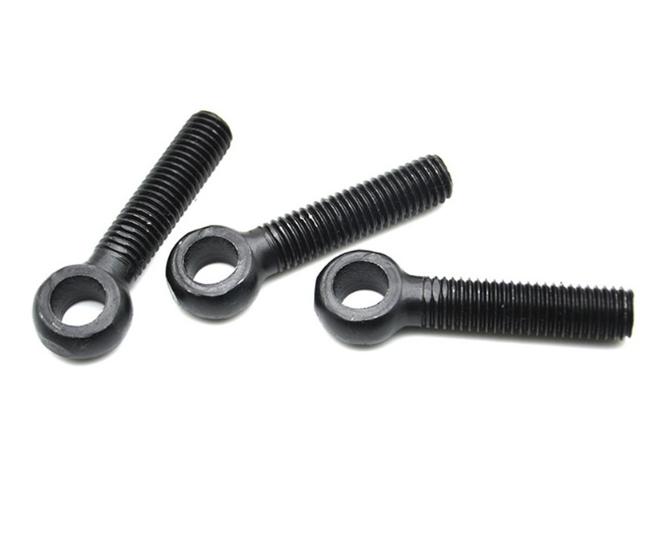

Swing Bolts

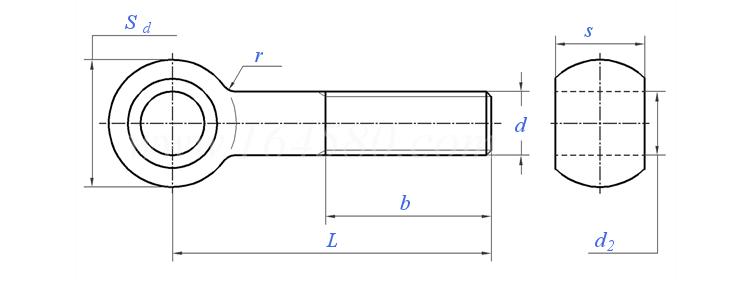

Specifications Of Swing Bolts
|
thread specification d |
M5 | M6 | M8 | M10 | M12 | M16 | M20 | M24 | (M27) | ||
| P | Pitch | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2.5 | 3 | 3 | |
| b | Ls125 | 16 | 18 | 22 | 26 | 30 | 38 | 46 | 54 | 60 | |
| 125<L≤200 | _ | _ | 28 | 32 | 36 | 44 | 52 | 60 | 66 | ||
| L>200 | _ | _ | _ | _ | 49 | 57 | 65 | 73 | 79 | ||
| d2 | Min=nominal | 5 | 6 | 8 | 10 | 12 | 16 | 18 | 22 | 24② | |
| Max | 5.03 | 6.03 | 8.036 | 10.036 | 12.043 | 16.043 | 18.043 | 22.052 | 24.052 | ||
| Sd | Max | 12 | 14 | 18 | 20 | 25 | 32 | 40 | 45 | 50 | |
| A Type | Min | 10.9 | 12.9 | 16.9 | 18.7 | 23.7 | 30.4 | 38.4 | 43.4 | 48.4 | |
| B and C Types | Min | 11.57 | 13.57 | 17.57 | 19.48 | 24.48 | 31.38 | 39.38 | 44.38 | 49.38 | |
| r | Nominal | 2.5 | 4 | 4 | 4 | 6 | 6 | 6 | 10 | 10 | |
| Max | 3.75 | 6 | 6 | 6 | 9 | 9 | 9 | 15 | 15 | ||
| Min | 1.875 | 3 | 3 | 3 | 4.5 | 4.5 | 4.5 | 7.5 | 7.5 | ||
| s | A Type | Max | 8 | 9 | 11 | 14 | 17 | 19 | 24 | 28 | 30 |
| Min | 7.52 | 8.52 | 10.3 | 13.3 | 16.3 | 18.16 | 23.16 | 27.16 | 29.16 | ||
| B and C Types | Max | 6 | 7 | 9 | 12 | 14 | 17 | 22 | 25 | 27 | |
| Min | 5.88 | 6.85 | 8.85 | 11.82 | 13.82 | 16.82 | 21.79 | 24.79 | 26.79 | ||
Applications of Swing Bolts
Swing bolts, also known as eye bolts, are mostly used in occasions or tooling that need to be frequently disassembled and connected.
Swing bolts are widely used in low temperature and high-pressure valves, pressure pipelines, fluid engineering, oil drilling equipment, and oil fields In equipment and other fields, it is often used on occasions or tools such as the valve industry, folding bicycles, and baby carriages where the connection is disassembled.
